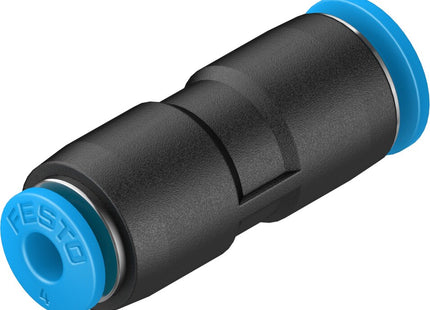

MODEL- STRAIGHT CONNECTOR ML QS-6-4

Description

Technical Data

  • SizeStandard
  • Nominal size2.8 mm
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Ambient temperature-10 °C ... 80 °C
  • Product weight6.4 g
  • Pneumatic connection, port 1For tubing outside diameter of 6 mm
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm
  • Colour of release ringBlue
  • Note on materialsRoHS-compliant
  • Material housingPBT
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel

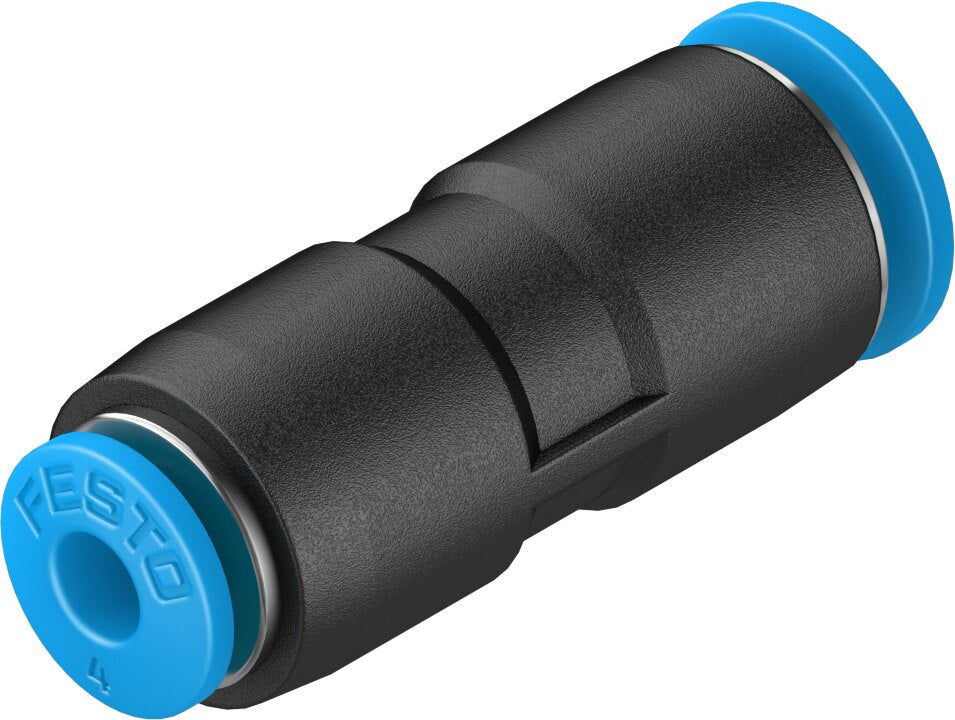

MODEL- STRAIGHT CONNECTOR ML QS-6-4

Product form

Technical Data SizeStandard Nominal size2.8 mm Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095... Read more

Rs. 116.00 Excl. VAT

  • Shipped today? Order within: Apr 03, 2026 17:00:00 -0400

    Description

    Technical Data

    • SizeStandard
    • Nominal size2.8 mm
    • Mounting positionoptional
    • DesignStraight design
    • Size of pack10
    • DesignPush-pull principle
    • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
    • Operating pressure complete temperature range-0.95 bar ... 6 bar
    • Operating pressure complete temperature range-13.775 psi ... 87 psi
    • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
    • Temperature-dependent operating pressure-0.95 bar ... 14 bar
    • Temperature-dependent operating pressure-13.775 psi ... 203 psi
    • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
    • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
    • Note on operating and pilot mediumLubricated operation possible
    • Corrosion resistance class CRC1 - Low corrosion stress
    • LABS (PWIS) conformityVDMA24364-B1/B2-L
    • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
    • Ambient temperature-10 °C ... 80 °C
    • Product weight6.4 g
    • Pneumatic connection, port 1For tubing outside diameter of 6 mm
    • Pneumatic connection, port 2For tubing outside diameter of 4 mm
    • Colour of release ringBlue
    • Note on materialsRoHS-compliant
    • Material housingPBT
    • Material release ringPOM
    • Material tubing sealNBR
    • Material tubing clamp componentHigh-alloy stainless steel
