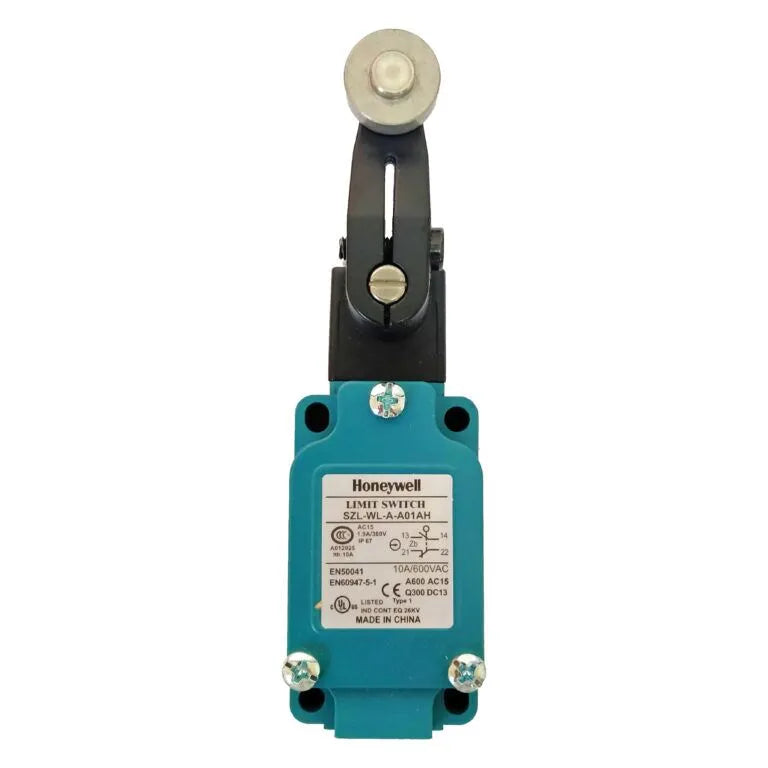

MODEL- SZL-WL-A-A01AH LIMIT SWITCH, HONEYWELL

Description

Product Details:

Product Description
Brand Honeywell
Model No. SZL-WL-A-A01AH
Standard EN50041
Enclosure Metal
Electrical Rating AC 15 A600



DC 13 Q300
Contact Type Snap Action 1NC/1NO
Shock/ Vibration 10g/ 50g
Operating Humidity <95% RH
Operating Temperature -25~+120°C
Mechanical life 10,000,000 operations
Operating Speed 0.05mm~2m/s
Operating Frequency 120 ops/min
Contact Resistance <25mΩ
Degree Of Protection IP67
Dielectric Strength 2500V
Electrical Life 5 x 105
Conduit 1/2 NPT
Head 80° Rotated Angle
COO China

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.



MODEL- SZL-WL-A-A01AH LIMIT SWITCH, HONEYWELL

Product form

Product Details: Product Description Brand Honeywell Model No. SZL-WL-A-A01AH Standard EN50041 Enclosure Metal Electrical Rating AC 15 A600   DC... Read more

Rs. 1,300.00 Excl. VAT

  • Shipped today? Order within: Jul 04, 2026 17:00:00 -0400

    Description

    Product Details:

    Product Description
    Brand Honeywell
    Model No. SZL-WL-A-A01AH
    Standard EN50041
    Enclosure Metal
    Electrical Rating AC 15 A600



    DC 13 Q300
    Contact Type Snap Action 1NC/1NO
    Shock/ Vibration 10g/ 50g
    Operating Humidity <95% RH
    Operating Temperature -25~+120°C
    Mechanical life 10,000,000 operations
    Operating Speed 0.05mm~2m/s
    Operating Frequency 120 ops/min
    Contact Resistance <25mΩ
    Degree Of Protection IP67
    Dielectric Strength 2500V
    Electrical Life 5 x 105
    Conduit 1/2 NPT
    Head 80° Rotated Angle
    COO China

    Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
