| Brand |
Autonics |
| Model no |

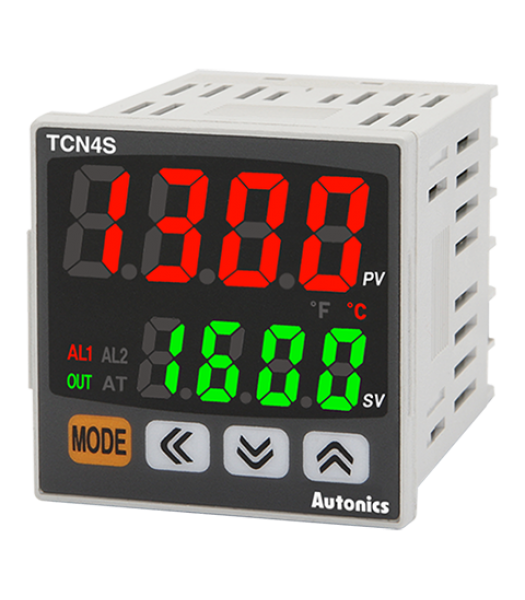

TCN4S-24R |
| Size |
S DIN W48×H48mm |
| Control output |
R: Relay contact output + SSRP output (AC Power)
Relay contact output + SSR output (AC/DC Power)
|
| Power supply |
2 24VAC 50/60Hz, 24-48 VDC
4 100-240VAC 50/60Hz
|
| Power consumption |
AC Power Max. 5VA(100-240VAC 50/60Hz)
AC/DC Power Max. 5VA(24VAC 50/60Hz), Max.3W( 24-48 VDC)
|
| Sampling period |
100ms |
| Display type |
24-48 VDC |
| Control type |
ON/OFF, P, PI, PD, PID Control |
| Hysteresis |
1 to 100 (0.1 to 50.0) ℃/℉ |
| Proportional band (P) |
0.1 to 999.9 ℃/℉ |
| Mechanical Life |
OUT: Over 5,000,000 times, AL 1/2: Over 5,000,000 times |
| Electrical Life |
OUT: Over 200,000 times (250VAC 3A resistive load)
AL 1/2: Over 300,000 times (250VAC 1A resistive load)
|
| Dielectric strength |
AC Power 2,000VAC 50/60Hz 1min.(between input terminal and power terminal)
AC/DC Power 1,000VAC 50/60Hz 1 min.(between input terminal and power terminal)
|
| Vibration |
0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Insulation resistance |
≥ 100 MΩ (500 VDCmegger) |
| Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
| Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
