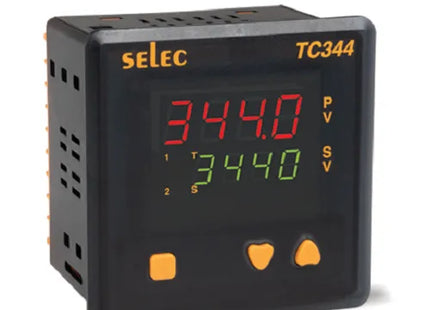

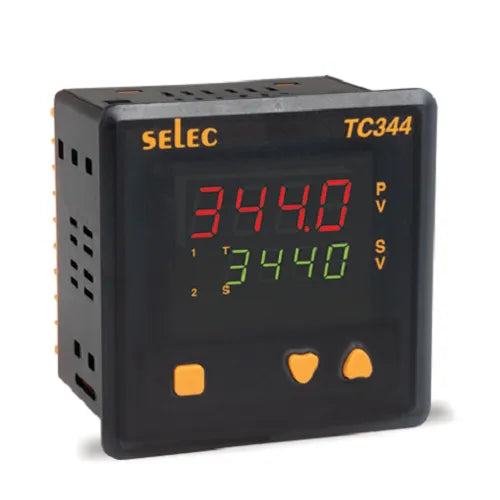

Name: MODEL- TEMPRATURE CONTROLLER PART NO TC-344 MAKE-SELEC
Brand: Industry Baba
Price: 1630.0 INR
Availability: InStock

MODEL- TEMPRATURE CONTROLLER PART NO TC-344 MAKE-SELEC

Product form

Control Type PID/On-Off Brand Selec Model No. TC344 Size 96 x 96 mm Input Type RTD, Thermocouple Control output Type... Read more

Rs. 1,630.00 Excl. VAT

Control Type	PID/On-Off
Brand	Selec
Model No.	TC344
Size	96 x 96 mm
Input Type	RTD, Thermocouple
Control output Type	Relay/SSR
Mounting Type	Panel
Accuracy	For TC 0.25% of F.S
Display Type	4 Digit/7 Segment
Voltage	90-270 VAC/DC
Frequency	50/60 Hz
Sampling Time	250 ms
Display	Dual Display,4 digit,7 segment LED
Inputs	Thermocouple (J,K,T,R,S) / RTD (Pt100)
Input Filter	FTC 0.2 to 10.0 sec
Resolution	0.1/1 Degree for TC/RTD inputs o (fixed 1 Degree for R & S type TC input)
Temperature Unit	Degree C/Degree F selectable
Proportional Band	1.0 to 400.0 Degree C
Integral Time	0 to 9999 sec
Derivative Time	0 to 9999 sec
Cycle Time	0.1 to 99.9 sec
Hysteresis Width	0.1 to 99.9 Degree C
Manual Reset Value	-19.9 to 19.9 Degree C
Availability	In Stock
