Name: MODEL- TIMER,600XU,SELEC
Brand: Industry Baba
Price: 1003.0 INR
Availability: InStock

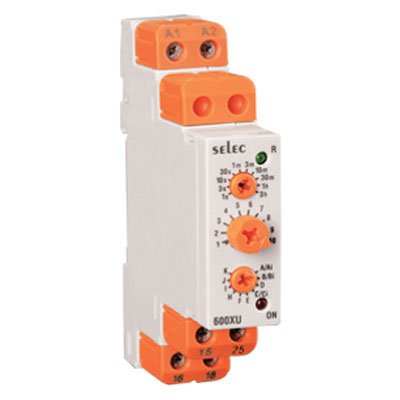

MODEL- TIMER,600XU,SELEC

Product form

Specifications Operating Modes On Delay, Interval, Cyclic equal OFF first, Cyclic equal ON first, Pulse output (50msec), Delay on Break,... Read more

Rs. 1,003.00 Excl. VAT

Operating Modes	On Delay, Interval, Cyclic equal OFF first, Cyclic equal ON first, Pulse output (50msec), Delay on Break, Delay on Make/ Delay on Break, Interval after Break, Single shot, Retriggerable single shot, Latching relay, Delay on make with totalise, Interval with totalise
Range	0.1-1 sec/min/hr, 0.3-3 sec/min/hr, 1-10 sec/min, 3-30 sec/min
Resolution	0.1 sec
Accuracy	Setting: ± 5% of F.S., Repeat: ± 0.5% (Full Scale), Pause Time Accuracy: ± 5% , ± 5ms
Relay Contact	1C/O SPDT
Contact Rating	5A @ 250V AC or 24V DC
Supply Voltage	20 to 240V AC, 12 to 240V DC
Size	17.5mm
Mounting Type	DIN Rail Mount
Certification	CE, UL

Operating Modes	On Delay, Interval, Cyclic equal OFF first, Cyclic equal ON first, Pulse output (50msec), Delay on Break, Delay on Make/ Delay on Break, Interval after Break, Single shot, Retriggerable single shot, Latching relay, Delay on make with totalise, Interval with totalise
Range	0.1-1 sec/min/hr, 0.3-3 sec/min/hr, 1-10 sec/min, 3-30 sec/min
Resolution	0.1 sec
Accuracy	Setting: ± 5% of F.S., Repeat: ± 0.5% (Full Scale), Pause Time Accuracy: ± 5% , ± 5ms
Relay Contact	1C/O SPDT
Contact Rating	5A @ 250V AC or 24V DC
Supply Voltage	20 to 240V AC, 12 to 240V DC
Size	17.5mm
Mounting Type	DIN Rail Mount
Certification	CE, UL
