Description
Product Description

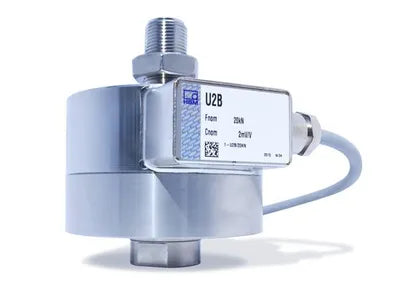

HBM U2B Load Cell
Tried and Tested For Compressive and Tensile Forces
The U2B load cell is a proven industry standard for measuring tensile and compressive forces. Reliable, robust, durable.
U2B Load Cell: Reliable Compressive and Tensile Force Measurement From 0.5 to 200 kN
The U2B load cell measures tensile and compressive force up to 200 kN in many static and dynamic industrial applications. It is robust, durable and, as a fast sensor, the tried and tested standard for tensile and compressive force measurement. This is also the case under harsh conditions such as force measurement of pressing and forming processes. The U2B load cell is the original and synonymous with reliability. It also is a best-seller in HBM's extensive and enhanced range of force transducers for industry applications.
HBM accuracy class: up to 0.1 (0.5 kN: 0.2)
Capacities: 0.5 kN to 200 kN
Reliable
Excellent dynamic behavior due to very small displacement
Fast sensor for fast processes
2 mV/V output signal
Precise monitoring of static force through use of strain gauge technology
Highly reliable test results due to tried and tested technology
Robust
Made of stainless steel
Hermetically encapsulated and laser welded
IP67 degree of protection (dust, water)
Shock and EMC tested in the HBM calibration laboratory
Excellent lateral force compensation
Suited to use in many applications under harsh conditions due to comprehensive protection
Future-proof standard
Continual product improvement
Consistent dimensions and connections
Long-term availability of calibration service and spare parts
Flexible configuration: various cable lengths, TEDS and plug assemblies
Compact design
A safe decision: Consistent mechanical dimensions and electrical characteristics over decades.
