Description

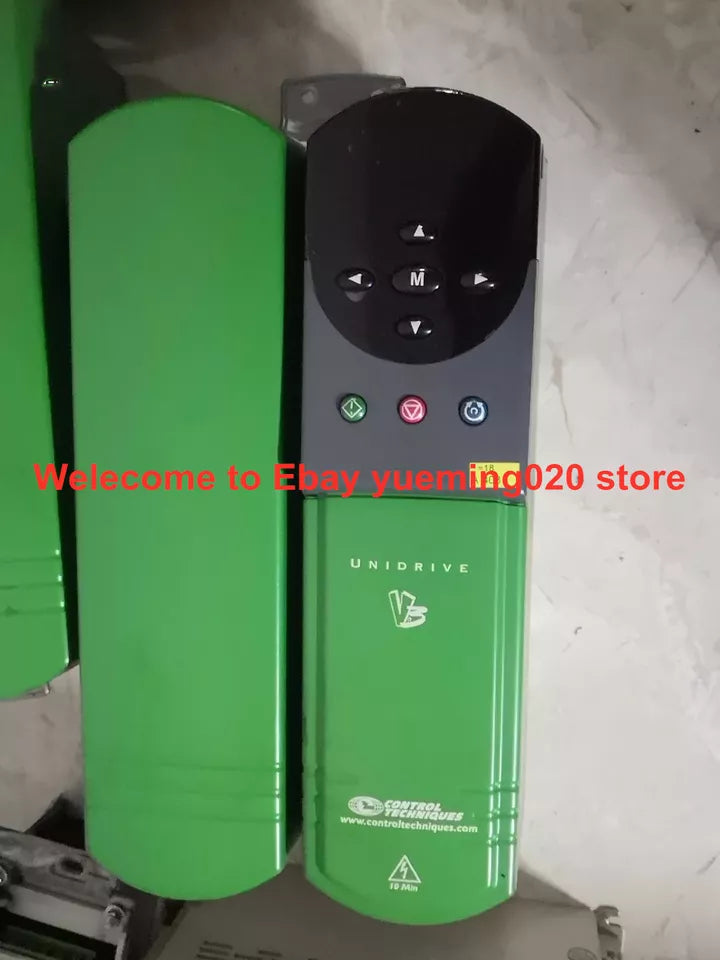

Control Techniques UNI2403
Overview
The UNI2403 is an high-operation AC drive from the Unidrive series by Control Techniques, delivering 11 kW (15 HP) of power at 24.3 A output current. engineered for dependable use in 3‑phase systems at 380–480 V, this space‑saving and modular drive delivers precise control using advanced vector and V/f technologies. It is well suited for motor-driven systems requiring efficiency, flexibility, and dependability.
Key Features
-
Power Output: 11 kW / 15 HP
-
Rated Current: 24.3 A
-
Input Voltage: 380–480 V AC ±10%, 3‑phase
-
Frequency: 50/60 Hz
-
Control Modes:
-
V/f (Volts per Hertz)
-
Open-loop vector
-
Closed-loop vector
-
Brushless servo
-
Enclosure: IP20, panel or DIN-rail mountable
-
Expansion Slots: For I/O, feedback, and communication modules
-
Diagnostics: Built-in trip history and fault monitoring
Technical Specifications
-
Model: UNI2403
-
Output Frequency Range: 0–400 Hz
-
Operating Temp.: 0 °C to +40 °C (derated above)
-
Cooling: Integrated fan
-
Humidity: 5%–95% non‑condensing
-
Chassis: space‑saving for space-constrained panels
