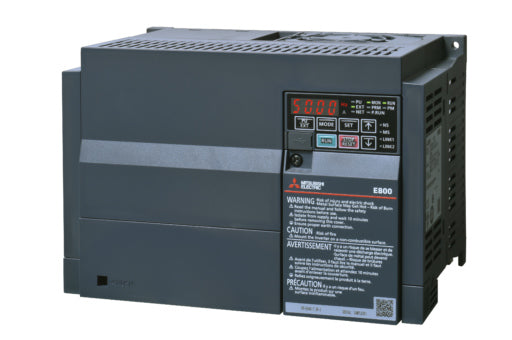

MODEL- VFD 5.5 KW 400V 3PHASE MODEL FE-E840-0120EPA-60 MAKE MITSUBISHI

Description

FA-Inverter: Inverter

Series FR-E800 SERIES
Type FR-E800-ETH INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current LD (A) 17,5
Rated Output Current ND (A) 12
Rated Motor Capacity LD (kW) 7,5
Rated Motor Capacity ND (kW) 5,5
Frequency Range (Hz) 0,2–590
Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Brake Chopper ED (%) 100
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 2K
Program Memory Unit STEPS
Integrated Digital Inputs 2
Digital Outputs (Transistor) 0
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 0
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 NO
USB 1 (MINI B)
Ethernet Port 2
Built-In Network MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP
Leakage Current (mA) 1,2
Power Loss LD (W) 224
Power Loss ND (W) 137
Protection Class IP20

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 220
Height (mm) 150
Depth (mm) 147
Weight (kg) 2,4

Product Packaging

Cardboard (g) 500
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 10
Wood (g) 0
Glass (g) 0
Others (g) 0

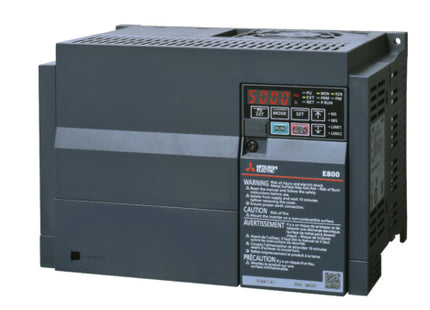

MODEL- VFD 5.5 KW 400V 3PHASE MODEL FE-E840-0120EPA-60 MAKE MITSUBISHI

Product form

FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800-ETH INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated... Read more

Rs. 29,988.00 Excl. VAT

  • Shipped today? Order within: Jul 04, 2026 17:00:00 -0400

    Description

    FA-Inverter: Inverter

    Series FR-E800 SERIES
    Type FR-E800-ETH INVERTER
    Minimum Rated Voltage (V) 380
    Min. Permissible Voltage (V) 323
    Maximum Rated Voltage (V) 480
    Max. Permissible Voltage (V) 528
    Current Type AC
    Phases 3
    Rated Output Current LD (A) 17,5
    Rated Output Current ND (A) 12
    Rated Motor Capacity LD (kW) 7,5
    Rated Motor Capacity ND (kW) 5,5
    Frequency Range (Hz) 0,2–590
    Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
    Motor Type INDUCTION MOTOR, PM MOTOR
    Brake Chopper ED (%) 100
    Integrated EMC Filter NO
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display BUILT-IN
    Display Type 4 DIGITS LED
    PLC Function YES
    Program Memory 2K
    Program Memory Unit STEPS
    Integrated Digital Inputs 2
    Digital Outputs (Transistor) 0
    Digital Outputs (Relay) 1
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 0
    IO Type of Terminal Block SPRING CLAMP
    Expandable YES
    RS-485 NO
    USB 1 (MINI B)
    Ethernet Port 2
    Built-In Network MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP
    Leakage Current (mA) 1,2
    Power Loss LD (W) 224
    Power Loss ND (W) 137
    Protection Class IP20

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 220
    Height (mm) 150
    Depth (mm) 147
    Weight (kg) 2,4

    Product Packaging

    Cardboard (g) 500
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 10
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
