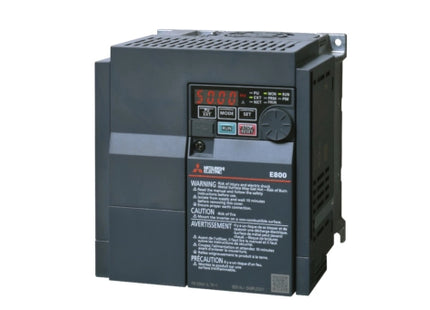

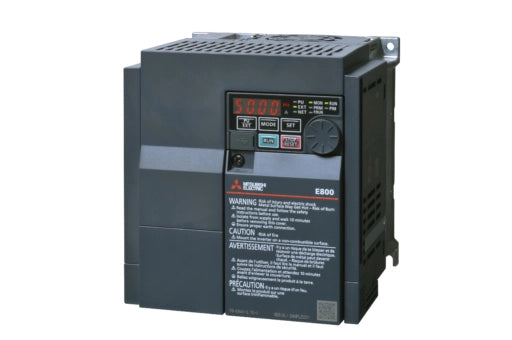

FR-E800
|
|
Three-phase 400 V class Standard model
|
|
|
|
2.2
|
|
3.0
|
|
2.2
|
|
5.3
|
|
4.6
|
|
6.9 (5.9)
|
|
6.0 (5.4)
|
|
120 % 60 s, 150 % 3 s (inverse-time characteristics) at surrounding air temperature of 50 °C
|
|
150 % 60 s, 200 % 3 s (inverse-time characteristics) at surrounding air temperature of 50 °C
|
|
Three-phase 380 to 480 V
|
|
Built-in
|
|
20 %
|
|
Three-phase 380 to 480 V, 50/60 Hz (537 to 679 VDC*9)
|
|
323 to 528 V, 50/60 Hz (457 to 740 VDC*9)
|
|
±5 %
|
|
10.7
|
|
9.5
|
|
6.9
|
|
6.0
|
|
8.2
|
|
7.2
|
|
5.3
|
|
4.6
|
|
IP20
|
|
Forced air
|
|
1.8
|
|
Soft-PWM control/High carrier frequency PWM control
|
|
Selectable among V/F control, Advanced magnetic flux vector control, Real sensorless vector control, and Vector control*10
|
|
PM sensorless vector control
|
|
0.2 to 590 Hz (The upper-limit frequency is 400 Hz under Advanced magnetic flux vector control, Real sensorless vector control, and Vector control*10.)
|
|
0.2 to 400 Hz (not operable at a frequency higher than the maximum motor frequency)
|
|
0.015 Hz/60 Hz at 0 to 10 V/12 bits (terminals 2 and 4)
0.03 Hz/60 Hz at 0 to 5 V/11 bits or 0 to 20 mA/11 bits (terminals 2 and 4)
|
|
0.01 Hz
|
|
Within ±0.2 % of the maximum output frequency (25 °C ±10 °C)
|
|
0.01 % or less of the set output frequency
|
|
Base frequency can be set from 0 to 590 Hz. Constant-torque/variable-torque pattern can be selected (with induction motor only).
|
|
The following is the specifications for the ND rating.
30 % or less at 1 Hz, 30 % at 3 Hz, 80 % at 6 Hz (V/F control)
150 % at 0.5 Hz (Advanced magnetic flux vector control)
200 % at 0.3 Hz (0.1K to 3.7K), 150 % at 0.3 Hz (5.5K or higher) (Real sensorless vector control)
200 % at 0 Hz (0.1K to 3.7K), 150 % at 0 Hz (5.5K or higher) (Vector control*10)
|
|
The following is the specifications for the ND rating.
50 % (with a motor other than MM-GKR or EM-A)
200 % (with MM-GKR or EM-A)
|
|
Manual torque boost (induction motor only)
|
|
0 to 3600 s (acceleration and deceleration can be set individually), linear or S-pattern acceleration/deceleration modes are available.
|
|
Operation frequency (0 to 120 Hz), operation time (0 to 10 s), operation voltage (0 to 30 %) variable
|
|
Operation time (0 to 10 s) variable. Operating voltage (operating current) fixed.
|
|
Operation current : 0 to 200 % variable, with selectable availability of the function
|
|
Torque limit value can be set (0 to 400 % variable). (Real sensorless vector control, Vector control*10, PM sensorless vector control)
|
|
2
|
|
Terminals 2 and 4 : 0 to 10 V/0 to 5 V/4 to 20 mA (0 to 20 mA)
|
|
Input using the operation panel.
Input of four-digit BCD (Binary-coded decimal) or 16-bit binary (when the option FR-A8AX E kit is installed).
|
|
Forward and reverse rotation or start signal automatic self-holding input (3-wire input) can be selected.
|
|
7
|
|
Low-speed operation command, Middle-speed operation command, High-speed operation command, Output stop, Forward rotation command, Reverse rotation command, Inverter reset
The signal to be input can be changed using Pr.178 to Pr.184 (Input terminal function selection).
|
|
Maximum and minimum frequency settings, Multi-speed operation, Acceleration/deceleration pattern, Thermal protection, DC injection brake, Starting frequency, JOG operation, Output stop (MRS), Stall prevention, Regeneration avoidance, Increased magnetic excitation deceleration, Frequency jump, Rotation display, Automatic restart after instantaneous power failure, Remote setting, Automatic acceleration/deceleration, Retry function, Carrier frequency selection, Fast-response current limit, Forward/reverse rotation prevention, Operation mode selection, Slip compensation, Droop control, Speed smoothing control, Traverse, Auto tuning, Applied motor selection, RS-485 communication, PID control, Easy dancer control, Cooling fan operation selection, Stop selection, Power failure time deceleration-to-stop function, Stop-on-contact control, PLC function, Life diagnosis, Maintenance timer, Current average monitor, Multiple rating, Speed control, Torque control, etc
|
|
2
|
|
1
|
|
Inverter running, Up to frequency, Fault
The signal to be output can be changed using Pr.190 to Pr.192 (Output terminal function selection).
|
|
Not used
|
|
-10 to +10 V/12 bits
|
|
Overcurrent trip during acceleration, Overcurrent trip during constant speed, Overcurrent trip during deceleration or stop, Regenerative overvoltage trip during acceleration, Regenerative overvoltage trip during constant speed, Regenerative overvoltage trip during deceleration or stop, Inverter overload trip (electronic thermal relay function), Motor overload trip (electronic thermal relay function), Heat sink overheat, Undervoltage, Input phase loss, Stall prevention stop, Loss of synchronism detection*11, Upper limit fault detection, Lower limit fault detection, Brake transistor alarm detection, Output side earth (ground) fault overcurrent, Output short circuit, Output phase loss, External thermal relay operation, PTC thermistor operation*11, Option fault, Communication option fault, Parameter storage device fault, PU disconnection, Retry count excess, CPU fault, Abnormal output current detection, Inrush current limit circuit fault, USB communication fault, etc
|
|
Fan alarm, Stall prevention (overcurrent), Stall prevention (overvoltage), Regenerative brake pre-alarm*11, Electronic thermal relay function pre-alarm, PU stop, Maintenance timer alarm, Parameter write error, Operation panel lock*11, Password locked*11, Speed limit indication*11, Stroke limit warning*11, Home position return setting error*11, Home position return uncompleted*11, Safety stop, Incorrect parameter setting
|
|
-20 °C to +60 °C (The rated current must be reduced at a temperature above 50 °C.)
|
|
95 % RH or less (non-condensing)
|
|
-40 °C to +70 °C
|
|
Indoors (free from corrosive gas, flammable gas, oil mist, dust and dirt)
|
|
Maximum 3000 m*13, 5.9 m/s2 or less at 10 to 55 Hz in X, Y, and Z directions
|
|
RS-485 : Mitsubishi inverter protocol, MODBUS RTU, BACnet MS/TP
Option unit : CC-Link, DeviceNet, PROFIBUS-DPV0
|
