| Series |
FR-A SERIES |
| Type |

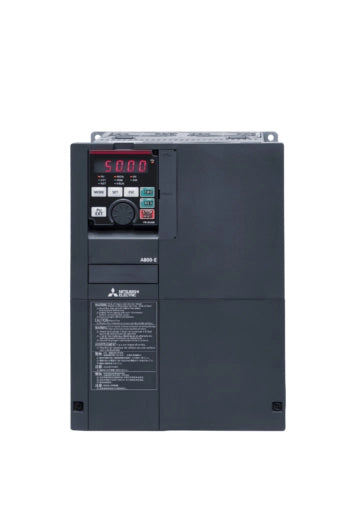

FR-A800-E INVERTER |
| Minimum Rated Voltage (V) |
380 |
| Min. Permissible Voltage (V) |
323 |
| Maximum Rated Voltage (V) |
500 |
| Max. Permissible Voltage (V) |
550 |
| Current Type |
AC |
| Phases |
3 |
| Rated Output Current SLD (A) |
38 |
| Rated Output Current LD (A) |
35 |
| Rated Output Current ND (A) |
31 |
| Rated Output Current HD (A) |
23 |
| Rated Motor Capacity SLD (kW) |
18,5 |
| Rated Motor Capacity LD (kW) |
18,5 |
| Rated Motor Capacity ND (kW) |
15 |
| Rated Motor Capacity HD (kW) |
11 |
| Frequency Range (Hz) |
0,2–590 |
| Control Method |
VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type |
INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) |
100 |
| Integrated EMC Filter |
YES |
| Safe Torque Off (STO) |
YES |
| Regenerative (4Q) |
NO |
| Integrated DC Choke |
NO |
| Display |
FR-DU08 |
| Display Type |
5 DIGITS LED (12 SEGMENT) |
| PLC Function |
YES |
| Program Memory |
6K |
| Program Memory Unit |
STEPS |
| Integrated Digital Inputs |
12 |
| Digital Outputs (Transistor) |
5 |
| Digital Outputs (Relay) |
2 |
| Integrated Analogue Inputs |
3 |
| Integrated Analogue Outputs |
2 |
| IO Type of Terminal Block |
SPRING CLAMP |
| Expandable |
YES |
| RS-485 |
OPTIONAL |
| USB |
1+1 MINI |
| Ethernet Port |
1 |
| Built-In Network |
CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS |
| Leakage Current (mA) |
35(DELTA) / 2(STAR) |
| Power Loss SLD (W) |
450 |
| Power Loss LD (W) |
415 |
| Power Loss ND (W) |
390 |
| Power Loss HD (W) |
285 |
| Standby Power Consumption (W) |
20 |
| Protection Class |
IP20 |
