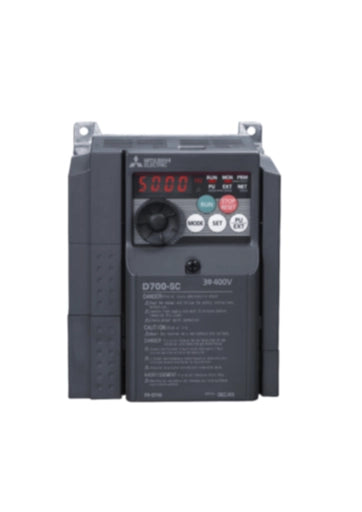

MODEL-VFD, FR-D740-022-EC 3 PH 400V I/P AND 3 PH 400V O/P,1HP,2.2 AMP

Description

FA-Inverter: Inverter

Series FR-D700 SERIES
Type FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 325
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current ND (A) 2,2
Rated Motor Capacity ND (kW) 0,75
Frequency Range (Hz) 0,2–400
Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function NO
Integrated Digital Inputs 5
Digital Outputs (Transistor) 1
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable NO
RS-485 1
USB NO
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Power Loss ND (W) 55
Standby Power Consumption (W) 10,5-15
Protection Class IP20

Product Dimensions & Weight

Width (mm) 108
Height (mm) 128
Depth (mm) 129,5
Weight (kg) 1,2

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

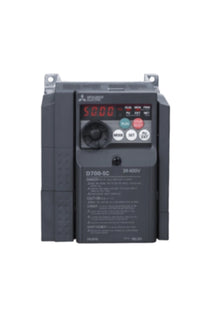

MODEL-VFD, FR-D740-022-EC 3 PH 400V I/P AND 3 PH 400V O/P,1HP,2.2 AMP

Product form

FA-Inverter: Inverter Series FR-D700 SERIES Type FR-D700 COMPACT INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 325 Maximum... Read more

Rs. 13,121.60 Excl. VAT

  • Shipped today? Order within: Apr 03, 2026 17:00:00 -0400

    Description

    FA-Inverter: Inverter

    Series FR-D700 SERIES
    Type FR-D700 COMPACT INVERTER
    Minimum Rated Voltage (V) 380
    Min. Permissible Voltage (V) 325
    Maximum Rated Voltage (V) 480
    Max. Permissible Voltage (V) 528
    Current Type AC
    Phases 3
    Rated Output Current ND (A) 2,2
    Rated Motor Capacity ND (kW) 0,75
    Frequency Range (Hz) 0,2–400
    Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL
    Motor Type INDUCTION MOTOR
    Brake Chopper ED (%) 30
    Integrated EMC Filter NO
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display BUILT-IN
    Display Type 4 DIGITS LED
    PLC Function NO
    Integrated Digital Inputs 5
    Digital Outputs (Transistor) 1
    Digital Outputs (Relay) 1
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 1
    IO Type of Terminal Block SPRING CLAMP
    Expandable NO
    RS-485 1
    USB NO
    Ethernet Port NO
    Built-In Network MODBUS-RTU
    Leakage Current (mA) 1
    Power Loss ND (W) 55
    Standby Power Consumption (W) 10,5-15
    Protection Class IP20

    Product Dimensions & Weight

    Width (mm) 108
    Height (mm) 128
    Depth (mm) 129,5
    Weight (kg) 1,2

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
