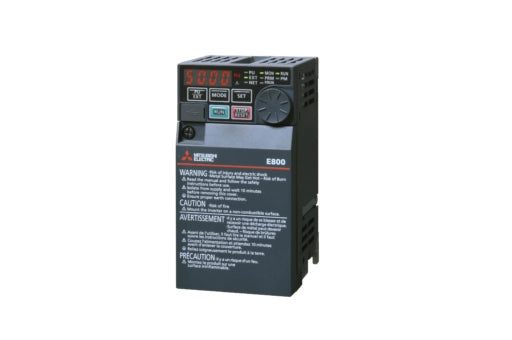

MODEL-VFD FR-E820-0015-4-60 200 V MITSUBISHI

Description

FA-Inverter: Inverter

Series FR-E800 SERIES
Type FR-E800 RS485 INVERTER
Minimum Rated Voltage (V) 200
Min. Permissible Voltage (V) 170
Maximum Rated Voltage (V) 240
Max. Permissible Voltage (V) 264
Current Type AC
Phases 1
Rated Output Current ND (A) 1,5
Rated Motor Capacity ND (kW) 0,2
Frequency Range (Hz) 0,2–590
Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 2K
Program Memory Unit STEPS
Integrated Digital Inputs 7
Digital Outputs (Transistor) 2
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 1
USB 1 (MINI B)
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1,2
Power Loss ND (W) 17
Protection Class IP20

Product Dimensions & Weight

Width (mm) 68
Height (mm) 128
Depth (mm) 80,5
Weight (kg) 0,5

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

MODEL-VFD FR-E820-0015-4-60 200 V MITSUBISHI

Product form

FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800 RS485 INVERTER Minimum Rated Voltage (V) 200 Min. Permissible Voltage (V) 170 Maximum... Read more

Rs. 19,427.52 Excl. VAT
