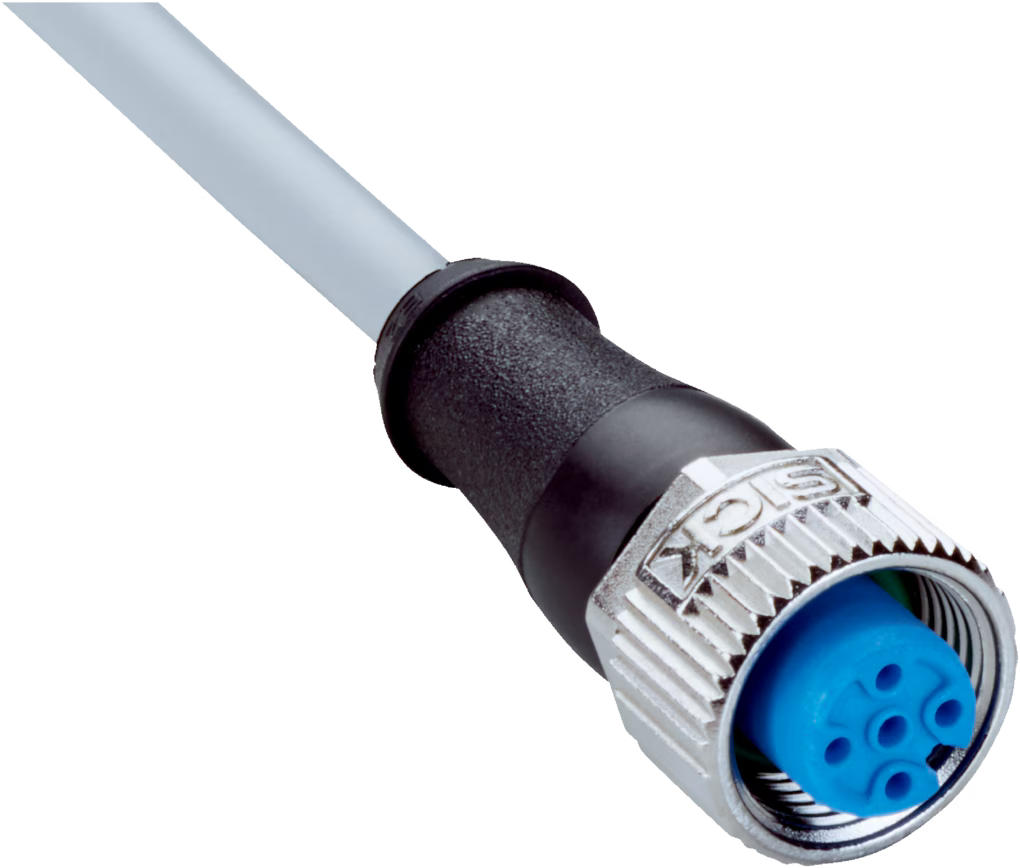

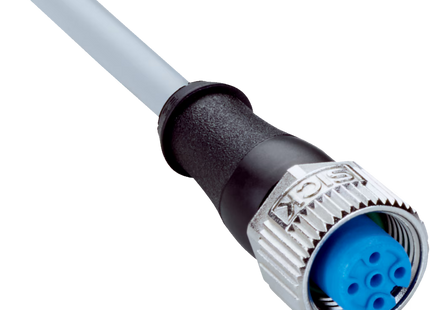

| Connection type head A |
Female connector, M12, 5-pin, straight, A-coded |
| Connection type head B |
Flying leads |
| Locking plug connector |
Screw connection |
| Connector material |
TPU |
| Connector color |
Black |
| Locking nut material |
Zinc die-cast, nickel-plated |
| Seal material |
FKM |
| Tightening torque |
0.6 Nm |
| Width across flats |
13 |
| Cable |
2 m, 5-wire, PVC |
| Jacket material |
PVC |
| Jacket color |
Gray |
| Cable diameter |
5.2 mm |
| Conductor cross section |
0.34 mm² |
| Shielding |
Unshielded |
| Bending radius |
|
| Flexible use |
> 10 x cable diameter |
| Stationary position |
> 5 x cable diameter |
|
| Nominal voltage, cable |
300 V AC |
| Test voltage, cable |
2,000 V AC |
| Reference voltage |
|
|
125 V AC |
|
125 V DC |
|
| Rated impulse voltage |
1.5 kV |
| Current loading |
4 A |
| Signal type |
Sensor/actuator cable |
| Application |
Zones with chemicals
Uncontaminated zones
|
| UL File No. |
E335179 |
| Enclosure rating |
IP65 / IP66K / IP67 |
| Operating temperature |
|
| Flexible use |
–5 °C ... +80 °C |
| Stationary position |
–30 °C ... +80 °C |
| Head |
–25 °C ... +85 °C |
|
| Contamination rating |
3 |
| Insulation resistance |
100 MΩ |
| Overvoltage category |
III |
| Specific insulation resistance |
30 mΩ |
| Thermal resistance, piping |
Flame retardant according to UL 1581 VW1 / CSA FT1 |
