| Product Number |
NA1-11 |
| Part Number |
NA1-11 |
| Products Name |

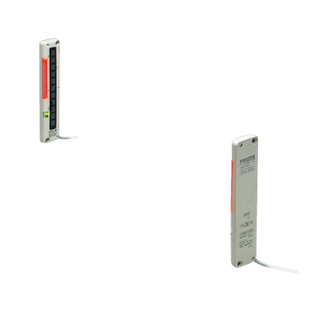

Small / Slim Object Detection Area Sensor |
| Product details |
NPN output |
| The price of the product |
Please contact our office |
| Sensing height |
100 mm 3.937 in
|
| Sensing range |
0.17 to 1 m 0.558 to 3.281 ft
(Note：The sensing range is the possible setting distance between the emitter and the receiver. The sensor can detect an object less than 0.17 m 0.558 ft away.) |
| Element pitch |
10 mm 0.394 in
|
| Number of emitting / receiving elements |
11 Nos. each on the emitter and the receiver, respectively |
| Sensing object |
ø13.5 mm ø0.531 in or more opaque object
(Note：Although this product can detect slim objects by using the cross-beam scanning system, the size of the slim object which can be stably detected differs with the setting distance. When this sensor is used to detect slim objects, make sure to confirm stable detection using the actual objects.) |
| Supply voltage |
12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption |
Emitter: 80 mA or less
Receiver: 100 mA or less |
| Output |
NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Output:Utilization category |
DC-12 or DC-13 |
| Output:Output operation |
ON or OFF when beam channel is interrupted, selectable by operation mode switch |
| Output:Short-circuit protection |
Incorporated |
| Response time |
In Dark state: 5 ms or less
In Light state: 10 ms or less |
| Indicators:Emitter |
Power indicator: Green LED (lights up when the power is ON)
Large indicator: Orange LED (lights up or blinks when the large indicator input is Low, lighting pattern is selected by operation mode switch) |
| Indicators:Receiver |
Operation indicator: Orange LED (lights up when the output is ON)
Power indicator: Green LED (lights up when the power is ON)
Large indicator: Orange LED (lights up or blinks when the large indicator input is Low, lighting pattern is selected by operation mode switch) |
| Pollution degree |
3 (Industrial environment) |
| Protection |
IP62 (IEC) |
| Ambient temperature |
-10 to 55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
|
| Ambient humidity |
35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance |
Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability |
1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance |
20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance |
10 to 150 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance |
500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element |
Infrared LED (Peak emission wavelength: 880nm 0.035mil, cross-beam scanning system) |
| Material |
Enclosure: Heat-resistant ABS
Lens: Acrylic
Indicator cover: Acrylic |
| Cable |
0.3 mm2 4-core (emitter: 3-core) oil resistant cabtyre cable, 2 m 6.562 ft long |
| Cable extension |
Extension up to total 100 m 328.084 ft is possible, for both emitter and receiver, with 0.3 mm2, or more, cable. |
| Weight |
Net weight: Emitter 80 g approx., Receiver 85 g approx
Gross Weight: 210 g approx. |
