Description

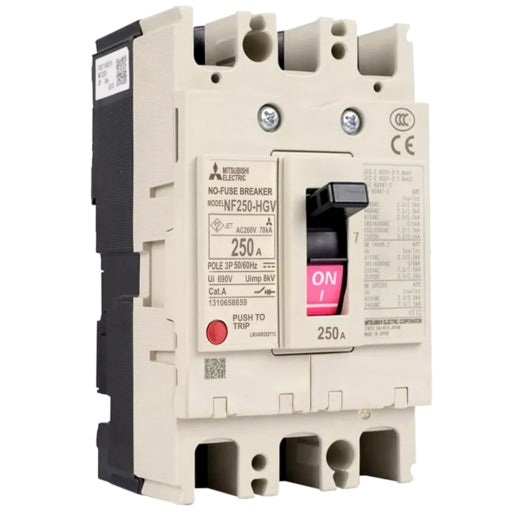

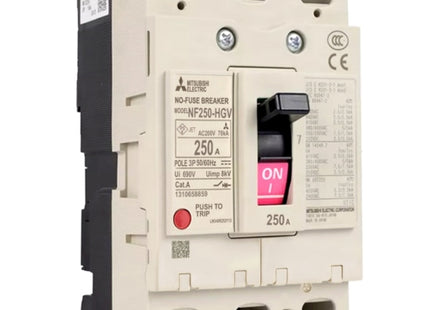

FA-MCCB: Moulded-Case Circuit Breaker
| Series |
WS-V SERIES - MCCB |
| Type |
NF-H TYPE (HIGH-PERFORMANCE) |
| Frame Size |
250 |
| Rated Current (A) |
175-250 |
| Current Type |
AC/DC |
| Number of Poles |
3 |
| Rated Voltage (V) |
690 |
| Breaking Capacity at 400V (kA) |
75/75 |
| Compliant with Standard(s) |
EN 60947-2, IEC 60947-2 |
| Cycles with Rated Current |
10000 |
| Cycles without Rated Current |
25000 |
| Automatic Tripping Device |
THERMAL-MAGNETIC |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
NON-COMPLIANT |
| EAC |
NON-COMPLIANT |
| Shipping Approvals |
LR, DNV·GL, BV, ABS, CCS |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
105 |
| Height (mm) |
165 |
| Depth (mm) |
92 |
| Weight (kg) |
1,6 |
Life Cycle
| Predecessor |
204606 |
| Serial No. on the Box |
QR1 |
Campaigns
Product Packaging
| Cardboard (g) |
97 |
| Other paper (g) |
0 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
0 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
