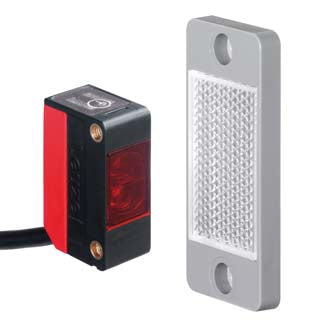

PRK5.R3/2N DTKS LEUZE

Description

Series 5
Operating principle Reflection principle
Contains Reflector DTKS 30x50 (50136770)
Application Detection of empty bottles

Special version Article set

Operating range 0.1 ... 0.3 m (guaranteed operating range), With reflector DTKS 30x50
Operating range limit 0.1 ... 0.3 m (typical operating range), With reflector DTKS 30x50
Light source LED, Red
Wavelength 620 nm
Transmitted-signal shape Pulsed
LED group Exempt group (in acc. with EN 62471)



Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA

Number of digital switching outputs 2 Piece(s)

Type Digital switching output

Switching element Transistor, NPN
Switching principle Light switching

Switching element Transistor, NPN
Switching principle Dark switching

Switching frequency 500 Hz
Response time 1 ms
Readiness delay 300 ms

Number of connections 1 Piece(s)

Function Signal OUT
Voltage supply
Type of connection Cable
Cable length 2,000 mm
Sheathing material PUR
Cable color Black
Number of conductors 4 -wire
Wire cross section 0.2 mm²

Dimension (W x H x L) 14 mm x 32.5 mm x 20.2 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 70 g
Housing color Black
Red
Recommended tightening torque for M3 fastening 0.9 N·m

Type of display LED
Number of LEDs 2 Piece(s)

Ambient temperature, operation -40 ... 60 °C
Ambient temperature, storage -40 ... 70 °C

Degree of protection IP 67
Protection class III
Approvals c UL US
Standards applied IEC 60947-5-2

Customs tariff number 85365019
ECLASS 5.1.4 27270902
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ECLASS 10.0 27270902
ECLASS 11.0 27270902
ECLASS 12.0 27270902
ECLASS 13.0 27270902
ECLASS 14.0 27270902
ECLASS 15.0 27270902
ECLASS 16.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
ETIM 7.0 EC002717
ETIM 8.0 EC002717
ETIM 9.0 EC002717
ETIM 10.0 EC002717

PRK5.R3/2N DTKS LEUZE

Product form

Series 5 Operating principle Reflection principle Contains Reflector DTKS 30x50 (50136770) Application Detection of empty bottles Special version Article set... Read more

Rs. 3,473.00 Excl. VAT

    Description

    Series 5
    Operating principle Reflection principle
    Contains Reflector DTKS 30x50 (50136770)
    Application Detection of empty bottles

    Special version Article set

    Operating range 0.1 ... 0.3 m (guaranteed operating range), With reflector DTKS 30x50
    Operating range limit 0.1 ... 0.3 m (typical operating range), With reflector DTKS 30x50
    Light source LED, Red
    Wavelength 620 nm
    Transmitted-signal shape Pulsed
    LED group Exempt group (in acc. with EN 62471)



    Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
    Residual ripple 0 ... 15 %, From UB
    Open-circuit current 0 ... 20 mA

    Number of digital switching outputs 2 Piece(s)

    Type Digital switching output

    Switching element Transistor, NPN
    Switching principle Light switching

    Switching element Transistor, NPN
    Switching principle Dark switching

    Switching frequency 500 Hz
    Response time 1 ms
    Readiness delay 300 ms

    Number of connections 1 Piece(s)

    Function Signal OUT
    Voltage supply
    Type of connection Cable
    Cable length 2,000 mm
    Sheathing material PUR
    Cable color Black
    Number of conductors 4 -wire
    Wire cross section 0.2 mm²

    Dimension (W x H x L) 14 mm x 32.5 mm x 20.2 mm
    Housing material Plastic
    Plastic housing ABS
    Lens cover material Plastic
    Net weight 70 g
    Housing color Black
    Red
    Recommended tightening torque for M3 fastening 0.9 N·m

    Type of display LED
    Number of LEDs 2 Piece(s)

    Ambient temperature, operation -40 ... 60 °C
    Ambient temperature, storage -40 ... 70 °C

    Degree of protection IP 67
    Protection class III
    Approvals c UL US
    Standards applied IEC 60947-5-2

    Customs tariff number 85365019
    ECLASS 5.1.4 27270902
    ECLASS 8.0 27270902
    ECLASS 9.0 27270902
    ECLASS 10.0 27270902
    ECLASS 11.0 27270902
    ECLASS 12.0 27270902
    ECLASS 13.0 27270902
    ECLASS 14.0 27270902
    ECLASS 15.0 27270902
    ECLASS 16.0 27270902
    ETIM 5.0 EC002717
    ETIM 6.0 EC002717
    ETIM 7.0 EC002717
    ETIM 8.0 EC002717
    ETIM 9.0 EC002717
    ETIM 10.0 EC002717
