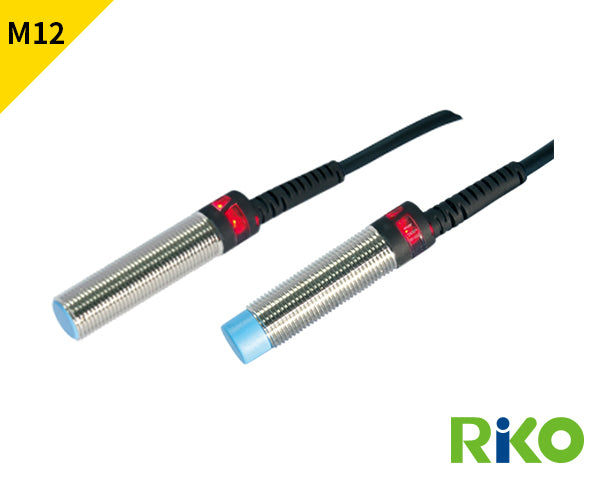

PSC1205-NP RIKO

Description

Model Tubular Inductive Proximity Sensor
Detection distance 5 mm ± 10%
Secure sensing distance 0 ~ 4 mm
Standard sensing object Iron 12 x 12 x 1 mm
Sensing distance Unshielded / 非隔離型
Description Standard M12
Hysteresis ≦ 10 % of sensing distance
Response time 500 Hz
Operating voltage DC 12 ~ 30 V
Current consumption ≦ 14 mA no-load
Load current 100 mA Max. at DC 24V
Residual voltage ≦ DC 2V
Insulation resistance 20MΩ min. (DC500V)
Voltage withstandability AC 1000 V 60Hz for 60 Sec.
Opera tetemperature -20℃ ~ + 60℃
Protection degree IP 67
Option M84R-2M-PVC / M84RL-2M PVC
Wiring method Ø4.2 x 2M / 4 wires
Weight 65g

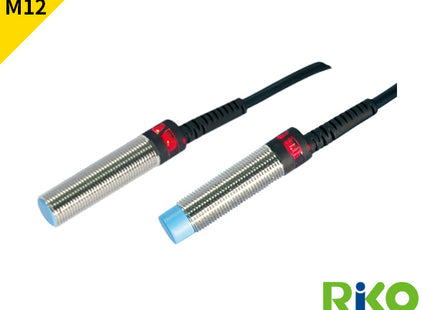

PSC1205-NP RIKO

Product form

Model Tubular Inductive Proximity Sensor Detection distance 5 mm ± 10% Secure sensing distance 0 ~ 4 mm Standard sensing... Read more

Rs. 688.00 Excl. VAT

    Description

    Model Tubular Inductive Proximity Sensor
    Detection distance 5 mm ± 10%
    Secure sensing distance 0 ~ 4 mm
    Standard sensing object Iron 12 x 12 x 1 mm
    Sensing distance Unshielded / 非隔離型
    Description Standard M12
    Hysteresis ≦ 10 % of sensing distance
    Response time 500 Hz
    Operating voltage DC 12 ~ 30 V
    Current consumption ≦ 14 mA no-load
    Load current 100 mA Max. at DC 24V
    Residual voltage ≦ DC 2V
    Insulation resistance 20MΩ min. (DC500V)
    Voltage withstandability AC 1000 V 60Hz for 60 Sec.
    Opera tetemperature -20℃ ~ + 60℃
    Protection degree IP 67
    Option M84R-2M-PVC / M84RL-2M PVC
    Wiring method Ø4.2 x 2M / 4 wires
    Weight 65g
