SACC-M12MS-4QO-0-34-M

Description

Description

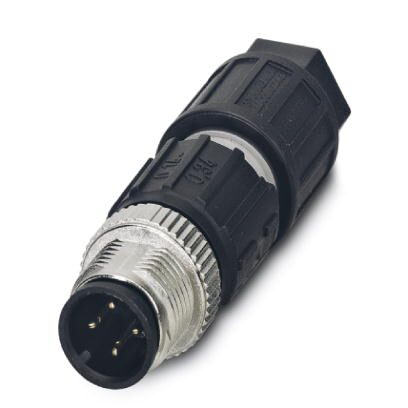

1641691 is a 4-position, straight plug, universal M12 sensor/actuator connector. This A-coded connector is connected by insulation displacement connection which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has housing diameter of 16.3mm, length of 54mm, and external cable diameter of 3.5 mm to 6 mm. Conductor cross section is 22 to 26AWG.
Search Keywords: SACCM12MS4QO034M
SPECS

  • Supplier:
    Phoenix Contact
  • Part No:
    SACC-M12MS-4QO-0-34-M
  • Alias/AKA:
    1641691
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    DE
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1

SACC-M12MS-4QO-0-34-M

Product form

Description 1641691 is a 4-position, straight plug, universal M12 sensor/actuator connector. This A-coded connector is connected by insulation displacement connection... Read more

Rs. 1,238.00 Excl. VAT

    Description

    Description

    1641691 is a 4-position, straight plug, universal M12 sensor/actuator connector. This A-coded connector is connected by insulation displacement connection which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has housing diameter of 16.3mm, length of 54mm, and external cable diameter of 3.5 mm to 6 mm. Conductor cross section is 22 to 26AWG.
    Search Keywords: SACCM12MS4QO034M
    SPECS

    • Supplier:
      Phoenix Contact
    • Part No:
      SACC-M12MS-4QO-0-34-M
    • Alias/AKA:
      1641691
    • Unit of Measure:
      Per Each
    • RoHS:
      Yes
    • HTS:
      8536694020
    • COO:
      DE
    • ECCN:
      EAR99
    • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
      1
