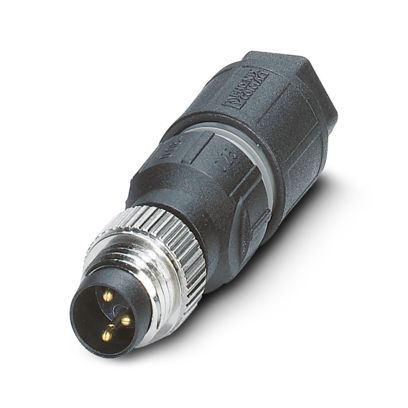

| Diameter housing |
12.5 mm |
| Length |
43.4 mm |
| External cable diameter |
2.5 mm ... 5 mm ±0.2 mm |
| Stripping length of the sheath |
40 mm |
| Ambient temperature (operation) |
-25 °C ... 80 °C (Plug / socket) |
| Degree of protection |
IP65 |
| Degree of protection |
IP67 |
| Rated current at 40°C |
4 A |
| Rated voltage |
48 V AC |
| Rated voltage |
60 V DC |
| Number of Positions |
3 |
| Insulation resistance |
= 100 MO |
| Coding |
A - standard |
| Standards/regulations |
M8 connector IEC 61076-2-104 |
| Status display |
No |
| Overvoltage category |
II |
| Degree of pollution |
3 |
| Connection Method |
Insulation displacement connection |
| Conductor cross section |
0.25 mm² ... 0.5 mm² |
| Conductor cross section AWG |
24 ... 20 |
| Wire diameter including insulation |
1.1 mm ... 1.55 mm |
| Frequency of connections between conductors of the same cross section |
10 |
| Wire insulation material |
PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter |
Class 2-6 |
| Insertion/withdrawal cycles |
= 100 |
| Torque |
0.6 Nm (Pressure nut) |
| Torque |
0.2 Nm (M8 knurl) |
| Flammability rating according to UL 94 |
HB |
| Contact material |
CuSn |
| Contact surface material |
Ni/Au |
| Contact carrier material |
TPU GF |
| Material of grip body |
PA 6 |
| Material, knurls |
Zinc die-cast, nickel-plated |
| Sealing material |
NBR |
| Standard designation |
M8 connector |
| Standards/regulations |
IEC 61076-2-104 |
| Connection in acc. with standard |
CUL |
| Flammability rating according to UL 94 |
HB |
| China RoHS |
Environmentally Friendly Use Period = 50 |
| China RoHS |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Color handle area |
black |
| REACh SVHC |
Lead 7439-92-1 |
| Rated current at 40?C |
4 A |
| Note |
NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Signal type/category |
Universal |
