| Current Range |
Up to 27 A |
| Working Temperature |
0AdegC to +50AdegC |
| Application |
SINAMICS S120 Drives, Industrial Motor Control |
| Rated Current |
27 A |
| Phase |
Three Phase |
| Power Factor |
> 0.95 |
| Power Supply |
600 V DC link |
| Output Current |
27 A |
| Output Type |
Other, 3-Phase AC |
| Operating Temperature |
0AdegC to +50AdegC |
| Connector Type |
Spring-type terminal |
| Cooling Method |
Internal Forced Air Cooling |
| Rated Power |
18 kW |
| Features |
Compact, High Dynamic Response, Modular Design, Diagnostics via LED |
| Noise Level |
<65 dB(A) |

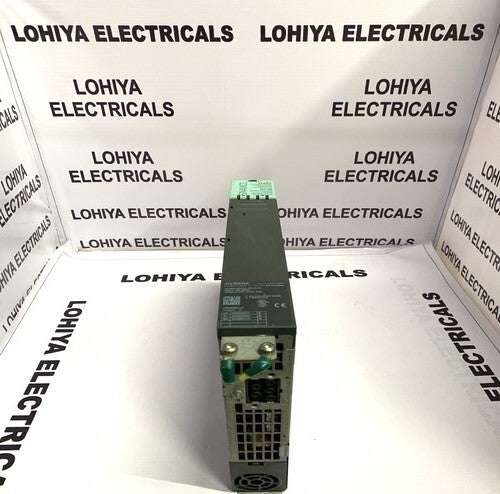

| Product Type |
Single Motor Module |
| Output Power |
18 kW |
| Output Frequency |
0 Hz to 600 Hz |
| Input Voltage |
600 V DC |
| Voltage Protection |
Overvoltage and Undervoltage Protection |
| Efficiency |
Greater than 98% |
| Material |
Industrial Grade Components, Metal Housing |
| Line Regulation |
A+-0.1% of output voltage |
| Storage Temperature |
-25AdegC to +70AdegC |
| Weight |
6.5 kg |
