Name: SKH-M1T-Y patlite
Brand: Industry Baba
Price: 6945.0 INR
Availability: InStock

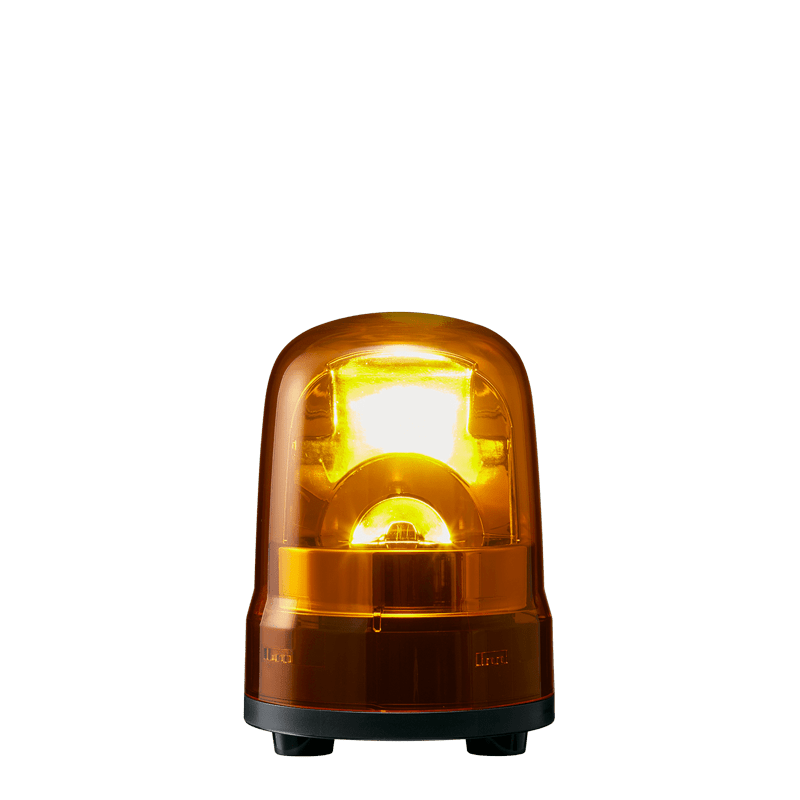

SKH-M1T-Y patlite

Description

Series	SK
function	Rotating Beacons SK
size	100 mm
Rated voltage	12-24V DC
Mounting method	3-screw
Wiring method	Terminal Block
Globe color	Amber
buzzer	No
Mounting pitch	70
Material (Glove / Body)	PC
Degree of protection	IP23, IP65
Applicable standards	UL/cUL, CE , KC, EAC
Remarks	When used with rubber mounting (SZW-103), the IP rating will become IP65. Wall Mount Waterproof Bracket (SZK-101) and Rubber Mounting (SZW-103) are sold separately. If switching from the WH series, please note that the mounting pitch is different.

Product form

Series SK function Rotating Beacons SK size 100 mm Rated voltage 12-24V DC Mounting method 3-screw Wiring method Terminal Block... Read more

Rs. 6,945.00 Excl. VAT

Series	SK
function	Rotating Beacons SK
size	100 mm
Rated voltage	12-24V DC
Mounting method	3-screw
Wiring method	Terminal Block
Globe color	Amber
buzzer	No
Mounting pitch	70
Material (Glove / Body)	PC
Degree of protection	IP23, IP65
Applicable standards	UL/cUL, CE , KC, EAC
Remarks	When used with rubber mounting (SZW-103), the IP rating will become IP65. Wall Mount Waterproof Bracket (SZK-101) and Rubber Mounting (SZW-103) are sold separately. If switching from the WH series, please note that the mounting pitch is different.
