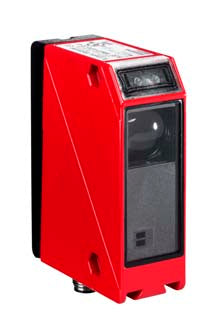

SLSE 96K/P-1200-T2-21

Description

Series 96
Operating principle Throughbeam principle
Device type Receiver

Type 2, IEC/EN 61496
Performance Level (PL) c, EN ISO 13849-1:2008
MTTFd 400 years, EN ISO 13849-1
Mission time 20 years, EN ISO 13849-1
Category 2, EN ISO 13849

Protective circuit Polarity reversal protection
Short circuit protected
Transient protection

Supply voltage UB 10 ... 30 V, DC

Number of digital switching outputs 1 Piece(s)

Switching element Transistor, PNP
Switching principle Light switching

Switching frequency 500 Hz
Response time 1 ms

Number of connections 1 Piece(s)

Function Signal OUT
Voltage supply
Type of connection Terminal
No. of pins 3 -pin

Design Cubic
Dimension (W x H x L) 30 mm x 90 mm x 70 mm
Housing material Plastic
Plastic housing PC
Lens cover material Plastic
Net weight 150 g
Housing color Red
Type of fastening Through-hole mounting

Type of display LED
Number of LEDs 2 Piece(s)

Ambient temperature, operation -20 ... 60 °C
Ambient temperature, storage -40 ... 70 °C

Degree of protection IP 67
IP 69K
Protection class II
Approvals TÜV Nord
c UL US
Standards applied IEC 60947-5-2

Customs tariff number 85365019
ECLASS 8.0 27272701
ECLASS 9.0 27272701
ETIM 5.0 EC001831
ETIM 6.0 EC001831

SLSE 96K/P-1200-T2-21

Product form

Series 96 Operating principle Throughbeam principle Device type Receiver Type 2, IEC/EN 61496 Performance Level (PL) c, EN ISO 13849-1:2008 MTTFd 400... Read more

Rs. 21,076.00 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    Series 96
    Operating principle Throughbeam principle
    Device type Receiver

    Type 2, IEC/EN 61496
    Performance Level (PL) c, EN ISO 13849-1:2008
    MTTFd 400 years, EN ISO 13849-1
    Mission time 20 years, EN ISO 13849-1
    Category 2, EN ISO 13849

    Protective circuit Polarity reversal protection
    Short circuit protected
    Transient protection

    Supply voltage UB 10 ... 30 V, DC

    Number of digital switching outputs 1 Piece(s)

    Switching element Transistor, PNP
    Switching principle Light switching

    Switching frequency 500 Hz
    Response time 1 ms

    Number of connections 1 Piece(s)

    Function Signal OUT
    Voltage supply
    Type of connection Terminal
    No. of pins 3 -pin

    Design Cubic
    Dimension (W x H x L) 30 mm x 90 mm x 70 mm
    Housing material Plastic
    Plastic housing PC
    Lens cover material Plastic
    Net weight 150 g
    Housing color Red
    Type of fastening Through-hole mounting

    Type of display LED
    Number of LEDs 2 Piece(s)

    Ambient temperature, operation -20 ... 60 °C
    Ambient temperature, storage -40 ... 70 °C

    Degree of protection IP 67
    IP 69K
    Protection class II
    Approvals TÜV Nord
    c UL US
    Standards applied IEC 60947-5-2

    Customs tariff number 85365019
    ECLASS 8.0 27272701
    ECLASS 9.0 27272701
    ETIM 5.0 EC001831
    ETIM 6.0 EC001831
