| Actuator |

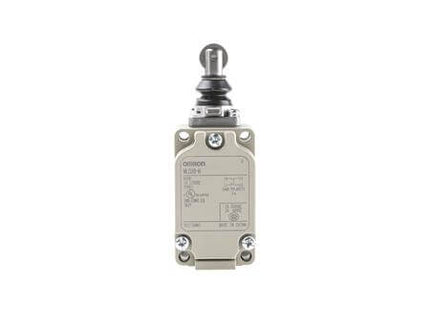

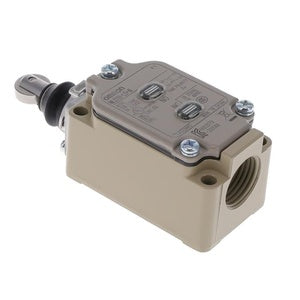

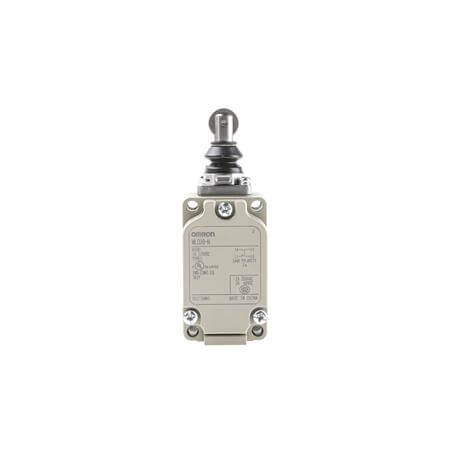

Sealed top-roller plunger |
| Terminal shape |
Screw terminals (Conduit size: G½) |
| Pretravel (PT) |
1.7 mm max. |
| Rated frequency |
50/60 Hz |
| Minimum applicable load |
5 VDC 1 mA, resistive load, P level |
| Rated voltage |
10 to 115 VAC/DC |
| Leakage current (Reference value) |
Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC |
| Indicator |
LED (With operation indicator) |
| Insulation resistance |
100 MΩ min. (at 500 VDC) |
| Contact resistance |
25 mΩ max. (initial value for the built-in switch) |
| Ambient temperature |
-10 to +80°C (with no icing) |
| Ambient humidity |
35 to 95%RH |
| Vibration resistance |
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance |
Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree of protection |
IP67 |
