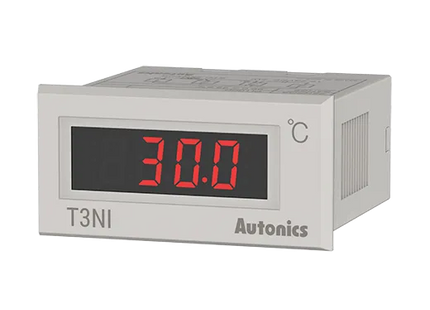

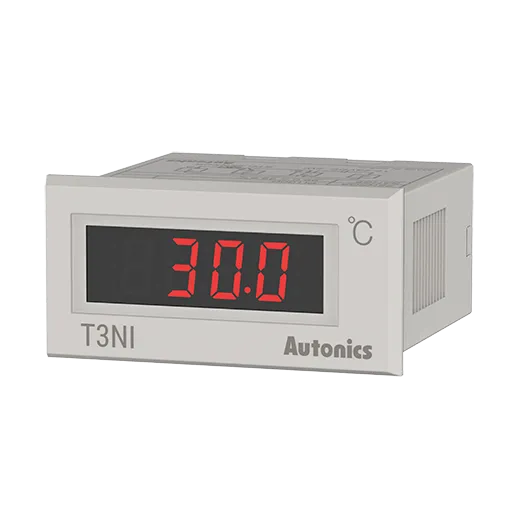

T3NI-NXNP0C-N AUTONICS

Description

Data sheet Print

Display method 3-digit 7-segment LED
Input specification RTD: DPt100Ω
Sampling cycle 100ms
Control output Indicator
Display range -99.9 to 99.9℃
Power voltage 12-24VDC specialstring
Display accuracy_RTD •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 48g(approx. 25g)

T3NI-NXNP0C-N AUTONICS

Product form

Data sheet Print Display method 3-digit 7-segment LED Input specification RTD: DPt100Ω Sampling cycle 100ms Control output Indicator Display range -99.9... Read more

Rs. 3,134.00 Excl. VAT

  • Shipped today? Order within: Jul 01, 2026 17:00:00 -0400

    Description

    Data sheet Print

    Display method 3-digit 7-segment LED
    Input specification RTD: DPt100Ω
    Sampling cycle 100ms
    Control output Indicator
    Display range -99.9 to 99.9℃
    Power voltage 12-24VDC specialstring
    Display accuracy_RTD •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 48g(approx. 25g)
