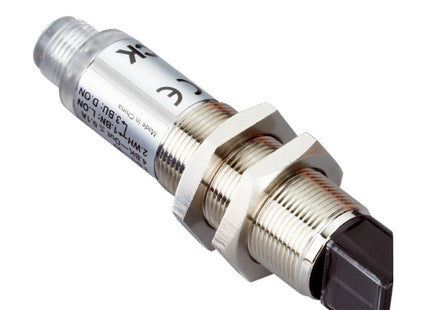

VTE180-2N41184 sick

Description

  • Manufacturer: SICK Sensors

  • Product Type: Cylindrical Photoelectric Sensor

  • Model: VTE180-2N41184

  • Part Number: 6043820

  • Detailed Technical Data:

    • Features:
      • Functional principle: Photoelectric proximity sensor
      • Functional principle detail: Energetic
      • Dimensions (W x H x D): 18 mm x 18 mm x 76.5 mm
      • Housing design (light emission): Cylindrical
      • Housing length: 76.5 mm
      • Optical axis: Radial
      • Sensing range max.: 1 mm ... 900 mm
      • Sensing range: 1 mm ... 650 mm
      • Focus: Approx. 1.2°
      • Type of light: Visible red light
      • Light source: LED
      • Light spot size (distance): Ø 30 mm (800 mm)
      • Angle of dispersion: Approx. 1.2°
      • Wave length: 645 nm
      • Adjustment: Potentiometer, 270° (Sensing range)
      • Special features: Average service life: 100,000 h at TU = +25 °C
    • Mechanics/Electronics:
      • Supply voltage: 10 V DC ... 30 V DC
      • Ripple: ± 10%
      • Current consumption: 30 mA
      • Switching output: NPN
      • Switching mode: Light/dark switching
      • Signal voltage NPN HIGH/LOW: Approx. VS – 1.8 V
      • Output current Imax.: ≤ 100 mA
      • Response time: ≤ 0.5 ms
      • Switching frequency: 1,000 Hz
      • Connection type: Cable, 4-wire, 2 m
      • Cable material: PVC
      • Conductor cross section: 0.18 mm²
      • Cable diameter: Ø 3.8 mm
      • Circuit protection: A, B, D
      • Protection class: III
      • Weight: 95 g

VTE180-2N41184 sick

Product form

Manufacturer: SICK Sensors Product Type: Cylindrical Photoelectric Sensor Model: VTE180-2N41184 Part Number: 6043820 Detailed Technical Data: Features: Functional principle: Photoelectric... Read more

Rs. 1,802.00 Excl. VAT

    Description

    • Manufacturer: SICK Sensors

    • Product Type: Cylindrical Photoelectric Sensor

    • Model: VTE180-2N41184

    • Part Number: 6043820

    • Detailed Technical Data:

      • Features:
        • Functional principle: Photoelectric proximity sensor
        • Functional principle detail: Energetic
        • Dimensions (W x H x D): 18 mm x 18 mm x 76.5 mm
        • Housing design (light emission): Cylindrical
        • Housing length: 76.5 mm
        • Optical axis: Radial
        • Sensing range max.: 1 mm ... 900 mm
        • Sensing range: 1 mm ... 650 mm
        • Focus: Approx. 1.2°
        • Type of light: Visible red light
        • Light source: LED
        • Light spot size (distance): Ø 30 mm (800 mm)
        • Angle of dispersion: Approx. 1.2°
        • Wave length: 645 nm
        • Adjustment: Potentiometer, 270° (Sensing range)
        • Special features: Average service life: 100,000 h at TU = +25 °C
      • Mechanics/Electronics:
        • Supply voltage: 10 V DC ... 30 V DC
        • Ripple: ± 10%
        • Current consumption: 30 mA
        • Switching output: NPN
        • Switching mode: Light/dark switching
        • Signal voltage NPN HIGH/LOW: Approx. VS – 1.8 V
        • Output current Imax.: ≤ 100 mA
        • Response time: ≤ 0.5 ms
        • Switching frequency: 1,000 Hz
        • Connection type: Cable, 4-wire, 2 m
        • Cable material: PVC
        • Conductor cross section: 0.18 mm²
        • Cable diameter: Ø 3.8 mm
        • Circuit protection: A, B, D
        • Protection class: III
        • Weight: 95 g
