Description
Range of product

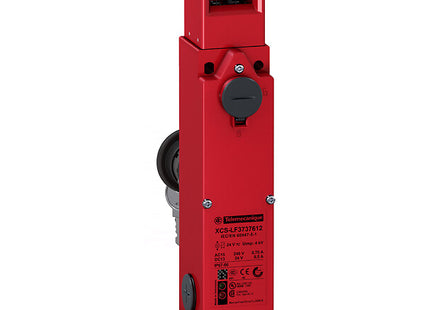

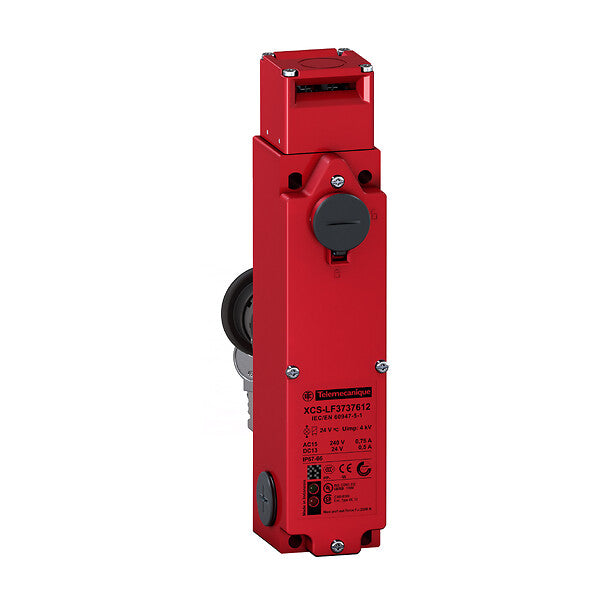

Telemecanique Safety switches XCS
Product or component type
Safety switch
Head type
Key operated turret head
Contacts type and composition
2 NC + 1 NO
Solenoid contacts type and composition
2 NC + 1 NO (slow-break, break before make)
Cable entry
3 entries tapped for M20 x 1.5
Electromagnet interlocking
By mushroom head push-button key release for escape release
locking on de-energisation and unlocking on energisation of solenoid
[Us] rated supply voltage
24 V - 15...10 %
Electrical connection
Spring terminal, clamping capacity: 1 x 1.5 mm² flexible or solid cable, spring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends
Local signalling
1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked
Signalling circuit voltage
24 V
