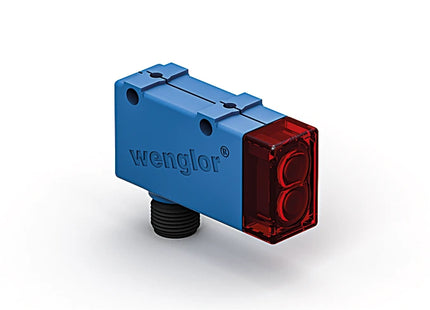

XM98PAH2

Description

Features at a Glance

  • Smallest recognizable part: 2,5 mm
  • Range: 15 m
  • Switching frequency: 3 kHz
  • Time delay

  • Optical Data

    Range 15,000 mm
    Reference Reflector/Reflector Foil RQ100BA
    Min. Distance to Reflector 80 mm
    Smallest Recognizable Part > 2,500 µm
    Switching Hysteresis  < 15 %
    Light Source Laser (red)
    Wavelength 655 nm
    Polarization Filter yes
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 2
    Max. Ambient Light 10,000 Lux
    Opening Angle 0.6 °
    Two-Lens Optic yes





    Electrical Data

    Supply Voltage 10 ... 30 V DC
    Current Consumption (Ub = 24 V) < 30 mA
    Switching Frequency 3 kHz
    Response Time 166 µs
    Off-Delay 5 ms
    Temperature Drift < 10 %
    Temperature Range -10 ... 60 °C
    Switching Output Voltage Drop < 2.5 V
    PNP Switching Output/Switching Current 200 mA
    Short Circuit Protection yes
    Reverse Polarity Protection yes
    Protection Class III

    Mechanical Data

    Setting Method Potentiometer
    Housing Material Plastic, PBT
    Full Encapsulation yes
    Degree of Protection IP67
    Connection M12 × 1; 4-pin
    Weight 27 g

    General Data

    Scope of delivery 1 × initial start-up instructions
    1 × laser warning sign
    1 × sensor





    Output

    PNP NC, PNP NO yes

    Adjustable parameters

    Circuit NC
    NC+NO
    NO

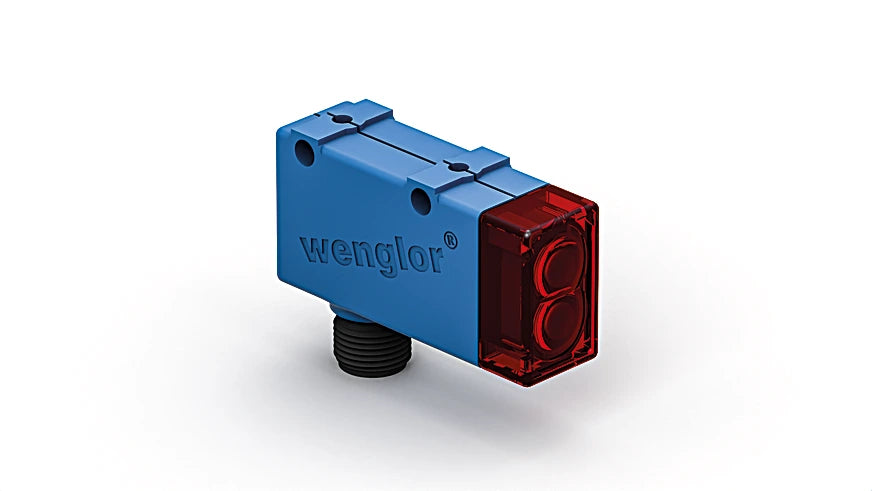

XM98PAH2

Product form

Features at a Glance Smallest recognizable part: 2,5 mm Range: 15 m Switching frequency: 3 kHz Time delay Optical Data... Read more

Rs. 21,646.00 Excl. VAT

    Description

    Features at a Glance

    • Smallest recognizable part: 2,5 mm
    • Range: 15 m
    • Switching frequency: 3 kHz
    • Time delay

    • Optical Data

      Range 15,000 mm
      Reference Reflector/Reflector Foil RQ100BA
      Min. Distance to Reflector 80 mm
      Smallest Recognizable Part > 2,500 µm
      Switching Hysteresis  < 15 %
      Light Source Laser (red)
      Wavelength 655 nm
      Polarization Filter yes
      Service Life (T = +25 °C) 100,000 h
      Laser Class (EN 60825-1) 2
      Max. Ambient Light 10,000 Lux
      Opening Angle 0.6 °
      Two-Lens Optic yes





      Electrical Data

      Supply Voltage 10 ... 30 V DC
      Current Consumption (Ub = 24 V) < 30 mA
      Switching Frequency 3 kHz
      Response Time 166 µs
      Off-Delay 5 ms
      Temperature Drift < 10 %
      Temperature Range -10 ... 60 °C
      Switching Output Voltage Drop < 2.5 V
      PNP Switching Output/Switching Current 200 mA
      Short Circuit Protection yes
      Reverse Polarity Protection yes
      Protection Class III

      Mechanical Data

      Setting Method Potentiometer
      Housing Material Plastic, PBT
      Full Encapsulation yes
      Degree of Protection IP67
      Connection M12 × 1; 4-pin
      Weight 27 g

      General Data

      Scope of delivery 1 × initial start-up instructions
      1 × laser warning sign
      1 × sensor





      Output

      PNP NC, PNP NO yes

      Adjustable parameters

      Circuit NC
      NC+NO
      NO
