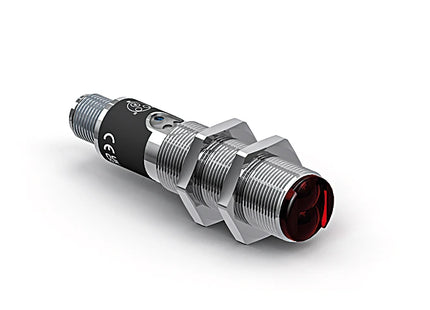

YD24PA3

Description

Optical Data

Range 150 mm
Setting Range 35 ... 150 mm
Switching Hysteresis  < 5 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1





Electrical Data

Supply Voltage 10 ... 30 V DC
Current Consumption (Ub = 24 V) < 25 mA
Switching Frequency 1,300 Hz
Response Time 385 µs
Temperature Drift < 5 %
Temperature Range -25 ... 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
FDA Accession Number 0820356-001

Mechanical Data

Setting Method Potentiometer
Housing Material Stainless steel, V2A (1.4305 / 303)
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 36 g

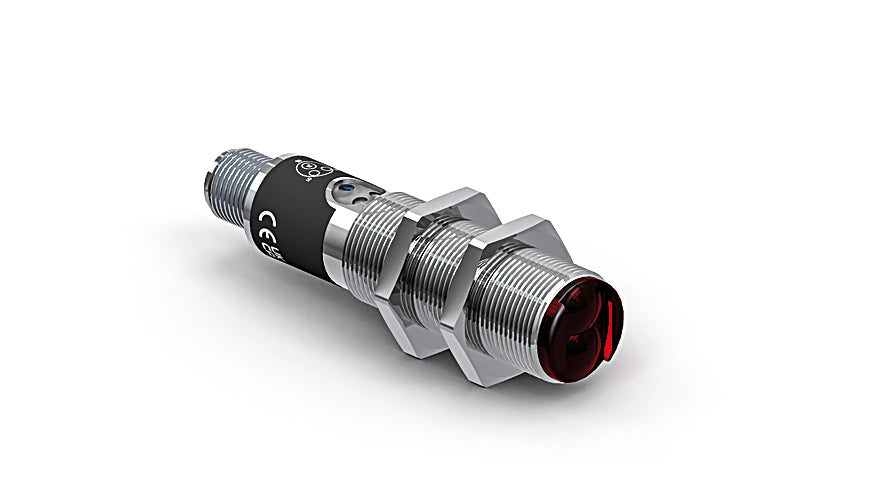

YD24PA3

Product form

Optical Data Range 150 mm Setting Range 35 ... 150 mm Switching Hysteresis  < 5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25... Read more

Rs. 25,581.00 Excl. VAT

    Description

    Optical Data

    Range 150 mm
    Setting Range 35 ... 150 mm
    Switching Hysteresis  < 5 %
    Light Source Laser (red)
    Wavelength 655 nm
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 2
    Max. Ambient Light 10,000 Lux
    Light Spot Diameter see Table 1





    Electrical Data

    Supply Voltage 10 ... 30 V DC
    Current Consumption (Ub = 24 V) < 25 mA
    Switching Frequency 1,300 Hz
    Response Time 385 µs
    Temperature Drift < 5 %
    Temperature Range -25 ... 60 °C
    Switching Output Voltage Drop < 2.5 V
    PNP Switching Output/Switching Current 200 mA
    Short Circuit Protection yes
    Reverse Polarity Protection yes
    Overload Protection yes
    Protection Class III
    FDA Accession Number 0820356-001

    Mechanical Data

    Setting Method Potentiometer
    Housing Material Stainless steel, V2A (1.4305 / 303)
    Full Encapsulation yes
    Degree of Protection IP67
    Connection M12 × 1; 4-pin
    Weight 36 g
