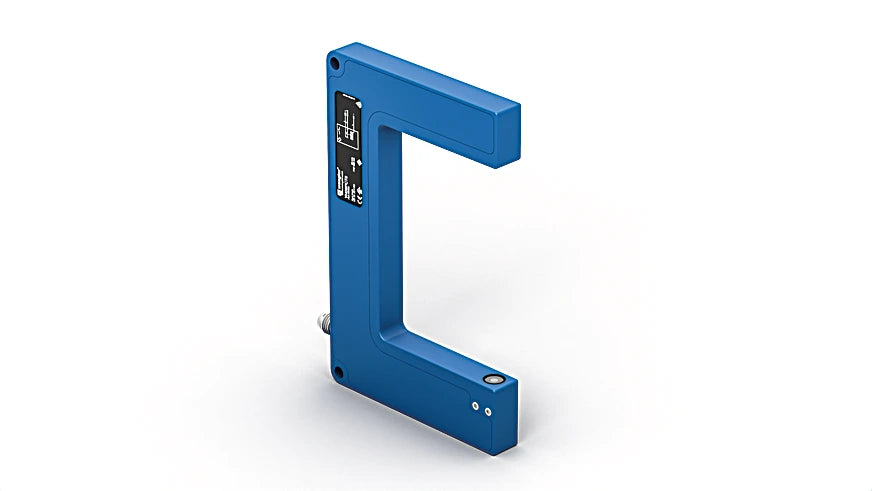

YH08PCT8

Description

Optical Data

Fork Width 80 mm
Smallest Recognizable Part 40 µm
Smallest Detectable Gap 50 µm
Switching Hysteresis  < 20 µm
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter 0.6 mm
Repeat Accuracy < 5 µm





Electrical Data

Supply Voltage 10 ... 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 10 kHz
Response Time 50 µs
Off-Delay 0 ... 100 ms
Temperature Range -25 ... 60 °C
Switching Output Voltage Drop < 1.5 V
PNP Switching Output/Switching Current 200 mA
Internal Load Switching Output 5,100 Ohm
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Teach Mode NT, MT
Protection Class III
FDA Accession Number 2510938-000

Mechanical Data

Setting Method Teach-In
Housing Material Plastic, PA
Steel, nickel-plated
Optic Cover Glass
Full Encapsulation yes
Degree of Protection IP67
Connection M8 × 1; 3-pin
Weight 131 g

Safety-relevant Data

MTTFd (EN ISO 13849-1) 1,436.4 a

General Data

Scope of delivery 1 × initial start-up instructions
1 × sensor





Output

PNP NO yes

Adjustable parameters

Circuit NC
NC/NO
NO

YH08PCT8

Product form

Optical Data Fork Width 80 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis  < 20 µm Light Source Laser (red)... Read more

Rs. 27,387.00 Excl. VAT

    Description

    Optical Data

    Fork Width 80 mm
    Smallest Recognizable Part 40 µm
    Smallest Detectable Gap 50 µm
    Switching Hysteresis  < 20 µm
    Light Source Laser (red)
    Wavelength 655 nm
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 1
    Max. Ambient Light 10,000 Lux
    Light Spot Diameter 0.6 mm
    Repeat Accuracy < 5 µm





    Electrical Data

    Supply Voltage 10 ... 30 V DC
    Current Consumption (Ub = 24 V) < 50 mA
    Switching Frequency 10 kHz
    Response Time 50 µs
    Off-Delay 0 ... 100 ms
    Temperature Range -25 ... 60 °C
    Switching Output Voltage Drop < 1.5 V
    PNP Switching Output/Switching Current 200 mA
    Internal Load Switching Output 5,100 Ohm
    Short Circuit Protection yes
    Reverse Polarity Protection yes
    Overload Protection yes
    Teach Mode NT, MT
    Protection Class III
    FDA Accession Number 2510938-000

    Mechanical Data

    Setting Method Teach-In
    Housing Material Plastic, PA
    Steel, nickel-plated
    Optic Cover Glass
    Full Encapsulation yes
    Degree of Protection IP67
    Connection M8 × 1; 3-pin
    Weight 131 g

    Safety-relevant Data

    MTTFd (EN ISO 13849-1) 1,436.4 a

    General Data

    Scope of delivery 1 × initial start-up instructions
    1 × sensor





    Output

    PNP NO yes

    Adjustable parameters

    Circuit NC
    NC/NO
    NO
