Estimated Lead Time : 1 - 10 working days.
-
Manufacturer : OPTEX FA
-

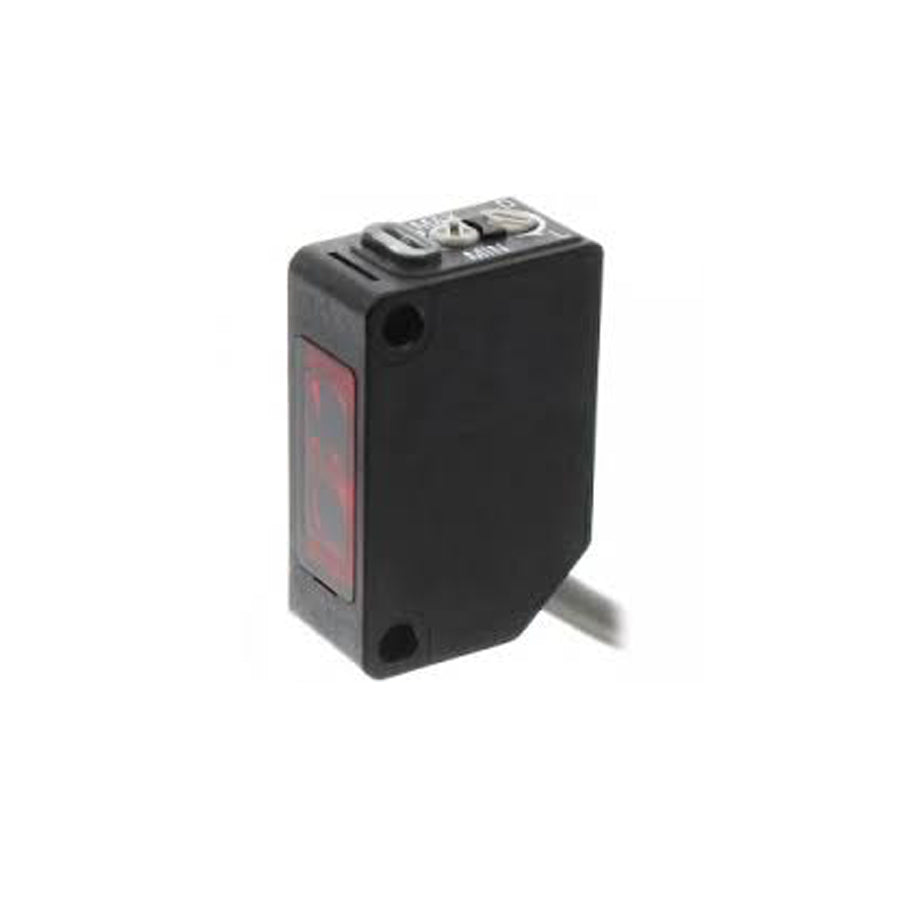

Product No. : Z2D-80P
-
Product Type : Photoelectric Sensors
-
Model : PNP - Cable type
-
Type : Diffuse-reflective type
-
Sensing distance : 0 to 1 m*2
-
Light source : 4 element red LED, wavelength 640 nm
-
Spot size : Approx. ø140 mm (at distance of 1 m)
-
Response time : 500 μs or less
-
Hysteresis : 20% Max
-
Distance adjustment : 1-turn potentiometer
-
Control output : NPN/PNP type Open collector Max. 100 mA/30 VDC
-
Output mode : Light ON / Dark ON selection switch
-
Connection type : Cable length - 2 m
-
Supply voltage : 10 to 30 VDC, including 10% ripple (p-p)
-
Current consumption : 15 mA or less
-
Applicable regulations : EMC directive (2004/108/EC)
-
Applicable standards : EN 60947-5-2
-
Company standards : Noise resistance : Feilen Level 4 cleared
-
Ambient temperature/humidity :
-
Ambient illuminance :
-
Degree of protection : IP67
