Automation Products
-
Relay BOX, TM-80□ Series (BOXTM-801)
Configured Specifications of BOXTM-801 Dimension width W 105 Dimension vertical H 90 Dimension depth D 53 Material Resin Protection function (environmentally resistant) IP65 Intermediate plate Without Circuit Board Usage location Indoor Terminal block capacity 15 Number of terminal block electrodes 8 Hole Processing Available Number of wire inlets, front 1 Number of wire inlets, side 2 Inlet size CTG22 Rated AC/DC600V Insulation Resistance DC 500 V - 100 MΩ (DC 500 V mega) Trusco Code -
Rs. 1,261.00
-
BOXTM-111L
Product Description IP67 Terminal blocks : 11poles/M3.5/2.0㎟/15A/600V Direct mountiong/Rail mounting 106x60.5x90
Rs. 1,649.00
-
Relay BOX, TM-200□ Series with Terminal Block (BOXTM-2001)
Configured Specifications of BOXTM-2001 Dimension width W 185 Dimension vertical H 120 Dimension depth D 69 Material Resin Protection function (environmentally resistant) IP65 Intermediate plate Without Circuit Board Usage location Indoor Terminal block capacity 15 Number of terminal block electrodes 20 Hole Processing NA Number of wire inlets, front 0 Number of wire inlets, side 0
Rs. 3,395.00
-
TOGI JAPAN BOXTM-1001, 600V
Voltage 600V Part Name Switches Current 15A Material Metal Usage/Application - Industrial Automation - Electrical Control Panels - Wiring and Connection Systems - Organizing and Availability In Stock
Rs. 1,455.00
-
RION VP-51L/2M Test Cable
Output Type:VP-51A/2M DIY Supplies:Metalworking
Rs. 13,500.00
-

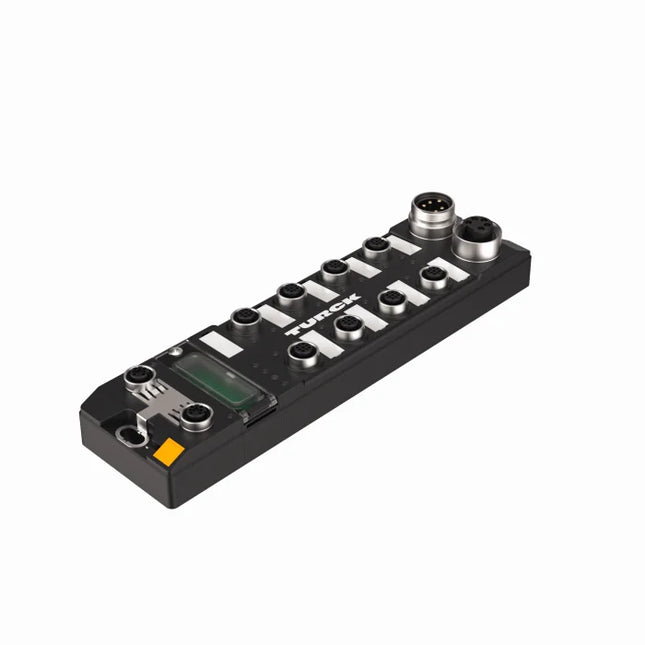

TBEN-L5-8IOL IO LINK
Number of Channels 8 Brand turck Mounting Type Panel Model Name/Number TBEN-L5-8IOL Warranty Period 1 year Type IO link Availability In Stock
Rs. 49,400.00
-

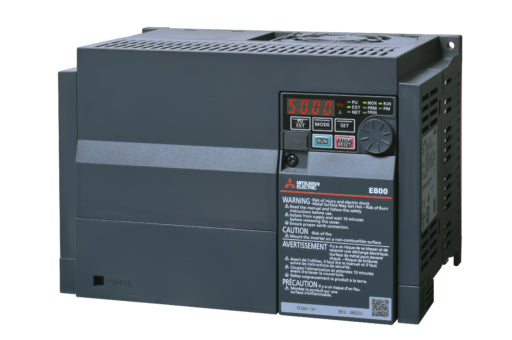

MODEL- DRIVE FR-E840-0120-4-60
FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800 RS485 INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 480 Max. Permissible Voltage (V) 528 Current Type AC Phases 3 Rated Output Current LD (A) 17,5 Rated Output Current ND (A) 12 Rated Motor Capacity LD (kW) 7,5 Rated Motor Capacity ND (kW) 5,5 Frequency Range (Hz) 0,2–590 Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter NO Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display BUILT-IN Display Type 4 DIGITS LED PLC Function YES Program Memory 2K Program Memory Unit STEPS Integrated Digital Inputs 7 Digital Outputs (Transistor) 2 Digital Outputs (Relay) 1 Integrated Analogue Inputs 2 Integrated Analogue Outputs 1 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 1 USB 1 (MINI B) Ethernet Port NO Built-In Network MODBUS-RTU Leakage Current (mA) 1,2 Power Loss LD (W) 223 Power Loss ND (W) 136 Protection Class IP20 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT Product Dimensions & Weight Width (mm) 220 Height (mm) 150 Depth (mm) 147 Weight (kg) 2,4 Life Cycle Predecessor 240985 Serial No. on the Box QR1 Campaigns Selling Status Standard
Rs. 31,500.00
-

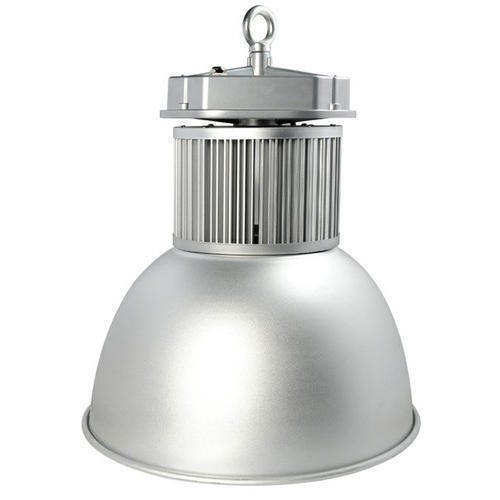

MODEL- HIGH BAY LIGHT 120 WATT MODEL- BY 71150F MAKE PHILIPS
Usage/Application Industrial Model Name/Number 120WHB Brand Philips Beam Angle WB Power 120W Lighting Color Cool White IP Rating IP65 Body Material Aluminium Led Model NA Lighting Type LED Input Voltage 220-240V Warranty 3 years Features IP-65 , High ambient temperature , IK-07 rated Country of Origin Made in India Availability In Stock
Rs. 4,600.00
-
MODEL- LED SLIM LIGHT SIZE 6"X6" SQURE WATT-18 , WHITE COLOUR MAKE PHILIPS
Brand Philips Colour Natural White Material Polycarbonate Style Slim Surface | 18W Light fixture form Close to Ceiling Room Type Bedroom Product Dimensions 10L x 10W x 10H Centimeters Indoor/Outdoor Usage Indoor Power Source Electric Installation Type Surface Mount
Rs. 710.00
-
MODEL- CPU :R08ENCPU MAKE MITSUBISHI
Brand Mitsubishi E Plus Instruction 9.8 (floating-point addition) (ns) Structured Text IF Instruction 1.96 ns Program Memory 320K byte Device Label Memory 1188K byte Data Memory 5M byte LD Instruction 0.98 ns MOV Instruction 1.96 ns Item R08ENCPU Control Method Stored program cyclic operation IO Control Mode Refresh mode (Direct access I/O is available by specifying direct access I/O (DX,DY)) Number of IO Points 4096 [X/Y] (point) Constant Scan 0.2...2000 (Setting available in 0.1 ms increments) Program Capacity 80K step PC MIX Value 419 (instructions/Micro Sec) Availability In Stock
Rs. 85,000.00
-

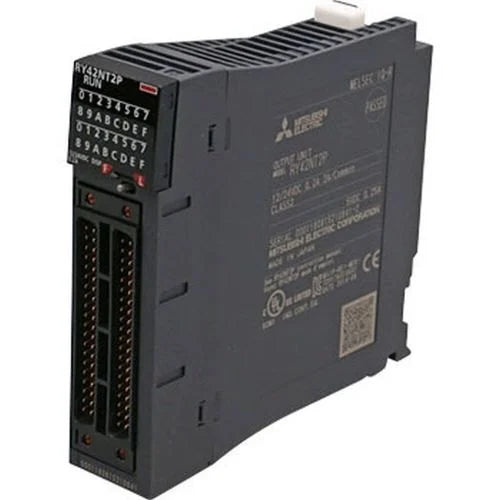

MODEL- DIGITAL OUTPUT MODULE MODEL : RY42NT2P MAKE MITSUBISHI
Brand Mitsubishi Channels 64 Signal Type Relay Output Voltage 24 V DC Mounting Rack Mount Int. Current Consumption (A) 0.25 Rated Load Voltage (VDC) 12-24 Output Type TRANSISTOR Series R PLC Availability In Stock
Rs. 19,920.00
-

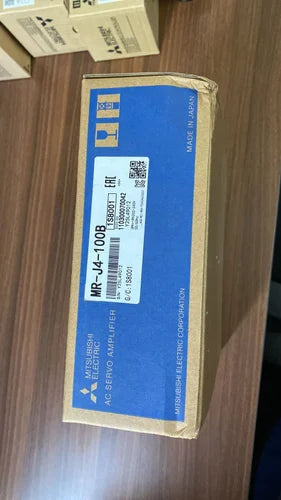

MODEL- SERVO AMPLIFIER MODEL : MR-J4-100B MAKE MITSUBHISHI
Motor Power 2 HP Brand Mitsubishi Electric Output Power 1Kw Output Current 6Amp Input Voltage Ac 200 to 240 Input Phase 3 - Phase Model Name/Number MR-J4-100B Body Material Abs Plastic Availability In Stock
Rs. 45,000.00
