KEY SF 203 Code:21670072-56Weight:0.004 kgCustoms tariff:84799070Country of origin:DEStatus:AVAILABLE

Read more less

Specification Value Housing Cylindrical thread design, Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Flush Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP67 1) Items supplied Mounting nut, brass, nickel-plated (2x)

Read more less

Product Specifications Product Attribute Attribute Value Alternate Mfr Part Number E3ZT81K2M Brand Omron Automation Connection Type 2m Cable IP Rating IP67 Light Source Infrared LED Manufacturer Part Number E3Z-T81K 2M Measurement Range 15 m Output PNP Sensing Mode Through Beam Series E3Z Series Special Features Oil Resistant Supply Voltage 12-24 VDC Type Through Beam Sensors

Read more less

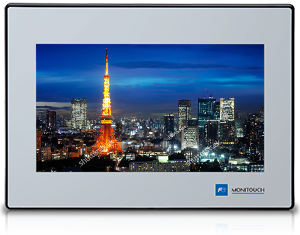

Specifications of TS1070S/TS1070Si Model TS1070S TS1070Si Main unit specifications Screen size 7.0” widescreen Display device TFT color Resolution 800 × 480 dots Colors 65,536 colors Backlight LED Touch screen Analog registive Certifications CE / KC / UL / cUL User Memory FROM 26 MB SRAM 128 KB External interface specifications COM1D-Sub 9 pin (female) RS-422/RS-485(4-wire/2-wire)Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bitsBaud rate: 4800,9600,19200,38400,57600,76800,115200,187500*1 bps COM2/COM3D-Sub 9 pin (male) COM2:RS-232C COM3: RS-422/RS-485(2-wire)Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bitsBaud rate: 4800,9600,19200,38400,57600,76800,115200 bps LAN RJ-45 - 1 ch USB-A 1 ch USB mini-B 1 ch Power supply Permissible range of voltage 24 V DC ± 10 % Power consumption(max. rating) 11W or less Physical environment Ambient temperature 0 to 50°C*2 Ambient humidity 85% RH or lower(non-condensing)*2 Contamination level 2 Operation altitude 2,000 m or less Atmosphere Not to be exposed to corrosive gas, or conductive dust Storage ambient temperature -10 to 60°C*2 Storage ambient humidity 85% RH or lower(non-condensing)*2 Installation conditions Protective structure Panel front IP65 equivalent (when using waterproof gasket*3), IP40 equivalent (when not using waterproof gasket*3) Rear case IP20 equivalent DimensionsW × H × D 198.8 × 141.8 × 38.0 mm Panel cutout 189.0 × 134.0 (+0.5/-0)mm

Read more less

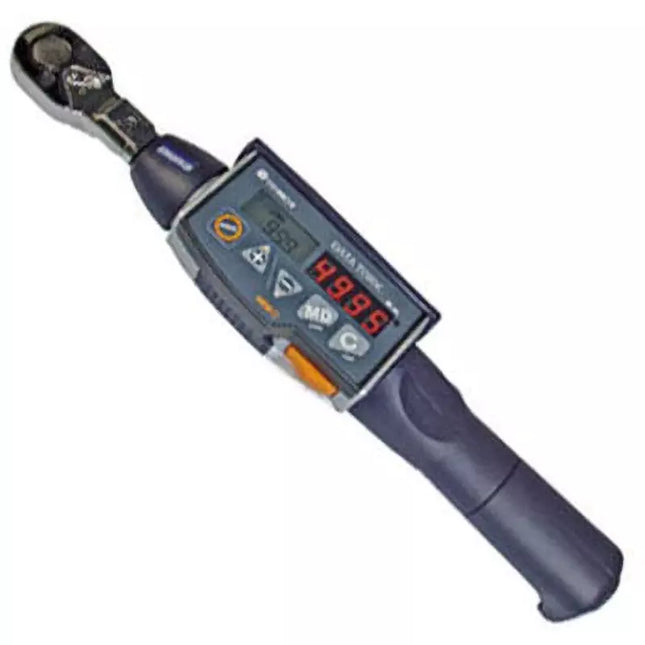

specifications Type of Product Digital Torque Wrench Weight 470 g Model No CEM20N3X10D Country of Origin Japan Application Inspection / Tightening Name of Manufacturer/Packer/Importer Tohnichi Manufacturing Co., Ltd. Overall Length (mm) 214 Minimum Scale (Nm) 0.02 Load direction Left and Right Torque Adjustment Range (Nm) 4-20 Accuracy (%) ±1 Head Shape Ratchet Shape Monotaro ID 37412812 Trusco Part No. 403-2527 Pack of 1 Pcs

Read more less

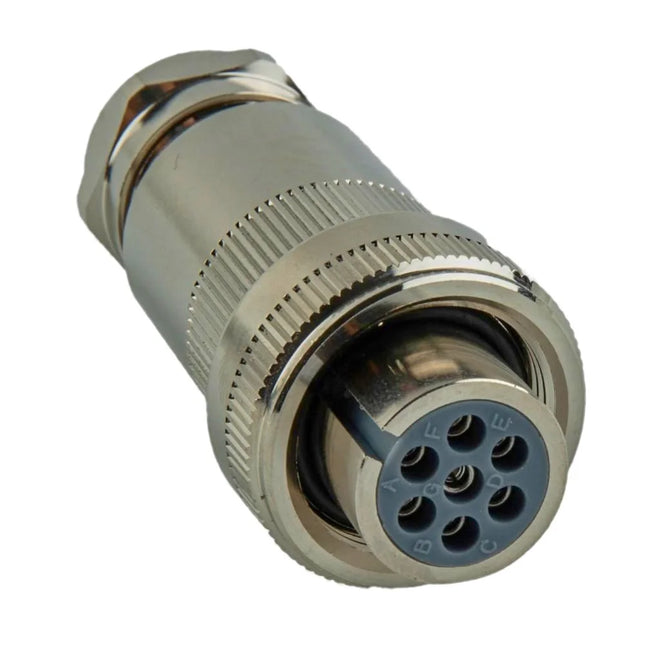

rand ATOS Reference 2529 In stock 2 Items Data sheet Mass 0.1 kg Designation ZM-7P ATOS Connection MIL-C-5015 Protection IP67 Abbreviated name ZM-7P Condition New Main connector for integrated proportional valve control card.ZM-7P ATOS

Read more less

FA-COM PLC: Serial Com Module Series MELSEC-F SERIES Type FX3U Interface RS-232 Conformity CE COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 19,3 Height (mm) 46,1 Depth (mm) 62,7 Weight (kg) 0,02 Product Packaging Cardboard (g) 0 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 26 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

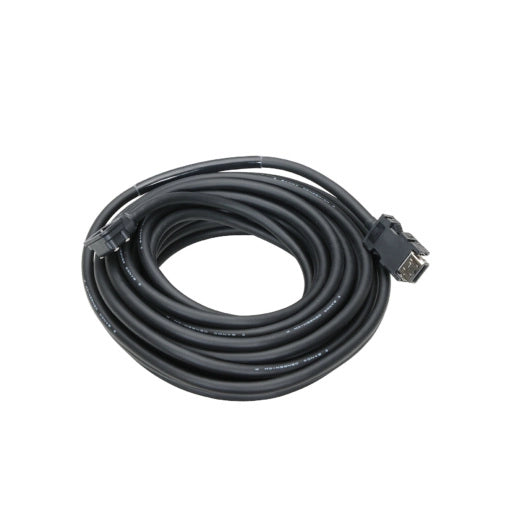

FA-Servo-Motion: Cable Type ENCODER CABLE Cable Length (m) 10 Flexibility HIGH FLEXIBLE Protection Class IP65 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT Product Dimensions & Weight Weight (kg) 0,83 Product Packaging Cardboard (g) 64 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 10 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Specifications Model LR-ZB100P Type Distance based laser sensor Shape Rectangular Output PNP Cable connection 2 m cable Detectable distance 35 to 100 mm (650 to 0)*1 Standard detectable deviation 35 to 50 mm: 1.5 mm50 to 100 mm: 3 mm Display resolution 2 (0.2 mm) Spot diameter Approx. 2 × 1 mm at 100 mm Response time 1.5 ms / 10 ms / 50 ms selectable Light source Type Red laser (660 nm) Laser class Class 1 laser product(IEC60825-1, FDA (CDRH) Part1040.10*2) Function Indicator 3-digit 7-segment display (red),output indicator (yellow),DATUM indicator (orange),1 spot indicator (green) Timer OFF/ON delay/OFF delay/One-shot Rating Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS Power consumption 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12V) Specifications Control output PNP Open collector,Applied voltage 30 VDC or less, Control current 100 mA or less,Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA Protection circuit Protection against reverse power connection, output overcurrent, output surge, reverse output connection Output operation Light-ON / Dark-ON selectable External input Input time calibration: 35 ms or more ON, 35 ms or more OFFLaser emission stop: 2 ms or more ON, 20 ms or more OFFShort-circuit current NPN: 1 mA or less/PNP: 2 mA or less Environmental resistance Enclosure rating IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3 Insulation resistance 20 MΩ or more (500 VDC) Ambient light Incandescent lamp: 4,000 lux or lessSunlight: 8,000 lux or less*4 Ambient temperature -10 to +50 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Storage temperature -25 to +75 °C (No freezing) Withstand voltage 1,000 VAC, 50/60 Hz, 1 min Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Material Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating,Packing/Connector ring: FKM Accessories Instruction Manual,Certification/Identification label (FDA) Weight Approx. 110 g (Including cable)

Read more less

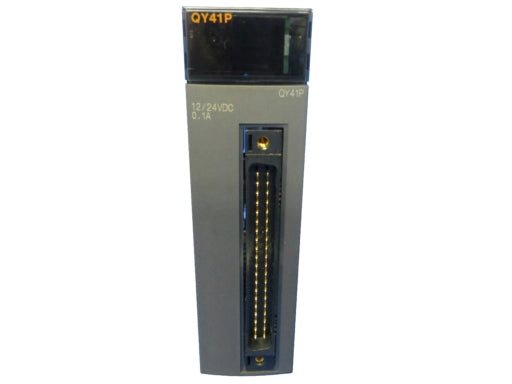

FA-MOD PLC: Digital Output Module Series MELSEC-Q SERIES Type TRANSISTOR OUTPUT (SINK) Power Supply (V) 12-24 Current Type DC Occupied I/O Points on PLC 32 Integrated Digital Outputs 32 Output Type TRANSISTOR Output Logic SINK Rated Load Voltage (VDC) 12/24 Wiring CONNECTOR Int. Current Consumption (A) 0,105 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,117 Product Packaging Cardboard (g) 40 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 0 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

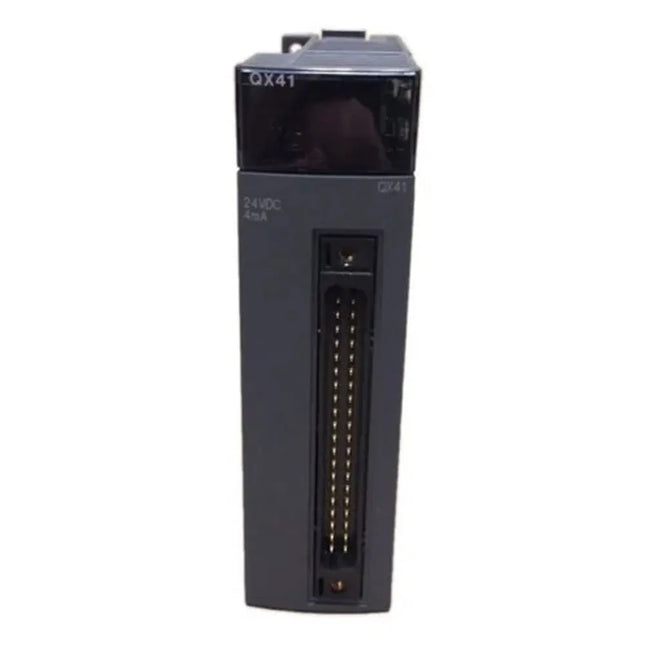

Brand Mitsubishi Current 0.1 A Model Name/Number QX41 Dimensions 27 x 98 x 90 mm Instrument Type DC INPUT (PLUS COMMON) Series Name MELSEC-Q SERIES Occupied I/O Points on PLC 32 Rated Input Voltage (VDC) 24 Wiring Connector Int. Current Consumption (A) 0,075 Wight 0.15 Availability In Stock
