Specifications

Read more less

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 330A 200kW@440V. It provides a 48-130V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

Read more less

Brand Schneider Electric Coil Voltage 200 → 500 V ac/dc Number of Poles 3 Contact Current Rating 700 A Range TeSys F Series LC1G500 Function Motor Control Normal State Configuration 1 NO + 1 NC Better World Product (Find out more) Yes Better World Verification Green Premium Country of Origin China

Read more less

Usage/Application Industrial Brand Multispan Voltage Type AC Memory Yes/No (Configurable) Power Supply 230V AC +-10% Dimension 96 X 96 X 42mm (H X W X D) Panel Cutout 92 X 92mm Input Sensor NPN/PNP Proximity Switch/Micro Switch (Configurable)/ 230V AC Pulse/ Encoder (Factory Set) Range 0-9999/0-999.9 Count Output 1 Relay 1C/O 5A, 230V AC (Resistive Load) Count Direction Up/Down (Cofigurable) Reset Auto Rest/Manual Reset/Reset At Back Frequency 50Hz Model Number PC 1006D Availability In Stock Features: 4+4 Digit , 7 segment LED NPN/PNP Proxy , Micro-switch, Encoder Pulse input Auto/Manual reset Up to 2 set point , 2 relay Counting direction Up/Down With memory retention Dual set Point, Scale Factor And 2 Relay Option Aviable On Customer Request In PC-1044, PC2044

Read more less

Brand CATA Colour white Electric fan design Exhaust Fan Power Source Electric Style Modern Special Feature High Velocity Noise Level 1 Decibels Wattage 230 Finish Type Smooth Air Flow Capacity 900 Cubic Meters Per Hour See less

Read more less

Product Details: Usage Power Steering Power Source Manual Application Industrial Color Black Features Good Body Material Stainless Steel Warranty 6 Months Click to View more

Read more less

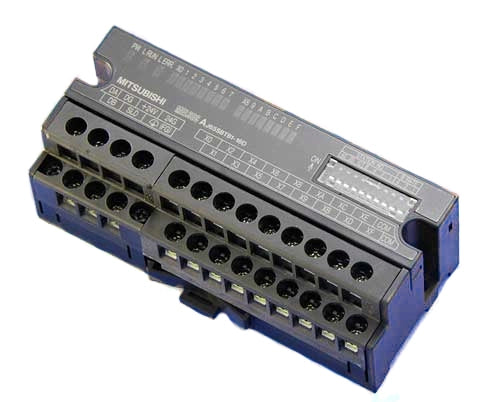

FA-MOD PLC: Digital Input Module Series CC-LINK Type REMOTE DC INPUT Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Inputs 16 Rated Input Voltage (VDC) 24 Wiring SCREW Int. Current Consumption (A) 0,035 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT Product Dimensions & Weight Width (mm) 118 Height (mm) 50 Depth (mm) 40 Weight (kg) 0,18

Read more less

FA-MOD PLC: Analogue I/O Module Series MELSEC-Q SERIES Type ANALOG INPUT/OUTPUT COMBINED Power Supply (V) 24 Current Type DC Occupied I/O Points on PLC 16 Integrated Analogue Inputs 4 Integrated Analogue Outputs 2 Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5 Input Current Range (mA) 0-20; 4-20 Output Voltage Range (V) -10-10; 0-5; 1-5 Output Current Range (mA) 0-20; 4-20 Wiring SCREW Int. Current Consumption (A) 0,17 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 112 Weight (kg) 0,23
