Sensor type: Retro-reflex sensor for clear glass recognition Operating range: 0 to 1500 mm Reference reflector: RQ100BA Clear glass detection: Yes Light source: Red light Polarisation filter: Yes Optical design: Single-lens, no blind spot Light spot diameter: 20 mm @ 0.2 m, 90 mm @ 1 m, 130 mm @ 1.5 m Smallest detectable part: 0.7 mm @ 0.2 m, 6 mm @ 1 m, 10 mm @ 1.5 m Switching hysteresis: Less than 5% Max ambient light: 10,000 Lux Service life (@ +25 °C): 100,000 h Operating voltage: 10 to 30 V DC Operating voltage with IO-Link: 18 to 30 V DC Switching frequency: 2000 Hz (normal), 3500 Hz (speed mode) Response time: 0.25 ms (normal), 0.14 ms (speed mode) Switching output: PNP/NPN, NO/NC, antivalent (configurable) Switching current: 100 mA max Protection features: Short circuit, overload, reverse polarity Interface: IO-Link V1.1 Protection class: III Setting method: Potentiometer Mounting: M3 threaded holes Connection: M8 x 1, 4-pin male Housing material: Plastic Optic cover: PMMA Protection rating: IP67, IP68 Temperature range: -40 to +60 °C Dimensions: 15 x 32 x 61 mm (W x H x D) Mounting torque: M3 screws, 0.5 Nm Control panel functions: Switching distance adjustment, status/contamination warning, supply voltage indicator Recommended reflectors: RQ100BA, RE18040BA, RR84BA, RE9538BA

Read more less

Features at a Glance Condition monitoring IO-Link 1.1 Special for glass, PET and films No blind spot from single-lens optics

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Brand Wenglor Origin Mainland China MPN does not apply UPC Does not apply Country of Origin China

Read more less

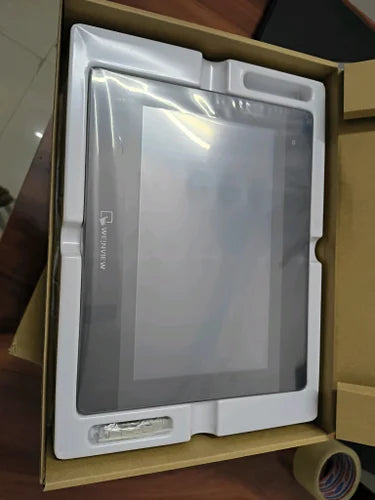

Product Specifications Processor Type Cortex-A8 600MHz Weight Approx. 1.1 kg Application Industrial Automation, Process Control Control Type Touch Screen Features High-resolution display, multi-language support, remote monitoring, SD card slot Mounting Type Panel Mount Phase Single Phase IP Rating IP65 (front panel) Screen Size 10.1 Inch TFT Automation Grade Automatic Frequency 50/60 Hz Cable Length Customizable Connectivity Type Ethernet, Serial (RS232/RS485), USB Remote Control Yes Material Plastic enclosure with aluminum front panel Power 24 V DC Temperature 0AdegC to 50AdegC (Operating) Voltage 24 V DC Product Unit 10 Piece/Pieces Currency INR Returnable No Moq 1 Price 26500.00 INR (Approx.) Packsize 1 Brand Name Weintek HMI Stock Quantity 55 Mop 1 Unit Type Piece/Pieces Price Type fixed Minimum Order Quantity 1 Minimum Ordered Packs 1 GSTIN 0%

Read more less

Product Specifications Processor Type Cortex-A8 600MHz Weight Approx. 1.1 kg Application Industrial Automation, Process Control Control Type Touch Screen Features High-resolution display, multi-language support, remote monitoring, SD card slot Mounting Type Panel Mount Phase Single Phase IP Rating IP65 (front panel) Screen Size 10.1 Inch TFT Automation Grade Automatic Frequency 50/60 Hz Cable Length Customizable Connectivity Type Ethernet, Serial (RS232/RS485), USB Remote Control Yes Material Plastic enclosure with aluminum front panel Power 24 V DC Temperature 0AdegC to 50AdegC (Operating) Voltage 24 V DC Product Unit 10 Piece/Pieces Currency INR Returnable No Moq 1 Price 26500.00 INR (Approx.) Packsize 1 Brand Name Weintek HMI Stock Quantity 55 Mop 1 Unit Type Piece/Pieces Price Type fixed Minimum Order Quantity 1 Minimum Ordered Packs 1 GSTIN 0%

Read more less

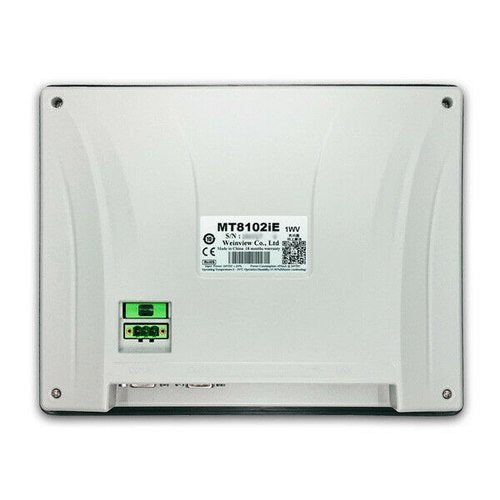

Display Size 10 inch Screen Size 10.1" Touch Screen Type TFT LCD Brand Weintek / Weinview Operating Temperature -10 - 50 degree c Voltage 12 V Availability In Stock

Read more less

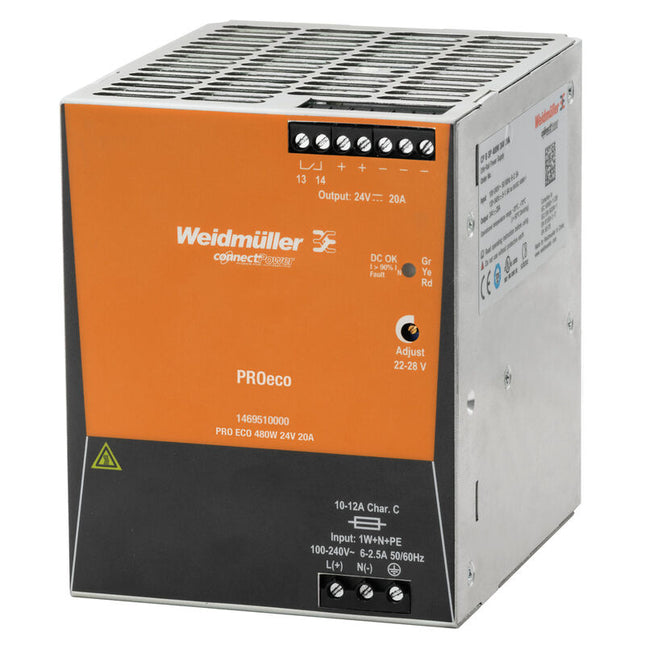

ROHS Conform  UL File Number Search UL Website Certificate no. (cULus) E258476  General ordering data Version Power supply, switch-mode power supply unit, 24 V  Order No. 1469510000  Type PRO ECO 480W 24V 20A  GTIN (EAN) 4050118275483  Qty. 1 items Delivery status This article will no longer be available in the future.  Last order date 30.12.2026  Alternative product 3025590000 Dimensions and weights Depth 120 mm Depth (inches) 4.724 inch Height 125 mm Height (inches) 4.921 inch Width 100 mm Width (inches) 3.937 inch Net weight 1,557 g Temperatures Storage temperature -40 °C...85 °C  Operating temperature -25 °C...70 °C  Environmental Product Compliance RoHS Compliance Status Compliant with exemption  RoHS Exemption (if applicable/known) 7a, 7cI  REACH SVHC Lead 7439-92-1  SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d  Input AC current consumption 2,37 A @ 230 V AC / 5,2 A @ 110 V AC  AC input voltage range 85...264 V AC (derating at 100 V AC)  Connection system Screw connection  DC current consumption 1,55 A @ 370 V DC / 4,65 A @ 120 V DC  DC input voltage range 80...370 V DC (Derating @ 120 V DC)  Frequency range AC 47...63 Hz  Input fuse (internal) Yes  Inrush current max. 5 A  Nominal power consumption 527.5 VA Rated input voltage 100...240 V AC  Recommended back-up fuse 6 A / DI, safety fuse16 A, Char. B, circuit breaker6…8 A, Char. C, circuit breaker  Surge protection Varistor  Output Capacitive load unrestricted  Connection system Screw connection  Continuous output current @ UNominal 20 A @ 55 °C 15 A @ 70 °C  Nominal output current for Unom 20 A @ 55 °C  Output power 480 W Output voltage, max. 28 V Output voltage, min. 22 V Output voltage, note (adjustable via potentiometer)  Overload protection Yes  Parallel connection option yes, max. 3  Protection against inverse voltage Yes  Ramp-up time ≤ 100 ms  Rated output voltage 24 V DC ± 1 %  Residual ripple, breaking spikes <50 mVPP @ 24 V DC, IN  General data AC failure bridging time @ Inom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC  Degree of efficiency 91%  Earth leakage current, max. 3.5 mA Housing version Metal, corrosion resistant  Indication Green LED (Uoutput > 21.6 V DC) Yellow LED (loutput > 90 % IRated typ. ) red LED (overload, overtemperature, short-circuit, Uoutput <20.4 V DC)  Max. perm. air humidity (operational) 5 %…95 % RH  Mounting position, installation notice on terminal rail TS 35  MTBF According to Standard: SN 29500 Operating time (hours), min.: 1,500,000 h Ambient temperature: 25 °C Input voltage: 230 V Output power: 480 W Duty cycle: 100 % According to Standard: SN 29500 Operating time (hours), min.: 679,000 h Ambient temperature: 40 °C Input voltage: 230 V Output power: 480 W Duty cycle: 100 % Operating altitude ≤ 3000 m  Power factor (approx.) > 0.98…230 V AC / > 0.98…115 V AC  Power loss, idling 5 W Power loss, nominal load 43 W Protection against over-heating Yes  Protection against reverse voltages from the load 30…35 V DC  Protection degree IP20  Short-circuit protection Yes  Surge voltage category II  EMC / shock / vibration Interference immunity test acc. to EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (burst) EN 61000-4-5 (surge) EN 61000-4-6 (conducted) EN61000-4-8 (Fields) EN61000-4-11 (Dips)  Limiting of mains voltage harmonic currents According to EN 61000-3-2  Noise emission in accordance with EN55032 Class B  Shock resistance IEC 60068-2-27 15 g In all directions  Vibration resistance IEC 60068-2-6 1 g according to EN 50178  Insulation coordination Insulation voltage input / earth 2 kV Insulation voltage output / earth 0.5 kV Insulation voltage, input/output 3 kV Pollution severity 2  Protection class I, with PE connection  Surge voltage category II  Electrical safety (applied standards) Electrical machine equipment Acc. to EN60204  For use with electronic equipment Acc. to EN50178 / VDE0160  Protection against dangerous shock currents Acc. to VDE0106-101  Protective separation / protection against electrical shock VDE0100-410 / acc. to DIN57100-410  Safety extra-low voltage SELV acc. to IEC 60950-1 PELV according to EN 60204-1  Safety transformers for switch-mode power supplies According to EN 61558-2-16  Connection data (input) Conductor cross-section, AWG/kcmil , max. 12 AWG Conductor cross-section, AWG/kcmil , min. 26 AWG Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection  Number of terminals 3 for L/N/PE  Tightening torque, max. 0.6 Nm Tightening torque, min. 0.5 Nm Wire connection cross section, flexible (input), max. 2.5 mm² Connection data (output) Conductor cross-section, AWG/kcmil , max. 10 AWG Conductor cross-section, AWG/kcmil , min. 26 AWG Conductor cross-section, flexible , max. 2.5 mm² Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection  Number of terminals 7 (++,---,13,14)  Tightening torque, max. 0.6 Nm Tightening torque, min. 0.5 Nm Signalling Contact load (NO contact) max. 30 V DC / 1 A  Floating contact Yes  Relay on/off Output voltage >21.6 V DC/ <20.4 V DC, overload  Classifications ETIM 8.0 EC002540  ETIM 9.0 EC002540  ETIM 10.0 EC002540  ECLASS 14.0 27-04-07-01  ECLASS 15.0 27-04-07-01

Read more less

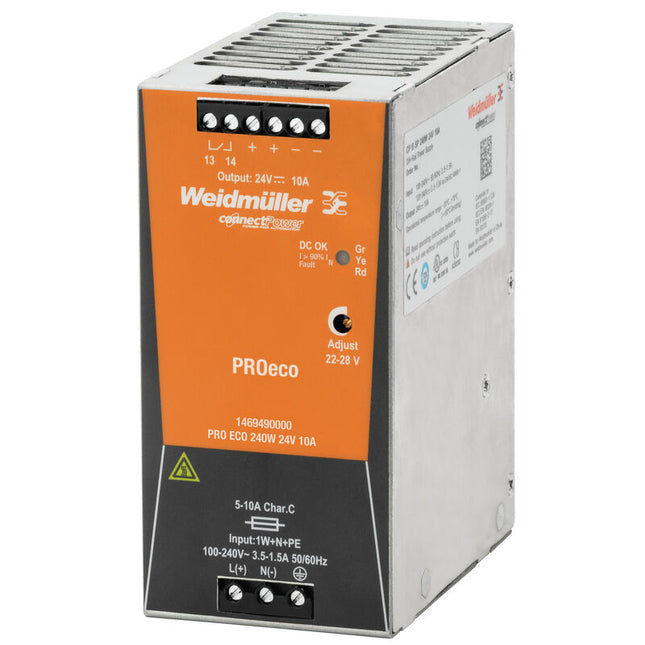

General ordering data Version Power supply, switch-mode power supply unit, 24 V  Order No. 1469490000  Type PRO ECO 240W 24V 10A  GTIN (EAN) 4050118275599  Qty. 1 items Delivery status This article will no longer be available in the future.  Last order date 30.12.2026  Alternative product 3025580000 Dimensions and weights Depth 100 mm Depth (inches) 3.937 inch Height 125 mm Height (inches) 4.921 inch Width 60 mm Width (inches) 2.362 inch Net weight 1,002 g Temperatures Storage temperature -40 °C...85 °C  Operating temperature -25 °C...70 °C  Environmental Product Compliance RoHS Compliance Status Compliant with exemption  RoHS Exemption (if applicable/known) 7a, 7cI  REACH SVHC Lead 7439-92-1  SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d  Input AC current consumption 1,23 A @ 230 V AC / 2,47 A @ 110 V AC  AC input voltage range 85...264 V AC (derating at 100 V AC)  Connection system Screw connection  DC current consumption 1,18 A @ 370 V DC / 2,4 A @ 120 V DC  DC input voltage range 80...370 V DC (Derating @ 120 V DC)  Frequency range AC 47...63 Hz  Input fuse (internal) Yes  Inrush current max. 15 A  Nominal power consumption 266.7 VA Rated input voltage 100...240 V AC  Recommended back-up fuse 4 A / DI, safety fuse10 A, Char. B, circuit breaker3...4 A, Char. C, circuit breaker  Surge protection Varistor  Output Capacitive load unrestricted  Connection system Screw connection  Continuous output current @ UNominal 10 A @ 55 °C 6.25 A @ 70°C  Nominal output current for Unom 10 A @ 55 °C  Output power 240 W Output voltage, max. 28 V Output voltage, min. 22 V Output voltage, note (adjustable via potentiometer)  Overload protection Yes  Parallel connection option yes, max. 5  Protection against inverse voltage Yes  Ramp-up time ≤ 100 ms  Rated output voltage 24 V DC ± 1 %  Residual ripple, breaking spikes <50 mVPP @ 24 V DC, IN  General data AC failure bridging time @ Inom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC  Degree of efficiency 90%  Earth leakage current, max. 3.5 mA Housing version Metal, corrosion resistant  Indication Green LED (Uoutput > 21.6 V DC) Yellow LED (loutput > 90 % IRated typ. ) red LED (overload, overtemperature, short-circuit, Uoutput <20.4 V DC)  Max. perm. air humidity (operational) 5 %…95 % RH  Mounting position, installation notice on terminal rail TS 35  MTBF According to Standard: SN 29500 Operating time (hours), min.: 2,000,000 h Ambient temperature: 25 °C Input voltage: 230 V Output power: 240 W Duty cycle: 100 % According to Standard: SN 29500 Operating time (hours), min.: 834,000 h Ambient temperature: 40 °C Input voltage: 230 V Output power: 240 W Duty cycle: 100 % Operating altitude ≤ 3000 m  Power factor (approx.) > 0.94 @ 230 V AC / > 0.99 @ 115 V AC  Power loss, idling 2 W Power loss, nominal load 24 W Protection against over-heating Yes  Protection against reverse voltages from the load 30…35 V DC  Protection degree IP20  Short-circuit protection Yes  Surge voltage category II  EMC / shock / vibration Interference immunity test acc. to EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (burst) EN 61000-4-5 (surge) EN 61000-4-6 (conducted) EN61000-4-8 (Fields) EN61000-4-11 (Dips)  Limiting of mains voltage harmonic currents According to EN 61000-3-2  Noise emission in accordance with EN55032 Class B  Shock resistance IEC 60068-2-27 15 g In all directions  Vibration resistance IEC 60068-2-6 1 g according to EN 50178  Insulation coordination Insulation voltage input / earth 2 kV Insulation voltage output / earth 0.5 kV Insulation voltage, input/output 3 kV Pollution severity 2  Protection class I, with PE connection  Surge voltage category II  Electrical safety (applied standards) Electrical machine equipment Acc. to EN60204  For use with electronic equipment Acc. to EN50178 / VDE0160  Protection against dangerous shock currents Acc. to VDE0106-101  Protective separation / protection against electrical shock VDE0100-410 / acc. to DIN57100-410  Safety extra-low voltage SELV acc. to IEC 60950-1 PELV according to EN 60204-1  Safety transformers for switch-mode power supplies According to EN 61558-2-16  Connection data (input) Conductor cross-section, AWG/kcmil , max. 12 AWG Conductor cross-section, AWG/kcmil , min. 26 AWG Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection  Number of terminals 3 for L/N/PE  Tightening torque, max. 0.6 Nm Tightening torque, min. 0.5 Nm Wire connection cross section, flexible (input), max. 2.5 mm² Connection data (output) Conductor cross-section, AWG/kcmil , max. 12 AWG Conductor cross-section, AWG/kcmil , min. 26 AWG Conductor cross-section, flexible , max. 2.5 mm² Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection  Number of terminals 6 (++,--,13,14)  Tightening torque, max. 0.6 Nm Tightening torque, min. 0.5 Nm Signalling Contact load (NO contact) max. 30 V DC / 1 A  Floating contact Yes  Relay on/off Output voltage >21.6 V DC/ <20.4 V DC, overload  Classifications ETIM 8.0 EC002540  ETIM 9.0 EC002540  ETIM 10.0 EC002540  ECLASS 14.0 27-04-07-01

Read more less

Industrial-grade unmanaged Ethernet switch designed for reliable performance in harsh environments. It features 8 RJ45 ports supporting 10/100BaseT(X) Ethernet connections, making it ideal for applications requiring robust network connectivity. With a compact design and DIN-rail mounting capability, it ensures easy integration into industrial control panels. The switch operates efficiently within a temperature range of 0°C to 60°C and complies with IP40 protection standards, ensuring durability and resistance to dust and other particulates. Its fanless metal housing enhances heat dissipation and longevity, making it suitable for various industrial automation and control systems.

Read more less

Product Specifications Working Temperature 10 Celsius (oC) Rated Current 10 Ampere (amp) Current Range 10 Ampere (A) Noise Level 1 db Output Current 10 Ampere (amp) Application NA Product Type SMPS Output Power 240 Watt (w) Input Voltage 24 Volt (V) Voltage Protection 24 Efficiency NA Material SMPS Storage Temperature 10 Celsius (oC) Weight 1 Kilograms (kg) FOB Port vadodar a Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque Supply Ability 100 Per Day Delivery Time 1 Days Sample Policy Free samples are available Main Domestic Market All India Product Unit 60 Piece/Pieces Unit Type Piece/Pieces Returnable No Stock Quantity 300 Currency INR Price 1000.00 INR (Approx.) Moq 60 Price Type fixed Brand Name Krutika Enterprise Packsize 1 Mop 60 Minimum Order Quantity 60 Minimum Ordered Packs 60 GSTIN 0%

Read more less

Model Name/Number BI1-EG04-AP6X, BI1-EG05-AN6X, BI1-EG05-AN6X-V1331, BI1-EG05-AP6X, BI1-HS540-AP6X Sensing Distance 4 mm to 5 mm (model dependent) Brand Turck Shape Cylindrical (M8 threaded) Material Nickel-plated brass Cable Length 2 meters (standard) Power Supply 10-30 VDC Availability In Stock

Read more less

Product Specifications Product Attribute Attribute Value UNSPSC Code 41110000 Alternate Mfr Part Number 46112 Body Style Cylindrical Brand TURCK Manufacturer Part Number NI8-M18-AP6X Measurement Range 8 mm Primary Type Inductive Proximity Sensors Series NI 8 Series Unit of Measure EA
