Weighing Capacity 10 Kg Material Mild Steel Usage/Application To Hang Load Cable Diameter 4 MM Model Name/Number HSB-15 Packaging Type CARTOON Availability In Stock

Read more less

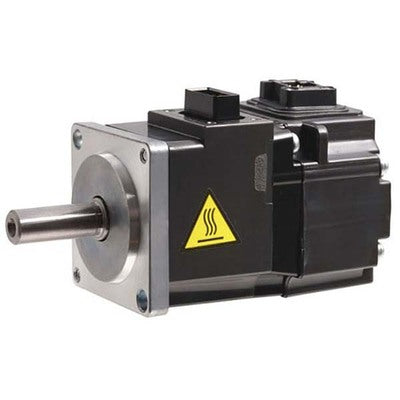

Specifications Primary brand Mitsubishi Electric Main function AC servo motor Product series / family name MELSERVO J4 series Sub-range name HG-KR series Functions AC brushless rotary servo motor Design keyed shaftbuilt-in absolute feedback encod. (22-bit)oil seallow inertia / small power capacitynatural cooling Supply voltage (AC) 200Vac class Rated current 2.6A Rated active power (kW) 400W / 0.4kW Rotational speed 3000rpm6000rpm (maximum) Torque 1.3Nm nominal Maximum torque 4.5Nm Moment of inertia 0.0000371kg.m2 (0.371kg.cm2) Connection type 4-pin rectangular connector Mounting mode 60x60mm flange mounting Resolution 22-bit (equivalent to 4194304ppr) feedback Degree of protection IP65 Dimensions H77.1mm x W60mm x D128.3mm Net Height (mm) 77.1 mm Net Width (mm) 60 mm Net Depth (mm) 128.3 mm Ambient air temperature for operation 0...+40 °C Ambient air temperature for storage -15°C...+70 °C Maximum radial load 245 N Maximum axial load 98 N Maximum current 9.1 A Order code / Manufacturer SKU HG-KR43JK Manufacturer product status Commercialized Equivalent to HGKR43JK Compliant with standard(s) CE markingTUV RheinlandcULusULKCEN61800-3EN60034-1EN62061SILCL3EN50581UL1004-1UL1004-6CSAKCEAC Recommended accessories for standard 1-axis use amplifiers- MR-J4-40GF- MR-J4-40GF-RJ- MR-J4-40B- MR-J4-40B-RJ- MR-J4-40B1- MR-J4-40B1-RJ- MR-J4-40A- MR-J4-40A-RJ- MR-J4-40A1- MR-J4-40A1-RJfor standard 2-axis use amplifiers- MR-J4W2-77B- MR-J4W2-1010Bfor standard 3-axis use amplifiers- MR-J4W3-444BUse amplifier <=> motor cables as follows- Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type)-- Standard bending life--> 2m (MR-J3ENCBL2M-A1-L)--> 5m (MR-J3ENCBL5M-A1-L)--> 10m (MR-J3ENCBL10M-A1-L)- Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type)-- Standard bending life--> 1m (MR-J3ENCBL1M-A2-L)--> 2m (MR-J3ENCBL2M-A2-L)--> 5m (MR-J3ENCBL5M-A2-L)--> 10m (MR-J3ENCBL10M-A2-L)-- Long bending life--> 1m (MR-J3ENCBL1M-A2-H)--> 2m (MR-J3ENCBL2M-A2-H)--> 5m (MR-J3ENCBL5M-A2-H)--> 10m (MR-J3ENCBL10M-A2-H)- Encoder cable for HG-KR/HG-MR (junction type)-- Standard bending life--> 2m (MR-EKCBL2M-L or MR-J3ENSCBL2M-L)--> 5m (MR-EKCBL5M-L or MR-J3ENSCBL5M-L)--> 10m (MR-EKCBL10M-L or MR-J3ENSCBL10M-L)--> 15m (MR-EKCBL15M-L)--> 20m (MR-EKCBL20M-L or MR-J3ENSCBL20M-L)--> 30m (MR-EKCBL30M-L or MR-J3ENSCBL30M-L)-- Long bending life--> 2m (MR-EKCBL2M-H or MR-J3ENSCBL2M-H)--> 5m (MR-EKCBL5M-H or MR-J3ENSCBL5M-H)--> 10m (MR-EKCBL10M-H or MR-J3ENSCBL10M-H)--> 20m (MR-EKCBL20M-H or MR-J3ENSCBL20M-H)--> 30m (MR-EKCBL30M-H or MR-J3ENSCBL30M-H)--> 40m (MR-J3ENSCBL40M-H)--> 50m (MR-EKCBL50M-H or MR-J3ENSCBL50M-H)--> 60m (MR-J3ENSCBL60M-H)- Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (junction type)-- Standard bending life--> 0.3m (MR-J3JCBL03M-A1-L)--> 3m (MR-J3JSCBL03M-A1-L)- Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (junction type)-- Standard bending life--> 0.3m (MR-J3JCBL03M-A2-L)--> 3m (MR-J3JSCBL03M-A2-L)- Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type)-- Standard bending life--> 2m (MR-PWS1CBL2M-A1-L)--> 3m (MR-PWS1CBL3M-A1-L)--> 5m (MR-PWS1CBL5M-A1-L)--> 10m (MR-PWS1CBL10M-A1-L)-- Long bending life--> 2m (MR-PWS1CBL2M-A1-H)--> 3m (MR-PWS1CBL3M-A1-H)--> 5m (MR-PWS1CBL5M-A1-H)--> 7m (MR-PWS1CBL7M-A1-H)--> 8m (MR-PWS1CBL8M-A1-H)--> 10m (MR-PWS1CBL10M-A1-H)- Power supply cable; Shielded type for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type)-- Standard bending life--> 0.3m (MR-J3PS03M-A1)--> 5m (MR-J3PS5M-A1)--> 10m (MR-J3PS10M-A1)- Power supply cable; Shielded type for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type)-- Standard bending life--> 0.3m (MR-J3PS03M-A2)--> 5m (MR-J3PS5M-A2)--> 10m (MR-J3PS10M-A2)- Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type)-- Standard bending life--> 1m (MR-PWS1CBL1M-A2-L)--> 2m (MR-PWS1CBL2M-A2-L)--> 5m (MR-PWS1CBL5M-A2-L)--> 10m (MR-PWS1CBL10M-A2-L)-- Long bending life--> 1m (MR-PWS1CBL1M-A2-H)--> 5m (MR-PWS1CBL5M-A2-H)--> 10m (MR-PWS1CBL10M-A2-H)--> 15m (MR-PWS1CBL15M-A2-H)- Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (relay type)-- Standard bending life--> 0.3m (MR-PWS2CBL03M-A1-L)- Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type)-- Standard bending life--> 0.3m (MR-PWS2CBL03M-A2-L)- Power supply cable for HG-KR/HG-MR series to MR-J4W2/MR-J4W3 series amplifier-- Direct connection type lead out in direction of motor shaft--> 2m (SC-EPWS1CBL2M-A1-L)--> 5m (SC-EPWS1CBL5M-A1-L)-- Direct connection type lead out in opposite direction of motor shaft--> 2m (SC-EPWS1CBL2M-A2-L)--> 5m (SC-EPWS1CBL5M-A2-L)-- Direct connection type lead out in direction of motor shaft (Long bending life)--> 2m (SC-EPWS1CBL2M-A1-H)--> 5m (SC-EPWS1CBL5M-A1-H)-- Direct connection type lead out in opposite direction of motor shaft (Long bending life)--> 2m (SC-EPWS1CBL2M-A2-H)--> 5m (SC-EPWS1CBL5M-A2-H)- Motor brake cables for HG-KR/HG-MR Lead out in direction of motor shaft (direct connection type)-- Standard bending life--> 2m (MR-BKS1CBL2M-A1-L)--> 5m (MR-BKS1CBL5M-A1-L)--> 10m (MR-BKS1CBL10M-A1-L)-- Long bending life--> 2m (MR-BKS1CBL2M-A1-H)--> 5m (MR-BKS1CBL5M-A1-H)--> 7m (MR-BKS1CBL7M-A1-H)--> 10m (MR-BKS1CBL10M-A1-H)- Motor brake cables for HG-KR/HG-MR Lead out in opposite direction of motor shaft (direct connection type)-- Standard bending life--> 2m (MR-BKS1CBL2M-A2-L)--> 5m (MR-BKS1CBL5M-A2-L)--> 10m (MR-BKS1CBL10M-A2-L)-- Long bending life--> 2m (MR-BKS1CBL2M-A2-H)--> 5m (MR-BKS1CBL5M-A2-H)--> 10m (MR-BKS1CBL10M-A2-H)- Motor brake cables for HG-KR/HG-MR lead out in direction of motor shaft (relay type)-- standard--> 0.3m (MR-BKS2CBL03M-A1-L)- Motor brake cables for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type)-- standard--> 0.3m (MR-BKS2CBL03M-A2-L)

Read more less

FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Power Supply (V) 24 Current Type DC Occupied I/O Points on PLC 16 Integrated Digital Outputs 16 Output Type TRANSISTOR Output Logic SINK Product Dimensions & Weight Width (mm) 40 Height (mm) 90 Depth (mm) 87 Weight (kg) 0,216 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

Specifications Door switch type Key-operated Guard-lock Material housing Plastic Material head Plastic Ambient temperature (operating) -10-55 °C Connection method Screw terminal Cable length 0 m Direction of operation Adjustable Holding force 1300 N Door contacts NC 1 Door contacts NO 1 Lock monitor contacts NC 1 Lock monitor contacts NO 1 Lock/Release key type Standard key Lock/Release key position Bottom Lock/Release key material Resin Solenoid voltage 24 V LED indicator Degree of protection (IP) IP67 Conduit size PG13.5 Number of conduits 2 Switch action Slow action Shape Cuboid Overall length of sensor 95 mm Height of sensor 35.5 mm Width of sensor 88.5 mm Switch without actuator Lock/Release logic Power to unlock (Mechanical lock)

Read more less

Later selection with no coil High durability: 2400 cycles/hour for operating rate High reliability: environments tolerance up to 55°C Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks Various fields of application with multiple standards certifications

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition Country of Origin Japan Brand Mitsubishi MPN Does Not Apply Type Tension Controller Model LE-40MTB-E

Read more less

Signal cable pre-assembled type: 6FX5002-2DC10 (SINAMICS DRIVE-CLiQ) plug IP20/IP67, with 24 V MOTION-CONNECT 500 length (m)= +0 +0 +5 +0 SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP20/IP67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) = Product lifecycle Active Product  Returnable Status Yes Packaging dimensions (L x W x H) Not available Net weight 0.974 lb

Read more less

Input Voltage (V DC) 250-370V DC Load Regulation ± 0.1% Ripple and Noise 120 mV p-p Input Frequency 47-63 Hz Features AC input range selectable by switch, Built-in passive PFC function compliance to EN61000-3-2, High efficiency 89% and low dissipation. Operating Temperature -20 ~ 70°C Output Voltage (V DC) 24V DC Mounting Type DIN Rail Storage Temperature -40 ~ 85°C Type of Product Switching Power Supply Output Current (Amps) 20 A Model No DRP-480-24 Operating Humidity 20 ~ 90% RH Input Voltage (V AC) 180-264V AC Size (mm) 227x125x100 mm Line Regulation ± 0.5% No. Of Output DRP-480 Storage Humidity 10 ~ 95% RH Efficiency (%) 0.89 Country of Origin India Name of Manufacturer/Packer/Importer surya manufacturing company

Read more less

Product Dimensions 6L x 2.5W x 6H Centimeters Brand Generic Power Connector Type 3-Pin Voltage 24 Volts Wattage 3.12 Watts About this item SPECIFICATIONS: 60x60x25mm DC brushless axial cooling fan designed for efficient air circulation and thermal management POWER RATING: Operates on 24V DC with low power consumption of 0.13A, making it energy-efficient for continuous operation PERFORMANCE: Delivers impressive 9200 RPM for optimal cooling performance in electronic components and systems CONNECTIVITY: Features a convenient 3-wire configuration for seamless integration with various electronic setups DESIGN: Compact and robust construction ensures reliable operation in space-constrained applications

Read more less

Power supply voltage 100 to 240 VAC 50/60 Hz Allowable power supply voltage range 85 to 110% of the power supply voltage Power consumption 18 VA max. (at maximum load) External power supply 12 VDC ±10% 80 mA Input type DC current Output type Judgment output: ContactComparative output: H, LTransfer output: Linear current Current measurement input Measurement range A: ±199.99 mAB: ±19.999 mAC: ±1.9999 mAD: 4.000 to 20.000 mA Accuracy ±0.1% rdg ±1 digit max. Input impedance A: 1 Ω max.B: 10 Ω max.C: 33 Ω max.D: 10 Ω max. Allowable instantaneous input (30 s) A: ±400 mAB: ±200 mAC: ±200 mAD: ±200 mA Judgment output Contact output H, L (SPDT)Rated load: Resistive load: 250 VAC 5 A (cosφ=1)/30 VDC 5 A (L/R＝0 ms), Inductive load: 250 VAC 1 A (Close cosφ=0.4)/30 VDC 1 A (L/R＝7 ms)Life expectancy: 100,000 operations (Electrical)/5,000,000 operations (Mechanical) Linear output Linear current 0 to 20 mA DC/4 to 20 mA DCAllowable load impedance: 500 Ω max.Resolution: Approx. 10000Output error: ±0.5% FS Display Display method Negative LCD (backlit LED) 7-segment digital display Digits 5 digit (-19999 to 99999) Character height PV: 14.2 mm (green/red)SV: 4.9 mm (green) A/D conversion method Delta-Sigma method Sampling period 50 times/second (20 ms) Comparative output response time 100 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) Linear output response time 150 ms max. (time until the final analog output value is reached when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) Insulation resistance 20 MΩ min. (at 500 VDC) Dielectric strength Between the entire external terminal and case: 2,300 VAC 1 min Noise immunity ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) Vibration resistance Malfunction: 10 to 55 Hz, Acceleration: 50 m/s2, 5 min 10 sweeps each in X, Y, and Z directions Shock resistance Malfunction: 100 m/s2, 3 times each in 3 axes 6 directions Degree of protection Front: NEMA4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) Memory protection EE-PROM (non-volatile memory) Number of rewrites: 100,000 Ambient temperature Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) Ambient humidity Operating: 25 to 85 % Accessories Waterproof packing, Fixtures, Terminal Cover, Unit label, Instruction manual Weight Approx. 300 g

Read more less

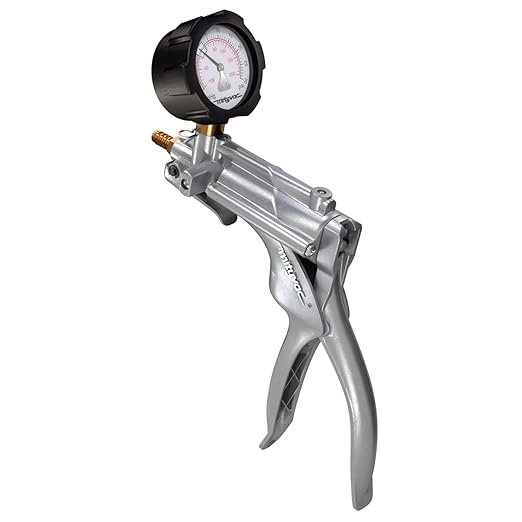

Colour Silver Brand Mityvac Item Weight 2.35 Pounds Power Source Manual Maximum Pressure 30 Pound per Square Inch

Read more less

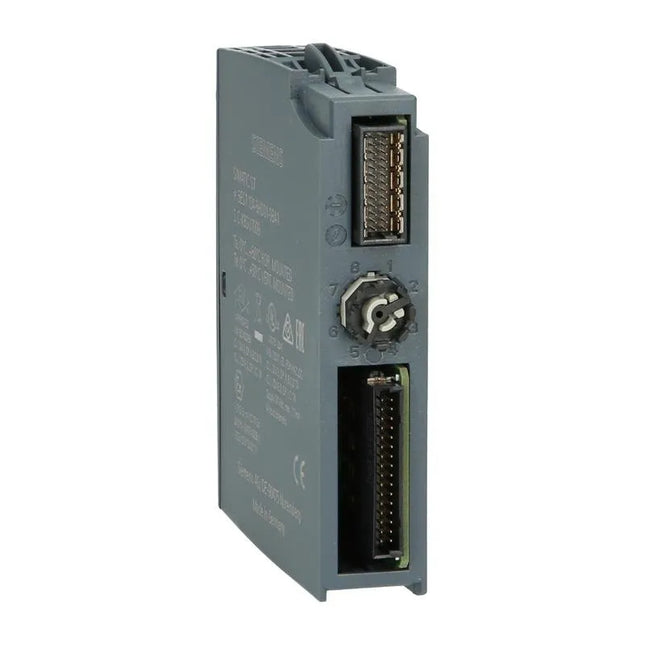

Brand SIEMENS Manufacturer Series 6ES7134-6HD01-0BA1 I/O Points 16 Output Type Digital Usage/Application Industrial Number of Inputs 4 Country of Origin Made in India Availability In Stock
