Type Air Cooling Fan Color Black Material Plastic Availability In Stock

Read more less

Shape Grooved Type Sensing distance 25 mm Standard sensing object Opaque: 1.5 mm dia. min. Light source Infrared LED (940 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 25 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength Between lead wires and case: 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP64 Connection method Pre-wired models (Cable length 2 m) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: ABS

Read more less

FA-MCB: Miniature Circuit Breaker Series WS-V SERIES - MCB Type BHW-T MINI. CIRCUIT BREAKER Rated Current (A) 16 Rated Voltage (V) 415 Current Type AC Number of Poles 4 Instantaneous Tripping TYPE C Breaking Capacity at 415V (kA) 10 Cycles with Rated Current 4000 Cycles without Rated Current 4000 Compliant with Standard(s) IEC 60898-1 Product Dimensions & Weight Width (mm) 72 Height (mm) 92,6 Depth (mm) 73,5 Weight (kg) 0,52 Conformity CE COMPLIANT EAC NON-COMPLIANT

Read more less

FA-MMS: Manual Motor Starter Series MMP-T SERIES Type MOTOR CIRCUIT BREAKERS Compliant with Standard(s) EN 60947-4-1, EN 60947-2, IEC 60947-4-1, GB14048.2, IEC 60947-2 Frame Size 32 Number of Poles 3 Rated Current (A) 32 Rated Voltage (V) 690 Frequency Range (Hz) 50/60 Rated Capacity (kW) 15 Heater Designation (A) 32 Range of Setting Current (A) 24-32 Breaking Capacity at 415V (kA) ICU: 10; ICS: 5 Electrical Durability (Load) 100000 OPERATIONS Mech. Durability (at no Load) 100000 OPERATIONS Wiring SCREW-CLAMP Automatic Tripping Device THERMAL-MAGNETIC (ADJUSTABLE) Product Dimensions & Weight Width (mm) 45 Height (mm) 90 Depth (mm) 82 Weight (kg) 0,33 Conformity CE COMPLIANT UL/cUL NON-COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

Series MMP-T SERIES Type MOTOR CIRCUIT BREAKERS Compliant with Standard(s) EN 60947-4-1, EN 60947-2, IEC 60947-4-1, GB14048.2, IEC 60947-2 Frame Size 32 Number of Poles 3 Rated Current (A) 0,63 Rated Voltage (V) 690 Frequency Range (Hz) 50/60 Rated Capacity (kW) 0,18 Heater Designation (A) 0,63 Range of Setting Current (A) 0,4-0,63 Breaking Capacity at 415V (kA) 100 Electrical Durability (Load) 100000 OPERATIONS Mech. Durability (at no Load) 100000 OPERATIONS Wiring SCREW-CLAMP Automatic Tripping Device THERMAL-MAGNETIC (ADJUSTABLE) Product Dimensions & Weight Width (mm) 45 Height (mm) 90 Depth (mm) 82 Weight (kg) 0,33 Conformity CE COMPLIANT UL/cUL NON-COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

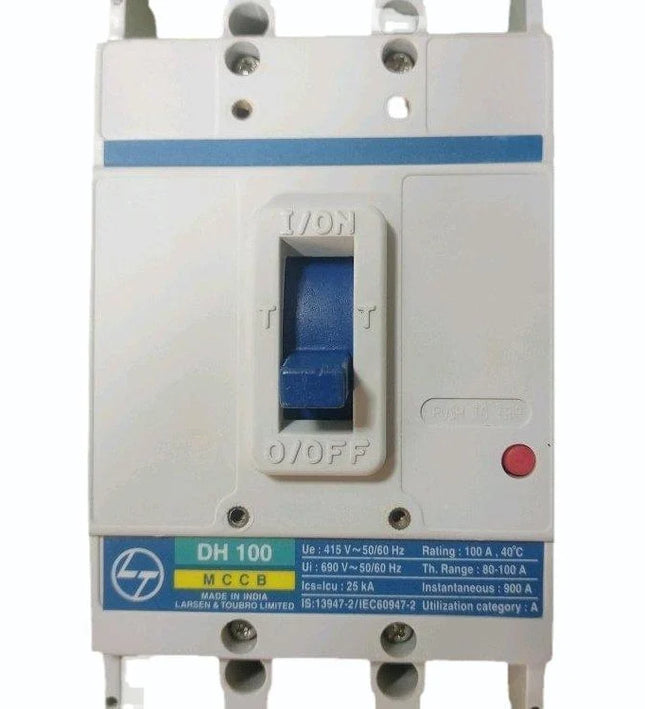

No. of Poles 3 Pole Brand L&T Rated Current 100A Breaking Capacity 25kA Voltage 415V Certification CE Certified Model Name/Number DH 100 Frequency 50Hz Availability In Stock Made In IndiaLarsen & Toubro LimitedRating-100A, 40 Degree CUi- 690V- 50/60 HzInstantaneous-900AIS-13947-2/IEC60947-2

Read more less

Number of Poles 3 Pole Current Rating 200A Rated Current 200A Brand L&T Breaking Capacity 25kA Voltage 415-690 V Model Name/Number DH 200 MCCB, DH200 TH Range 160-200 A ICU 25 kA Instantaneous 200A Country of Origin Made in India Availability In Stock

Read more less

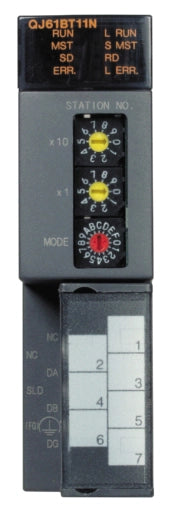

FA-MOD PLC: Network Module Series MELSEC-Q SERIES Type MASTER/LOCAL STATION Network Interface CC-LINK Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,12 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT

Read more less

FA-MOD PLC: Network Module Series MELSEC-Q SERIES Type MASTER/LOCAL STATION Network Interface CC-LINK Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,12 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT

Read more less

FA-MOD PLC: Digital I/O Module Series CC-LINK Type REMOTE I/O COMBINED MODULE Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Inputs 16 Integrated Digital Outputs 16 Rated Input Voltage (VDC) 24 Rated Load Voltage (VDC) 24 Output Type TRANSISTOR Output Logic SINK Wiring SCREW Int. Current Consumption (A) 0,06 Product Dimensions & Weight Width (mm) 179 Height (mm) 50 Depth (mm) 40 Weight (kg) 0,25 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

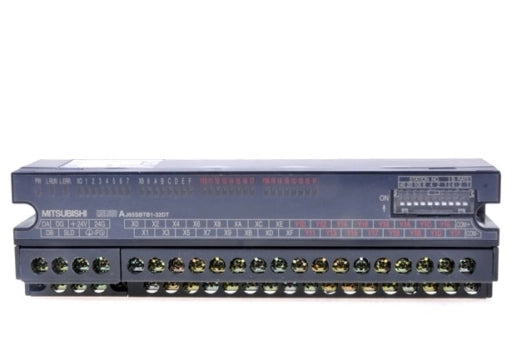

FA-MOD PLC: Digital Output Module Series CC-LINK Type REMOTE TRANSISTOR OUTPUT Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Outputs 32 Output Type TRANSISTOR Output Logic SINK Rated Load Voltage (VDC) 12-24 Wiring SCREW Int. Current Consumption (A) 0,065 Product Dimensions & Weight Width (mm) 179 Height (mm) 50 Depth (mm) 40 Weight (kg) 0,25 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

FA-Servo-Motion: Motion Controller Series MELSEC-Q SERIES Type SIMPLE MOTION MODULE Command Interface SSCNET III/H, SSCNET III Number of Axes 16 Program Capacity 600 Program Capacity Unit POSITIONING DATA / AXIS Inputs 4 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,16 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT

Read more less
