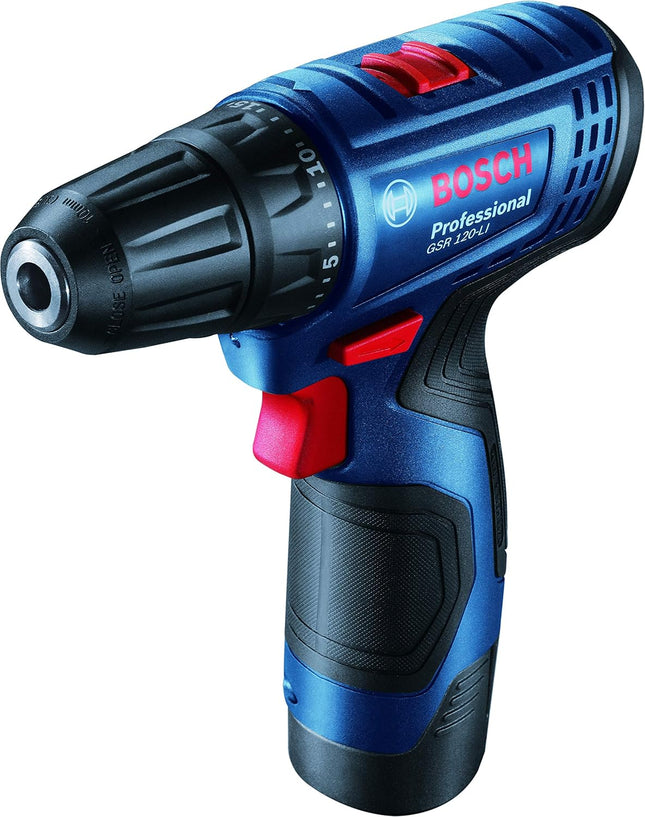

Brand Bosch Power Source Battery Powered Maximum Rotational Speed 1500 RPM Voltage 12 Volts (DC) Amperage 2 Amps Maximum Chuck Size 0.39 Inches Colour Blue Included Components 1 Piece Drill/Driver, 2 Piece 12V Batteries, 1 Piece Charger, 1 Piece Carry case Special Feature Variable Speed Product Dimensions 32.8L x 28.6W x 5.6H Centimeters

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:   Brand: Omron Automation and Safety Product Type: Photoelectric Sensors Series: E3Z 1 Subcategory: Sensors Part # Aliases: E3ZT61D2M Unit Weight: 120 g

Read more less

Specification Value Size M12 Mounting type Shielded Sensing Distance 3 mm Setting distance 0 to 2.4 mm Output type DC 2-wire Operation mode NO Power supply 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) Connection method Pre-wired Models(2 m) Cable Specifications PVC (oil-resistant) Differential travel 10% max. of sensing distance Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.) Standard target Iron, 12 × 12 × 1 mm Response frequency 1 kHz Leakage current 0.8 mA max. Indicator Operation indicator (red) and setting indicator (green) Protection circuit Surge suppressor, Load short-circuit protection (for control and diagnostic output) Ambient temperature range Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) Ambient humidity Operating/storage: 35% to 95% (with no condensation) Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions Degree of protection IP67

Read more less

ManufacturerOMRON INDUSTRIAL AUTOMATION Manufacturer Part NoE2E-X2D1-N 2M OMS Order Code2667268 Product RangeE2E Series Also Known AsE2E-X2D1-N

Read more less

Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   REACH - SVHC: Technology: Inductive Measuring Range - Max: 2 mm Output Type: NPN-NC Mounting Style: Panel Mount Connection Method: Pre-Wired Cable Coding: D Coded Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Series: E2E Brand: Omron Automation and Safety IP Rating: IP67 Maximum Frequency: 1.5 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EX2D2NQ E2EX2D2N Unit Weight: 215.460 g

Read more less

Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output PNP open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 120 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:   Sensing Method: Diffuse Reflective Sensing Distance: 20 mm to 200 mm Light Source: Red LED Output Configuration: NPN Connection Method: Pre-Leaded Brand: Omron Automation and Safety Features: Adjustable sensing distance Product Type: Photoelectric Sensors Series: E3Z 1 Subcategory: Sensors Part # Aliases: 1381620 E3ZLS61 Unit Weight: 88.143 g

Read more less

ion range BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) Differential distance 10% max. of setting distance Reflectivity characteristic (black-white error) 10% max. of setting distance Light source Red LED (670 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting 5-turn endless adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

FA-MOD PLC: Digital Output Module Series CC-LINK Type REMOTE TRANSISTOR OUTPUT Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Outputs 16 Output Type TRANSISTOR Output Logic SINK Rated Load Voltage (VDC) 12/24 Wiring SCREW Int. Current Consumption (A) 0,05 Product Dimensions & Weight Width (mm) 118 Height (mm) 50 Depth (mm) 40 Weight (kg) 0,18 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

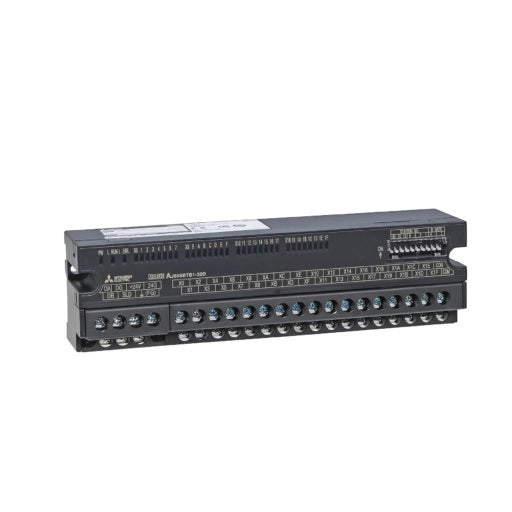

FA-MOD PLC: Digital Input Module Series CC-LINK Type REMOTE DC INPUT Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Inputs 32 Rated Input Voltage (VDC) 24 Wiring SCREW Int. Current Consumption (A) 0,045 Product Dimensions & Weight Width (mm) 179 Height (mm) 50 Depth (mm) 40 Weight (kg) 0,25 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

itsubishi Electric QD75M4 MELSEC-Q Series SSCNET 4-Axis PLC Positioning Module. Product Details Brand: Mitsubishi Electric Model: Mitsubishi Electric MR-J2S-10B  Color: White  Type: PLC Positioning Module We endeavor to take clear pictures of the item listed helping to ensure the confidence of the buyer. Buy with confidence or you money back guaranteed. We take pride in our business and want to ensure the buyer is happy with their product.

Read more less

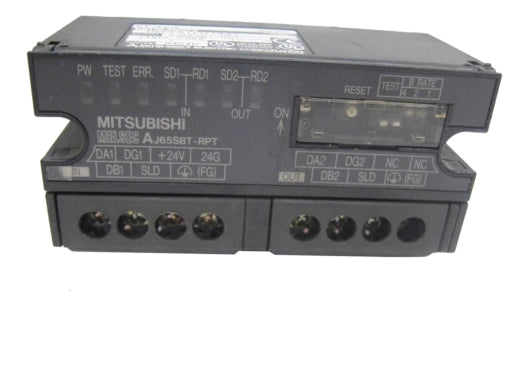

FA-MOD PLC: Network Module Series CC-LINK Type REPEATER Power Supply (V) 24 Current Type DC Network Interface CC-LINK Product Dimensions & Weight Width (mm) 87,3 Height (mm) 54 Depth (mm) 40 Weight (kg) 0,135 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT
