Brand EJWFASCV Color One Color Unit Count 1.0 Count Number of Items 1 Manufacturer EJWFASCV

Read more less

Brand HISHIKO CORPORATION MPN KLRM30 UPC Does not apply

Read more less

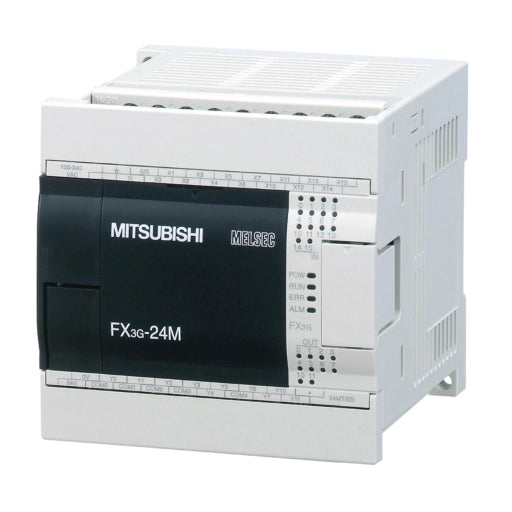

FA-COM PLC: Main Unit Type FX3G Power Supply (V) 100-240 Current Type AC Program Memory 32K STEPS Program Memory Unit EEPROM Integrated Digital Inputs 14 Integrated Digital Outputs 10 Output Type RELAY Local I/O Points 128 Local + Remote I/O Points 256 Expandable YES Cycle Time LD (ns) 210 Cycle Time MOV (ns) 500 USB 1 RS-422 1 Power Consumption (W) 32 Buffer Battery OPTION Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Width (mm) 90 Height (mm) 90 Depth (mm) 86 Weight (kg) 0,55 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT

Read more less

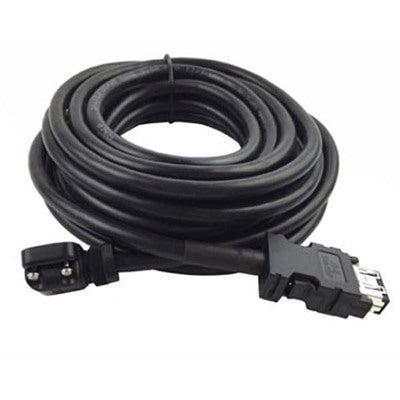

Especificaciones Marca principal Mitsubishi Electric Función principal Cable Funciones Servo encod. feedback cable / cordset Tipo de diseño high bending endurance (long bending life)load-side lead; lead-outencod. connector to servo amplifier connector Tipo de conexión servo mtr. encod. feedback connectorservo amplif. connector Longitud 5m Grado de protección IP65 Compatibilidad técnica con HG-KRHG-MRHG-KNHF-KPHF-MPHF-KN series (direct connection type) Código de pedido/ Fabricante SKU MR-J3ENCBL5M-A1-H Estado de comercialización del producto Commercialized

Read more less

Product Dimensions & Weight Weight (kg) 0,34 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT FA-Servo-Motion: Cable Type POWER CABLE Cable Length (m) 5 Flexibility STANDARD Protection Class IP65

Read more less

Product Dimensions & Weight Weight (kg) 0,44 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT FA-Servo-Motion: Cable Type ENCODER CABLE Cable Length (m) 5 Flexibility STANDARD Protection Class IP65

Read more less

Product Dimensions & Weight Weight (kg) 0,34 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT FA-Servo-Motion: Cable Type POWER CABLE Cable Length (m) 5 Flexibility STANDARD Protection Class IP65

Read more less

Cable Type ENCODER CABLE   Cable Length (m) 5   Protection Class IP65   Product Dimensions & Weight Weight (kg) 0,44

Read more less

Shape/Structure Enclosed Limit switches ctuator Panel mount roller plunger 11 dia. x 4.7Stainless sintered alloy roller Frequency 50/60 Hz Contact form SPDT Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VACLamp load (NC): 3 A at 125 VAC/2.5 A at 250 VACLamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VACInductive load: 10 A at 125 VAC/10 A at 250 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDCLamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCInductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature Operating: -10 to 80 ℃ (with no icing) Ambient humidity 35 to 95 %

Read more less

Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 30 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Product related Article number 3SE5250-0KC05 Life cycle status Active Product Product Family Enclosure width 30 mm EAN 4011209695191 UPC Commodity Code 85365010 Pricing related Customer Price – List Price – Discounts   Price Group / Headquarter Price Group J2650000 / 41K Surcharge for raw material Metal Factor LAO----- Delivery related Export Control Regulations AL : N / ECCN : N Standard delivery time 20 Day/Days Packaging dimensions (L x W x H) 42.00 x 45.00 x 97.00 mm Net weight 0.045 Kg Quantity Unit 1 NOs Packaging Quantity 1 Dangerous goods No Environment related WEEE (2012/19/EU) Take-Back Obligations Not available Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006 REACH Art. 33 Duty to inform according to the current list of candidates Reach Information SCIP Number not available Siemens specific Product Group 5317 Catalog ID CC-IC10 Group Code R711 Country of origin India Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
