PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure. Product lifecycle Active Product  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 34.50 x 16.00 x 62.00 mm Net weight 0.042 Kg

Read more less

SIMATIC DP, RS485 repeater For connection of PROFIBUS/MPI bus systems with max. 31 nodes max. baud rate 12 Mbit/s, Degree of protection IP20 Improved user handling Product lifecycle Phase Out Announce  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 13.40 x 7.30 x 6.50 cm Net weight 0.244 Kg

Read more less

IMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 64x 35.6 mm (WxHxD), terminating resistor with isolating function, With PG receptacle Product lifecycle Active Product  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 8.00 x 6.80 x 3.20 cm Net weight 0.055 Kg

Read more less

Length Max Cable Conductor Aluminium Type Cabel Brand Siemens Material PVC Color Violet Inner Sheath 5.4 mm Availability In Stock

Read more less

Model Name/Number 3RT1034-1AD20 Brand Siemens Availability In Stock Siemens Sirius Contactor 3RT1034-1AG/050607*E05*MODEL: 3RT1034-1AD20Siemens 3RH1921-1DA11 (included)MADE IN GERMANYCOND: USED 1 PCS

Read more less

Product Description thk ssr20xw linear motion guide for cnc Structure and Features Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplatesincorporated in the LM block allow the balls to circulate.Since retainer plates hold the balls, they do not fall off even if the LM rail is pulled out (except models HSR 8, 10 and 12).Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM blockare uniform in the four directions (radial, reverse radial and lateral directions), enabling the LMGuide to be used in all orientations. In addition, the LM block can receive a well-balanced preload,increasing the rigidity in the four directions while maintaining a constant, low friction coeffi cient. Withthe low sectional height and the high rigidity design of the LM block, this model achieves highly accurate and stable straight motion.[4-way Equal Load]Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM blockare uniform in the four directions (radial, reverse radial and lateral directions), enabling the LMGuide to be used in all orientations and in extensive applications.[High Rigidity Type]Since balls are arranged in four rows in a well-balanced manner, a large preload can be applied andthe rigidity in four directions can easily be increased.[Self-adjustment Capability]The self-adjustment capability through front-to-front configuration of THK’s unique circular-arcgrooves (DF set) enables a mounting error to be absorbed even under a preload, thus to achievehighly accurate, smooth straight motion.[High Durability]Even under a preload or excessive biased load, differential slip of balls does not occur. As a result,smooth motion, high wear resistance, and long-term maintenance of accuracy are achieved.[Stainless Steel Type also Available] A special type which LM block, LM rail and balls are made of stainless steel is also available.

Read more less

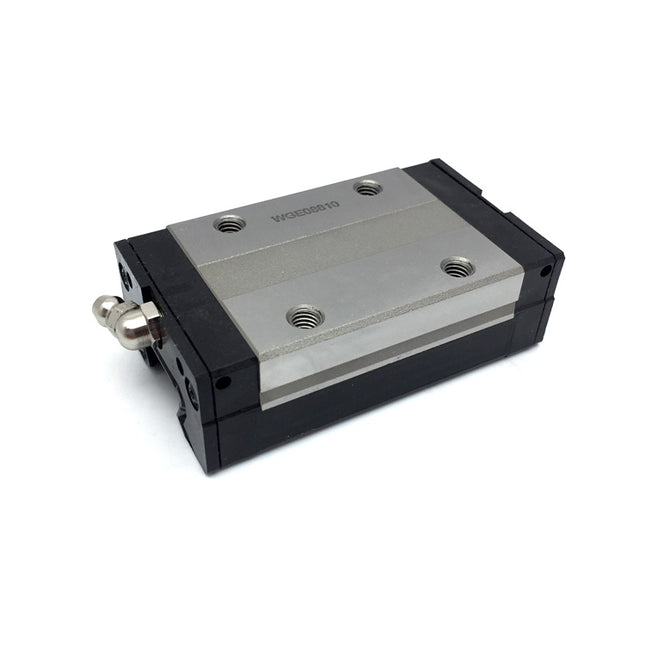

Product Description thk ssr15xw1ss linear block linear guide Structure and Features Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplatesincorporated in the LM block allow the balls to circulate.Since retainer plates hold the balls, they do not fall off even if the LM rail is pulled out (except models HSR 8, 10 and 12).Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM blockare uniform in the four directions (radial, reverse radial and lateral directions), enabling the LMGuide to be used in all orientations. In addition, the LM block can receive a well-balanced preload,increasing the rigidity in the four directions while maintaining a constant, low friction coeffi cient. Withthe low sectional height and the high rigidity design of the LM block, this model achieves highly accurate and stable straight motion.[4-way Equal Load]Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM blockare uniform in the four directions (radial, reverse radial and lateral directions), enabling the LMGuide to be used in all orientations and in extensive applications.[High Rigidity Type]Since balls are arranged in four rows in a well-balanced manner, a large preload can be applied andthe rigidity in four directions can easily be increased.[Self-adjustment Capability]The self-adjustment capability through front-to-front configuration of THK’s unique circular-arcgrooves (DF set) enables a mounting error to be absorbed even under a preload, thus to achievehighly accurate, smooth straight motion.[High Durability]Even under a preload or excessive biased load, differential slip of balls does not occur. As a result,smooth motion, high wear resistance, and long-term maintenance of accuracy are achieved.[Stainless Steel Type also Available] A special type which LM block, LM rail and balls are made of stainless steel is also available.

Read more less

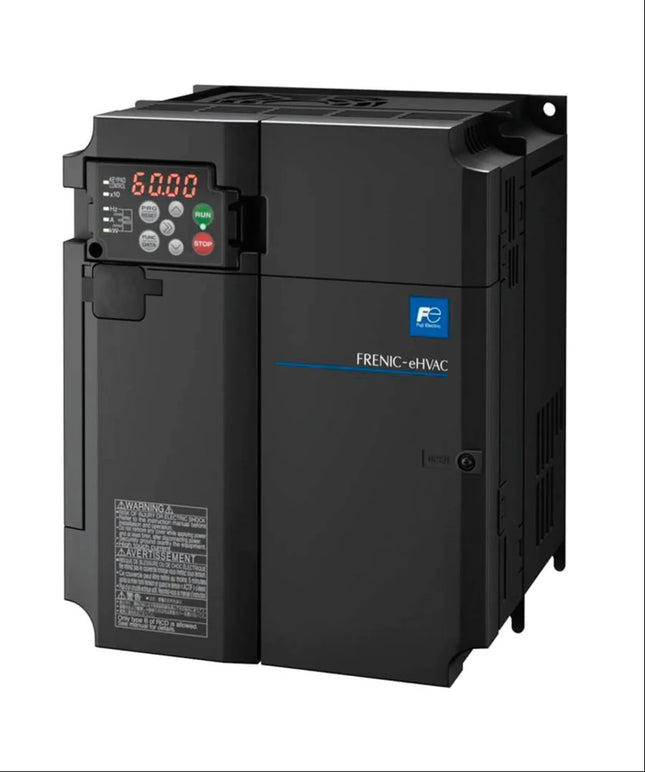

Power 3 HP Usage For Fans Brand Fuji Phase 3 Phase Model Name/Number FRN0045F2E-4G Output Current 45.0 A Ambient Temp. 120% Warranty 01 Year Availability In Stock FRENIC-"e-HVAC" Efficient product  to accelerate energy –saving  trends required by Buildings , Factories and Industrial Environment.  offers optimum capability & control in terms of energy saving  for Pumps & Fans Used in  Hospitality & Industrial Applications .  Eliminates wastage  of energy through appropriate rate flow for Water & Air.  Maintains  safety  and protect the Environment.

Read more less

Product Specifications Color White, Black Product Type Electrical Contactor Application Industrial use Payment Terms Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T) Delivery Time 20 Days Main Domestic Market All India Color White, Black Mop 34 Returnable No Stock Quantity 170 Brand Name MUSARRAT ENTERPRISE Price 1800.00 INR (Approx.) Packsize 1 Unit Type Piece/Pieces Product Unit 34 Piece/Pieces Moq 34 Currency INR Price Type fixed Minimum Ordered Packs 34 Minimum Order Quantity 34 GSTIN 0%

Read more less

Sensing head size M12 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 3 mm ±10% Setting distance 0 to 2.4 mm Operation mode NC

Read more less

Manufacturer OMRON Electronic Components Type of relay electromagnetic Contacts configuration SPDT Rated coil voltage 24V DC Contact current max. 10A AC contacts rating @R(at resistive load) 10A / 250V AC DC contacts rating @R(at resistive load) 10A / 30V DC Manufacturer series G2R Switched voltage max. 125V DC, max. 380V AC Relay variant miniature, monostable Mounting PCB Coil resistance 1.1kΩ Operate time 15ms Body dimensions 29x13x25.5mm Release time 5ms Contact resistance 30mΩ Terminal pitch 3.5mm Coil current 21.8mA Leads for PCB Related items PODST-1 Enclosure description standard seal Operating temperature -40...70°C

Read more less
