Sensing head size M8 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 2 mm ±10% Setting distance 0 to 1.6 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 8 x 8 x 1 mm Response frequency 1500 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

FA-Servo-Motion: Motion Controller Series MELSEC-Q SERIES Type SIMPLE MOTION MODULE Command Interface SSCNET III/H, SSCNET III Number of Axes 2 Program Capacity 600 Program Capacity Unit POSITIONING DATA / AXIS Inputs 2 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,15 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT

Read more less

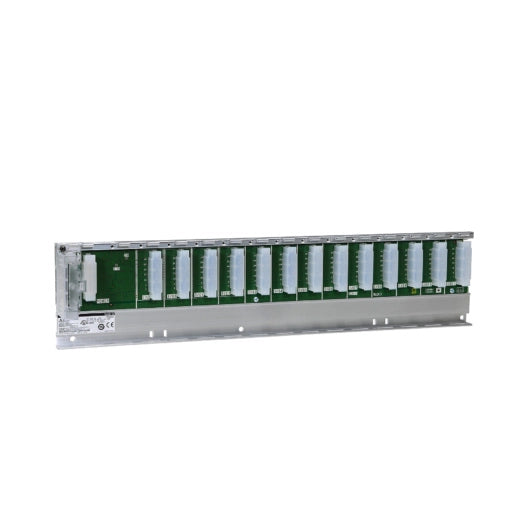

FA-MOD PLC: Base Rack Series MELSEC-Q SERIES Type MAIN BASE UNIT Slots 12 Slots for Power Supply 1 Product Dimensions & Weight Width (mm) 439 Height (mm) 98 Depth (mm) 44,1 Weight (kg) 0,45 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT

Read more less

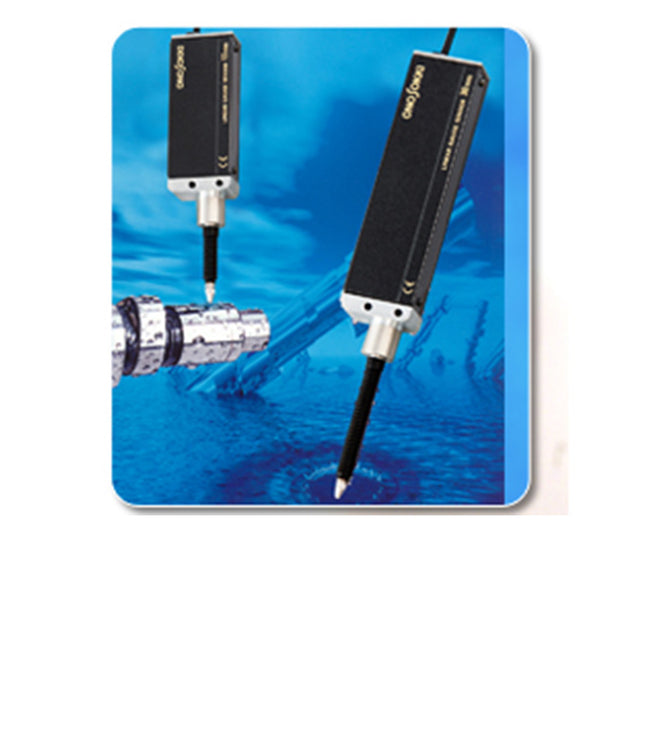

 Specifications Range 13 mm / 0.5" Resolution 0.001 mm / 0.00005" Response Speed 11.8 in / s Measuring Force 173 gf / 6.1 ozf Operating temperature 32° to 104° F / 0° to 40° C Stem Diameter 15 mm Contact Point Thread ISO M2.5 Cable length (attached) 1.9 meter Dimensions L-5.4" W-1.3" TH-.8" Weight 8.8 oz / 250 g Protection Class IP-64

Read more less

roduct Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   REACH - SVHC: Technology: Inductive Measuring Range - Max: 1 mm Output Type: NPN-NO Mounting Style: Cable Mount Connection Method: Pre-Wired Cable Cable Length: 2 m Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2E Brand: Omron Automation and Safety Housing Material: Brass IP Rating: IP67 Maximum Frequency: 4 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EC05S01WCC12M Unit Weight: 35 g

Read more less

Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)

Read more less

Model GT-H10 Type Sensor head: Standard Measuring range 10 mm 0.39″ Measuring force Downward mounting 1.0 N*1 Side mounting 0.9 N*1 Upward mounting 0.8 N*1 Mechanical response 10 Hz (at ambient temperature of 23 °C 73 °F) Repeatability 3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)*2 Environmental resistance Enclosure rating IP67 Ambient temperature -10 to +55 °C 14 to 131 °F Relative humidity 35 to 85 % RH Material Housing: TYPE430 Stainless steel, Indicator: Polyarylate,Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC Weight Approx. 115 g (With 2-m 6.6′ cable)

Read more less

Fan Fan Speed 5500 - 5500 RPM Fan AirFlow 40 - 56 cfm Air Pressure 0 - 0 mm H2O Air Intake Pressure 0 - 0 Fan Bearing Type BALL Fan Life 100000000000 hr Fan Speed Control 0 Noise Level 36 dB Other Features Key Features Voltage: DC 12V Additional Features Voltage: 12V DC, 0.20A for low power consumption RPM: 5500 RPM for efficient and high airflow Dimensions: 929225mm, compact and versatile design Type: Brushless, ensuring longevity and quiet operation Connector: 2-pin connector for easy installation and compatibility Warranty Warranty Summary 3 month Covered in Warranty Not Working Not Covered in Warranty Broken Service Type NA

Read more less

Product Information Alternative Part Number: AH16JT-2D11A Manufacturer: Fuji Pricing Unit: Each Weight: 0.032 kg (each) Tariff code: 85365080 Generic code: FUJIC

Read more less

Technical Details Color ‎Trd-j360 Item Model Number ‎SPABOY Item Part Number ‎SPABOY Is Assembly Required ‎No Capacity ‎RZ Number of Pieces ‎1 Footboard upholstery ‎paper Weight ‎50 Grams Manufacturer ‎SPABOY Country of Origin ASIN B0CNYLC7TJ Date First Available 12 August 2024 Manufacturer SPABOY Item Weight 50 g Net Quantity 1.0 count

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Technology: Inductive Measuring Range - Max: 3 mm Output Type: NO Mounting Style: Panel Mount Connection Method: Pre-Wired Cable Coding: C Coded Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Series: E2E Brand: Omron Automation and Safety IP Rating: IP67 Maximum Frequency: 1 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: 7498330 E2EX3D1N Unit Weight: 127.008 g

Read more less

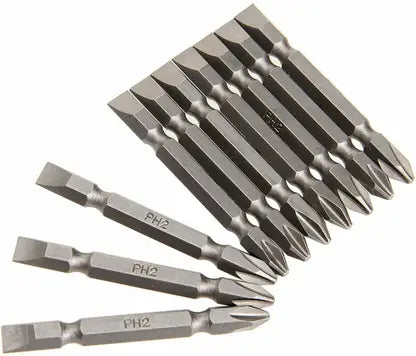

In The Box Sales Package Set of 10pcs Bits Pack of 10 General Brand BUKU Model Number 10Pcs (Plus/Minus) Phillips Electric Screwdriver Bits 65mm Magnetic Hand Screwdriver Driver Bit Drill Bit Screw Driver Dual Ends 1/4" Hex Type Phillips Size 65mm (Plus/Minus) Material Metal Net Quantity 10
