Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 16 Integrated Digital Inputs 16 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,14 Width (mm) 40 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals BV,DNV,LR EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

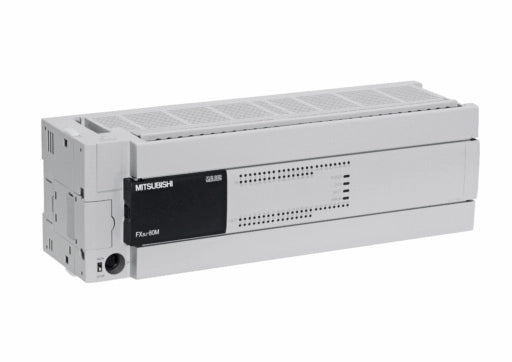

Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

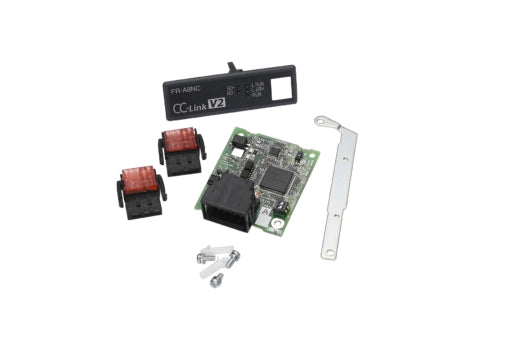

Series FR-A/F800 SERIES Type NETWORK/COMMUNICATION OPTION Network Interface CC-LINK Product Dimensions & Weight Depth (mm) 21,8 Weight (kg) 0,021 Width (mm) 50 Height (mm) 57 Conformity CE COMPLIANT EAC NON-COMPLIANT UL/cUL NOT IN SCOPE

Read more less

Primary brand Mitsubishi Electric Main function Cable Functions Electromagnetic brake cable / cordset for servo mtr. Design opposite to load-side lead; lead-out Connection type servo mtr. connectorbare end flying leads Length 30cm Degree of protection IP55 Technical compatibility with HF-SPHC-LPHC-RPHC-UPHA-LPHF-KPHG-KRHG-KNHF-MPHG-MR series Order code / Manufacturer SKU MR-BKS2CBL03M-A2-L Manufacturer product status Commercialized Equivalent to MRBKS2CBL03MA2L

Read more less

Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

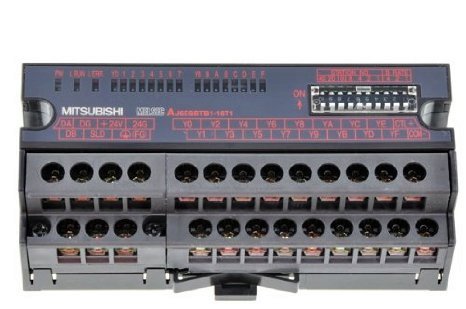

Series CC-LINK Type REMOTE TRANSISTOR OUTPUT Power Supply (V) 24 Current Type DC Occupied Stations 1 Integrated Digital Outputs 16 Output Type TRANSISTOR Output Logic SINK Rated Load Voltage (VDC) 12/24 Wiring SCREW Int. Current Consumption (A) 0,05 Product Dimensions & Weight Depth (mm) 40 Weight (kg) 0,18 Width (mm) 228 Height (mm) 50 Conformity CE COMPLIANT EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

  Series MELSEC-Q SERIES Type TRANSISTOR OUTPUT (SINK) Power Supply (V) 12-24 Current Type DC Occupied I/O Points on PLC 64 Integrated Digital Outputs 64 Output Type TRANSISTOR Output Logic SINK Rated Load Voltage (VDC) 12-24 Wiring SCREW Int. Current Consumption (A) 0,15 Product Dimensions & Weight Depth (mm) 90 Weight (kg) 0,131 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)

Read more less

Solid State Relays - PCB Mount PHOTOTRIAC W/IND ZERO CRS FTN 5-24VDC

Read more less

Manufacturer: Omron Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Bi-Power Relay Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 650 Ohms Coil Current: 36.9 mA Contact Material: Silver Alloy (Ag) Series: LY Length: 28 mm Width: 21.5 mm Height: 53 mm Brand: Omron Automation and Safety Contact Form: DPDT (2 Form C) Power Consumption: 900 mW Product Type: General Purpose Relays 1 Subcategory: Relays Part # Aliases: 1133065 LY2NDC24NC LY2NDC24 Unit Weight: 40 g General Purpose Relays PLUG-IN DPDT 24VDC

Read more less

Type [Photoelectric Sensor] Photoelectric sensor Detected Objects Opaque Objects Light Axis Arrangement Type Use of Emitting and Receiving Integrated Reflection Plate Beam Shape Standard Light Source [Red] Red light emitting diode Head Shape [Square] Square shape Case Material [Plastic] Polybutylene Terephthalate Amplifier Installation Type Amplifier Built-in Type Detection Distance [Classification] ~4000 Reflection Type Detection Method [Retroreflective] Retro-Reflective Shape (With MSR Function) Operating Environment Standard / Cold Resistance Ambient Operating Temperature -25～55 Ambient Operating Temperature 35～85 Protection Structure IP67 Head Maximum Size Width 20 Head Maximum Size Height 10.8 Head Maximum Size, Depth 33.1 Power Supply Voltage 12-24 V DC Output Mode PNP open-collector Operation Mode Light ON/Dark-ON (selectable) Cable Length 2 Spot Dia. - Response Time (Standard Mode) 1 Accessories (Dedicated Reflective Plate, Etc.) - Overview - Strength (Tightening) 0.5 or less (M3 screws) Connection Method - - - Product Description The standard for photoelectric sensors. Produced in volumes of 1 million units per year.[Features]· Long-distances: Thru-beam type / 30 m; Retroreflective type / 4 m; Diffuse reflection type / 1 m.· Easy to adjust the optical axis: Deviation between the optical axis and machine axis is within ±2.5°.· High stability: Proprietary algorithm that prevents ambient light from affecting performance.
