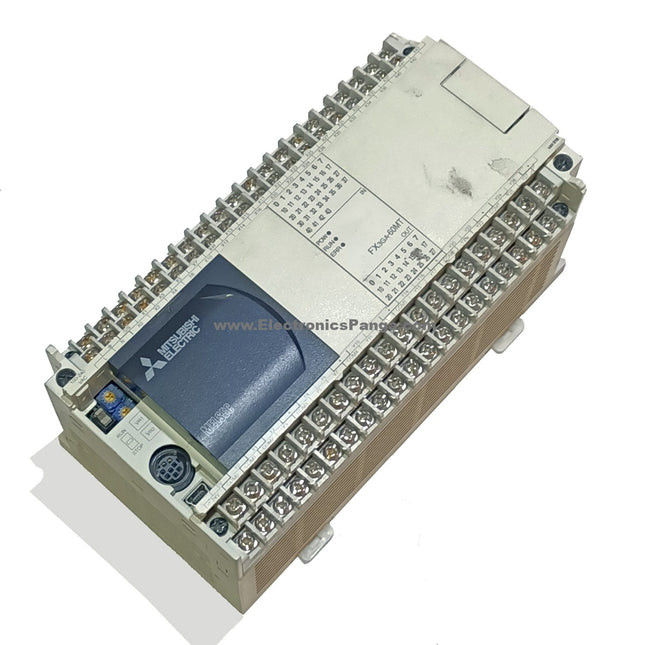

Condition: Used, Check Test, OkModel: FX3GA-60MT-CMBrand: MitsubishiInput: 100-240V/AC  40W  50/60HzOutput: 5-30V/DC  0.5ANumbers Of Input: 36Numbers Of Output: 24Weight: 748gStock: 1 PieceItem Code: PL134

Read more less

FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 8 Integrated Digital Inputs 8 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,18 Width (mm) 43 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals DNV GL EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

Series FR-A SERIES Type FR-A800-E INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 500 Max. Permissible Voltage (V) 550 Current Type AC Phases 3 Rated Output Current SLD (A) 8,3 Rated Output Current LD (A) 7,6 Rated Output Current ND (A) 6 Rated Output Current HD (A) 4 Rated Motor Capacity SLD (kW) 3,7 Rated Motor Capacity LD (kW) 3,7 Rated Motor Capacity ND (kW) 2,2 Rated Motor Capacity HD (kW) 1,5 Frequency Range (Hz) 0,2–590 Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter YES Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display FR-DU08 Display Type 5 DIGITS LED (12 SEGMENT) PLC Function YES Program Memory 6K Program Memory Unit STEPS Integrated Digital Inputs 12 Digital Outputs (Transistor) 5 Digital Outputs (Relay) 2 Integrated Analogue Inputs 3 Integrated Analogue Outputs 2 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 OPTIONAL USB 1+1 MINI Ethernet Port 1 Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS Leakage Current (mA) 35(DELTA) / 2(STAR) Power Loss SLD (W) 130 Power Loss LD (W) 120 Power Loss ND (W) 100 Power Loss HD (W) 75 Standby Power Consumption (W) 19 Protection Class IP20 Product Dimensions & Weight Depth (mm) 140 Weight (kg) 3,4 Width (mm) 150 Height (mm) 260 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,4 Inertia LOW INERTIA Rated Torque (Nm) 1,3 Maximum Torque (Nm) 4,5 Rated Speed (rpm) 3000 Inertia (kg*cm2) 0,393 Brake YES Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4194304 Maximum Speed (rpm) 6000 Protection Class IP65 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 135,1 Weight (kg) 1,8 Width (mm) 60 Height (mm) 77,1 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

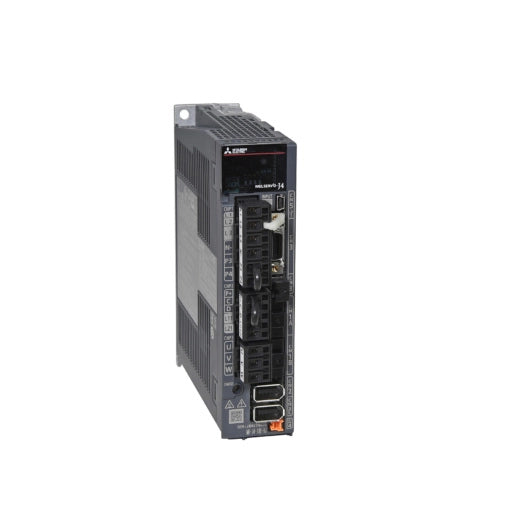

Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-J4 Type MR-J4 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Safety Function Type STO (IEC/EN 61800-5-2) Command Interface SSCNETⅢ/H Rated Capacity (kW) 0,1 Product Dimensions & Weight Depth (mm) 135 Weight (kg) 0,8 Width (mm) 40 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

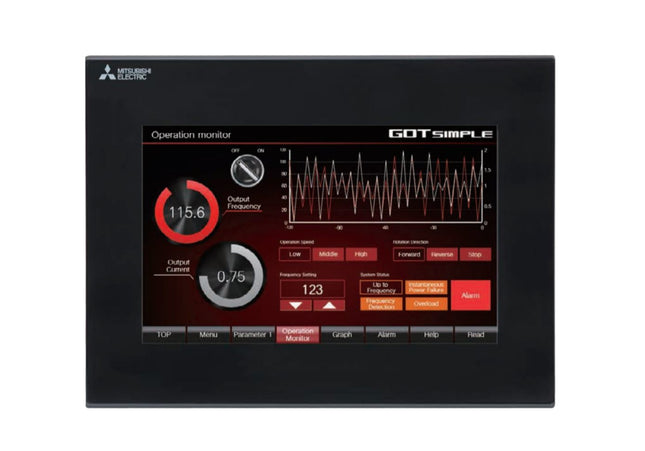

Series GOT SIMPLE SERIES   Type GS21 MODEL   Power Supply (V) 24   Current Type DC   Display TFT   Display Colour 65536   Display Size (Inch) 7   Resolution (Pixels) 800X480   Internal Memory Capacity (MB) 15   Memory Card Slot SD   USB 1   Ethernet Port 1   RS-232 1   RS-422/485 1   Network Options MODBUS  CCLINK  ETHERNET   Protection Class IP65F   Product Dimensions & Weight Width (mm) 206   Height (mm) 155   Depth (mm) 50   Weight (kg) 0,71

Read more less

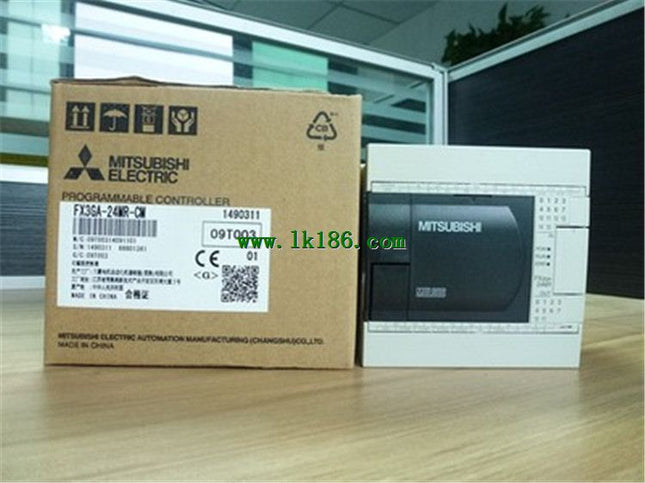

Brand: MITSUBISHIName: PLCModel: FX3GA-24MR-CMInput and output points: 24 points.Power supply: AC100-240V.Input points: 14 points.Output points: 10 points.Output form: relay output.Power consumption: 32W.Weight: 0.55KG.Outline dimension: 90x90x86mm.EEPROM memory cartridge with program transfer function.Third generation standard model.Easy to use integrated models and flexible scalability.Condensed convenience of using the usual FX3 series.Its high price by the most suitable for small scale control.High speed operation.Basic instructions: 0.21 s/ instruction.Application instruction: 0.5 s/ instruction.Large capacity memory.Built in program memory 32000 steps.Auxiliary relay: 7680 points.Timer: 320 points.Counter: 235.Data register: 8000.Extended register: 24000 point.Extended file register: 24000.A free combination of PLC.FX3G basic unit: 14/24/40/60 point.FX3GA is a compact PLC, simple design and with the basic functions of the FX3 series.Through the strengthening of the built-in function and flexible expansion, expanded in various fields of application.Third generation standard model.High flexibility.Suitable for small scale control of high cost.Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points.   The analog output adapter (FX3U- - racy -BD)"Max input / output points: 10 points.Supply voltage: 100 - 240VAC.Input points: 6 points.Output points: 4 points.Output type: Transistor (source).Power consumption (W): 19.Weight (kg):0.3.Size (WxHxD) mm:60x90x75.All equipment is digital input and output point MITSUBISHI FX3GA-24MR-CM.The total I/O points are not more than 30 points, and the input points are less than 16, the output points are less than 14 FX3GA-24MR-CMIts MT series of PLC can drive 2 way servo or stepper, commonly used in the control system for a simple manipulator.MITSUBISHI FX1S series PLC is suitable for the smallest package,It is the preferred target for low cost users to seek powerful control over a limited range of I/0 MITSUBISHI FX3GA-24MR-CM.FX1S provides up to 30 I/O points, and can be transmitted through serial communication data,MT models also have the ability to locate, widely used in a variety of small mechanical equipment. "Max input / output points: 64 points.Power supply voltage: 24VDC.Input points: 32 points.Output points: 32 points.Output type: relay.Power consumption: 35W.Weight (kg):1.0.Size (WxHxD) mm:220x90x87 MITSUBISHI FX3GA-24MR-CM.Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.Continuous scanning function, to define the operation cycle for the application of the continuous scan time MITSUBISHI PLC.Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).Note recording function, Component annotation can be recorded in the program register MITSUBISHI PLC.Since the FX2n series have the following features: the maximum range of inclusive of the standard features, program execution faster, the full complement of communication function, suitable for different countries in the world, and the power to meet a large number of special function modules of individual needs,It can provide maximum flexibility and control capability for your factory automation applications MITSUBISHI PLC.Control 16~256 point.Built in 8K capacity of the RAM memory, the maximum can be extended to 16K.CPU arithmetic processing speed of 0.08 S/ basic instructions.On the right side of the FX2N sseries can be connected to the input and output expansion modules and special function modules FX3GA-24MR-CM.The basic unit is built in the 2 axis independent maximum 20kHz positioning function (transistor output type).Quick disconnect the terminal block, which adopts excellent maintainability to quickly disconnect the terminal blocks, even if the cable is then replaced by the cable MITSUBISHI FX3GA-24MR-CM.Brand: MITSUBISHIName: PLCModel: FX3GA-24MR-CMInput and output points: 24 points.Power supply: AC100-240V.Input points: 14 points.Output points: 10 points.Output form: relay output.Power consumption: 32W.Weight: 0.55KG.Outline dimension: 90x90x86mm.EEPROM memory cartridge with program transfer function.Third generation standard model.Easy to use integrated models and flexible scalability.Condensed convenience of using the usual FX3 series.Its high price by the most suitable for small scale control.High speed operation.Basic instructions: 0.21 s/ instruction.Application instruction: 0.5 s/ instruction.Large capacity memory.Built in program memory 32000 steps.Auxiliary relay: 7680 points.Timer: 320 points.Counter: 235.Data register: 8000.Extended register: 24000 point.Extended file register: 24000.A free combination of PLC.FX3G basic unit: 14/24/40/60 point.FX3GA is a compact PLC, simple design and with the basic functions of the FX3 series.Through the strengthening of the built-in function and flexible expansion, expanded in various fields of application.Third generation standard model.High flexibility.Suitable for small scale control of high cost.Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points.   The analog output adapter (FX3U- - racy -BD)"Max input / output points: 10 points.Supply voltage: 100 - 240VAC.Input points: 6 points.Output points: 4 points.Output type: Transistor (source).Power consumption (W): 19.Weight (kg):0.3.Size (WxHxD) mm:60x90x75.All equipment is digital input and output point MITSUBISHI FX3GA-24MR-CM.The total I/O points are not more than 30 points, and the input points are less than 16, the output points are less than 14 FX3GA-24MR-CMIts MT series of PLC can drive 2 way servo or stepper, commonly used in the control system for a simple manipulator.MITSUBISHI FX1S series PLC is suitable for the smallest package,It is the preferred target for low cost users to seek powerful control over a limited range of I/0 MITSUBISHI FX3GA-24MR-CM.FX1S provides up to 30 I/O points, and can be transmitted through serial communication data,MT models also have the ability to locate, widely used in a variety of small mechanical equipment. "Max input / output points: 64 points.Power supply voltage: 24VDC.Input points: 32 points.Output points: 32 points.Output type: relay.Power consumption: 35W.Weight (kg):1.0.Size (WxHxD) mm:220x90x87 MITSUBISHI FX3GA-24MR-CM.Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.Continuous scanning function, to define the operation cycle for the application of the continuous scan time MITSUBISHI PLC.Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).Note recording function, Component annotation can be recorded in the program register MITSUBISHI PLC.Since the FX2n series have the following features: the maximum range of inclusive of the standard features, program execution faster, the full complement of communication function, suitable for different countries in the world, and the power to meet a large number of special function modules of individual needs,It can provide maximum flexibility and control capability for your factory automation applications MITSUBISHI PLC.Control 16~256 point.Built in 8K capacity of the RAM memory, the maximum can be extended to 16K.CPU arithmetic processing speed of 0.08 S/ basic instructions.On the right side of the FX2N sseries can be connected to the input and output expansion modules and special function modules FX3GA-24MR-CM.The basic unit is built in the 2 axis independent maximum 20kHz positioning function (transistor output type).Quick disconnect the terminal block, which adopts excellent maintainability to quickly disconnect the terminal blocks, even if the cable is then replaced by the cable MITSUBISHI FX3GA-24MR-CM.

Read more less

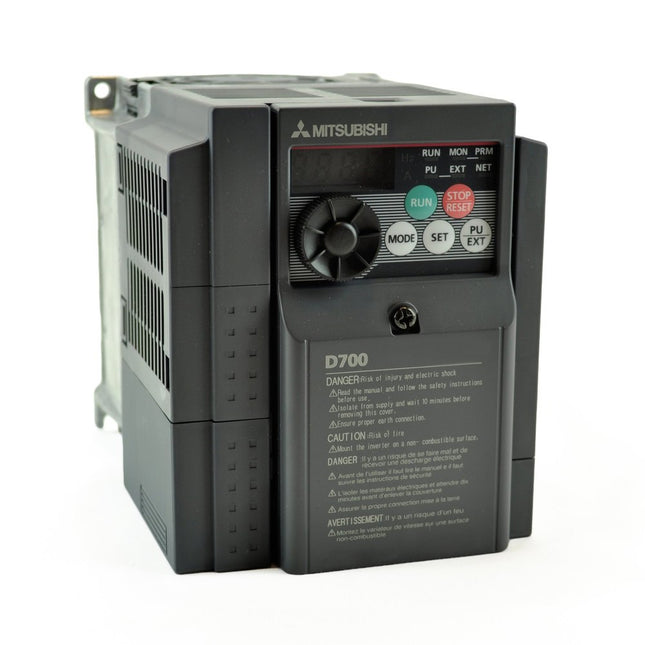

Brand Mitsubishi Model Name/Number FR-D740-022-E16 Input Voltage 3 phase 440 VAC Input Phase 3 - Phase Rated Input Voltage 380 to 480V Rated Input Frequency 50/60Hz Permissible AC Voltage Fluctuation 325 to 528V Permissible AC Frequency Fluctuation 50/60 Hz Protective Structure (JEM1030) Enclosed Type (IP20) Surrounding Air Temperature -10 DegreeC to +50 DegreeC maximum (non-freezing) Ambient Humidity 90%RH or less (non-condensing) Storage Temperature -20 DegreeC to +65 DegreeC Rated Capacity 1 HP, 2.2 Amp Availability In Stock We are dedicated to customers by managing their supply chain & uninterrupted production. Amtek is dynamic organization, providing end-to-end industrial solutions which includes Automation & Process Control Instrumentation; Robotics, Machine Automation, Vision System, Sensors, SCADA software, 21CFR Part Compliance, Control and Automation Panel, SITC projects related to Application Requirement of Machine or Process.

Read more less

AC Drive Mitsubishi FR-E700 series With 11 million frequency inverter drives already sold, Mitsubishi Electric now introduces its latest generation of compact inverters, the FR-E700 series. In addition to better features and performance than their predecessors, the models in the series are also more compact and even easier to install. Improvements include an integrated USB port, an integrated one-touch Digital Dial control with a display, improved power usage at low speeds and an expansion slot compatible with the many option cards from the 700 series. All this makes the FR-E700 an economical and highly-versatile solution for a wide range of applications from textiles machines to door and gate drive systems to material handling systems. Power: 11kW Amps: 23 Supply: Three Phase 400v Model: Mitsubishi FR-E740-230SC-EC Filter: Required as seperate Unit Performance: Mid Range Dimensions: Weight: Torque: Constant Torque General Purpose Intelligent functions for every application Sensorless Vector Control Advanced autotuning Overload capacity increased to 200% for 3 seconds Brake chopper Torque limiting External brake handling Integrated control unit Powerful software Integrated USB port Self-diagnostics for reliable operation Side by side mounting Responsive technology To protect both staff and valuable machinery the FR-E700 series is packed with innovative functions that enable the inverters to respond with great sensitivity to a variety of external events. Controlled deceleration for brief power failures Automatic restart after power failures Safety function "Safe Torque Off" (STO) according EN 61800-5-2 The "Safe Torque Off" function (STO) disconnects the power from the motor and prevents an unexpected re-start. Thereupon the motor coasts to a halt. Compared to the traditional technology with contactors, this integrated Safety function reduces the effort in hardware, wiring and maintenance and offers higher performance and lifetime. An investment in the future Long lifetime – Frequency inverter drives from Mitsubishi Electric are famous for their reliability and longevity. The FR-E700 is designed for a service life of over 10 years. Among other things, this is made possible by high-performance heat-resistant capacitors, cooling fans with sealed bearings and special lubricating greases. The flows of cooling air only come into contact with the heat sinks, not with the electronic components, ensuring that no dust or dirt can collect on the components. The circuit boards are very well protected against aggressive environments with single or double coatings of varnish – another feature that ensures a longer service life. Fast servicing – The fans are designed as compact units that can be replaced in less than 10 seconds for cleaning or in the event of failure. Even replacing the entire inverter is a quick and simple operation – there is no wiring work at all because the terminal block is removable. Versatile design Compact installation – The installation footprint is the same as that of the predecessor models but the FR-E700 units can now be installed directly next to one another. Heat dissipation has been optimised by designing the heat sinks so that they can now be installed outside the switchgear cabinet. Flexible connection and expansion – FR-E700 inverters can be connected to RTU Modbus and network systems like Profibus/DP, CC-Link, DeviceNet and LonWorks.

Read more less

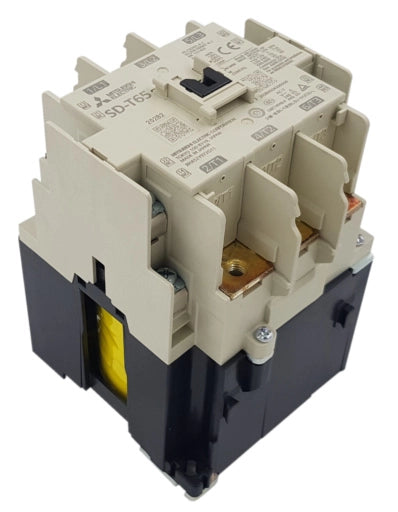

Series MS-T SERIES MAGNETIC CONTACTOR Type NON-REVERSING, DC OPERATED Frame Size 65 Current Type DC TYPE Coil Voltage (V) 24 Rated Current (A) 3-PHASE AC690V: 38 Rated Capacity (kW) 3-PHASE AC220-240V: 18.5, 3-PHASE AC380-440V: 30, 3-PHASE AC690V: 30 Rated Voltage (V) 690 Number of Poles 3 No of Auxiliary Contacts NO 2 No of Auxiliary Contacts NC 2 Frequency Range (Hz) 50/60 Min. Ambient Temperature (°C) -10 Max. Ambient Temperature (°C) 40 Wiring SCREW-CLAMP Design / Styling STANDARD Compliant with Standard(s) EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 Mech. Durability (at no Load) 5 000 000 OPERATIONS Protection Class IP20 Product Dimensions & Weight Depth (mm) 133 Weight (kg) 2,15 Width (mm) 88 Height (mm) 106 Conformity CE COMPLIANT EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT
