Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Panasonic Industrial Automation Sales Series CX-400 Packaging Box Part Status Active Sensing Method Reflective Sensing Distance 0.079" ~ 1.969" (2mm ~ 50mm) Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration PNP - Open Collector Light Source Red LED Connection Method Cable Ingress Protection IP67 Cable Length 78.74" (2m) Adjustment Type - Operating Temperature -25°C ~ 55°C Base Product Number CX-441

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number EX-14A Part Number EX-14A Products Name Ultra-slim Photoelectric Sensor Product details Convergent reflective (Diffused beam type) [Front sensing] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in)(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. Min. sensing object ø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in) Hysteresis 15 % or less of operation distance(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. Repeatability(perpendicular to sensing axis) 0.1 mm 0.004 in or less Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Current consumption 13 mA or less Output NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current) Output:Utilization category DC-12 or DC-13 Output:Short-circuit protection Incorporated Response time 0.5 ms or less Operation indicator Orange LED (lights up when the output is ON) Incident beam indicator - Stability indicator Green LED (lights up under stable light received condition or stable dark condition) Pollution degree 3 (Industrial environment) Protection IP67 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each Emitting element Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) Material Enclosure: PolyarylateLens: Polyarylate Cable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.(Note) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 20 g approxGross weight: 40 g approx Accessory Mounting screws: 1 set

Read more less

  Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer Panasonic Industrial Automation Sales Series GX Packaging Box Part Status Active Sensor Type Inductive Sensing Distance 0.13" (3.3mm) Output Type PNP-NO, 3-Wire Response Frequency 500Hz Shielding Unshielded Material - Body Plastic Voltage - Supply 12V ~ 24V Termination Style Cable Leads Operating Temperature -25°C ~ 70°C Ingress Protection IP68 Indicator LED Package / Case Module Base Product Number GX-F12

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number PM-T45 Part Number PM-T45 Products Name Amplifier Built-in / U-shaped Micro Photoelectric Sensor Product details Compact / Cable type [T type] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 6 mm 0.236 in (fixed) Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object Hysteresis 0.05 mm 0.002 in or less Repeatability 0.01 mm 0.0004 in or less Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Current consumption 15 mA or less Output NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON Output:Short-circuit protection Incorporated Response time Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. Operation indicator Orange LED (lights up under light received condition) Pollution degree 3 Protection IP64 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉ Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated) Material Enclosure: PBTDisplay section: Polycarbonate Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 10 g approx.Gross weight: 15 g approx. Remark Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number PM-Y45 Part Number PM-Y45 Products Name Amplifier Built-in / U-shaped Micro Photoelectric Sensor Product details Compact / Cable type [Y type] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 6 mm 0.236 in (fixed) Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object Hysteresis 0.05 mm 0.002 in or less Repeatability 0.01 mm 0.0004 in or less Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Current consumption 15 mA or less Output NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON Output:Short-circuit protection Incorporated Response time Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. Operation indicator Orange LED (lights up under light received condition) Pollution degree 3 Protection IP64 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉ Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated) Material Enclosure: PBTDisplay section: Polycarbonate Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 10 g approx.Gross weight: 15 g approx. Remark Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

Read more less

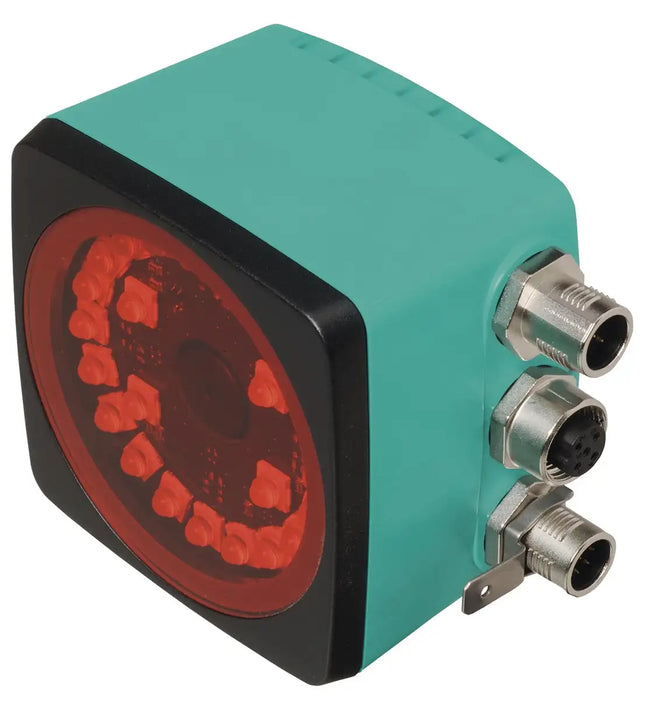

Key Benefits at a Glance Non-contact positioning on Data Matrix code tape Mechanically rugged: no wearing parts, long operating life, maintenance-free High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines. Travel ranges up to 10 km, in X and Y direction PROFIBUS interface

Read more less

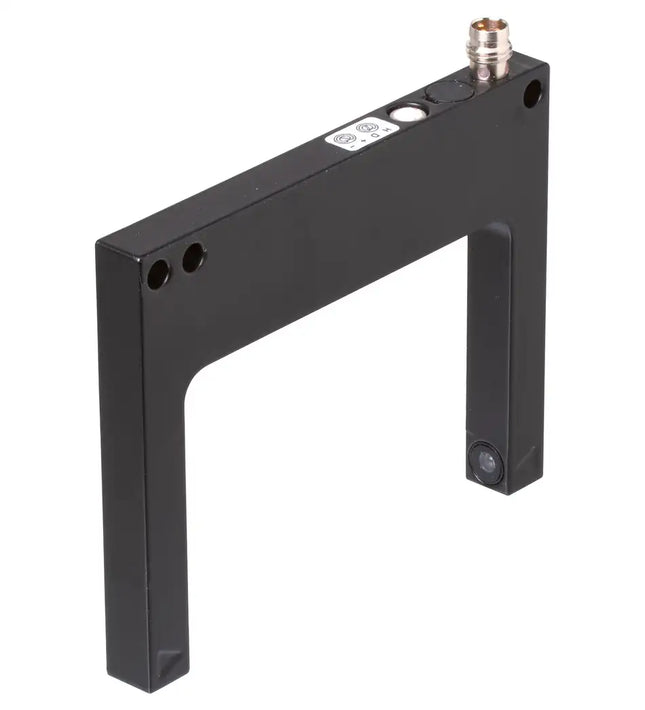

Key Benefits at a Glance Optimized for the detection of small parts High switching frequency Multiple device installation possible, no mutual interference (no cross-talk) Sensitivity adjuster and light-on/dark-on changeover switch as standard features of this series Visible red light Degree of protection IP67 cULus approval Diecast zinc housing, powder coated

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Brand Pepperl Fuchs MPN UB2000-30GM-E2-V15-Y184700

Read more less

Description:DISTANCE SENSOR, 0.2-15 METER RANGE, MODULATED VISIBLE RED LIGHT, 660 NM, 10-30 VDC, PUSH-PULL OUTPUT, M12 X 1 CONNECTOR, 4-PIN

Read more less

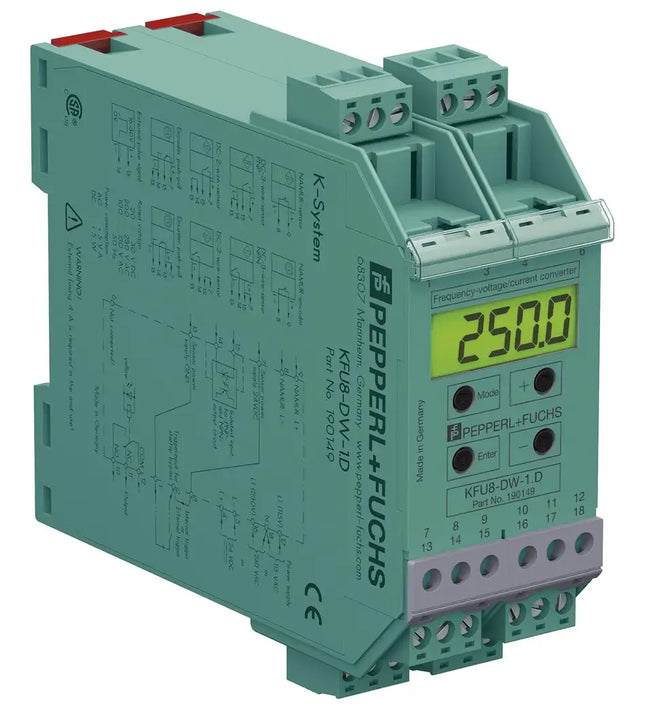

Key Benefits at a Glance Speed monitoring up to 40 kHz 1 pre-select value with relay output and LED indicator 2-, 3-, 4-wire and NAMUR sensors as well as rotary encoder connectable Start-up delay Menu driven operation via 4 front keys Period measurement Output signal can be inverted Display devices can be set between 0.1 ... 2.5 sec.

Read more less

Key Benefits at a Glance Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000 2 programmable switch outputs Hysteresis mode selectable Window mode selectable Synchronization options Adjustable acoustic power and sensitivity Temperature compensation

Read more less

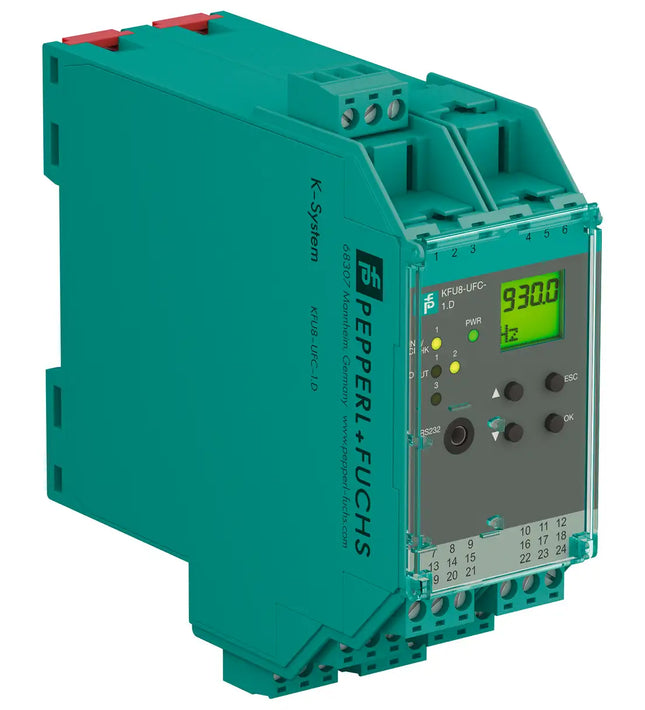

Key Benefits at a Glance 1-channel signal conditioner Universal usage at different power supplies Input for 2- or 3-wire sensors, NAMUR sensors or dry contacts Input frequency 1 mHz ... 10 kHz Current output 0/4 mA ... 20 mA Relay contact and transistor output Start-up override Line fault detection (LFD) Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
