Estimated Lead Time : 1 - 10 working days. Manufacturer : OPTEX FA Product No. : Z2D-80P Product Type : Photoelectric Sensors Model : PNP - Cable type Type : Diffuse-reflective type Sensing distance : 0 to 1 m*2 Light source : 4 element red LED, wavelength 640 nm Spot size : Approx. ø140 mm (at distance of 1 m) Response time : 500 μs or less Hysteresis : 20% Max Distance adjustment : 1-turn potentiometer Control output : NPN/PNP type Open collector Max. 100 mA/30 VDC Output mode : Light ON / Dark ON selection switch Connection type : Cable length - 2 m Supply voltage : 10 to 30 VDC, including 10% ripple (p-p) Current consumption : 15 mA or less Applicable regulations : EMC directive (2004/108/EC) Applicable standards : EN 60947-5-2 Company standards : Noise resistance : Feilen Level 4 cleared Ambient temperature/humidity : no freezing : -25 to +55°C no condensation : 35 to 85% RH Ambient illuminance : Sunlight : 10,000 lx Incandescent lamp: 3,000 lx Degree of protection : IP67

Read more less

Material Plastic Brand OPTEX Model Name/Number NF-DB01 Operating temperature -40 to +70 DegreeC Bending Radius (mm) R25 Availability In Stock

Read more less

Material Plastic Brand OPTEX Model Name/Number NF-DB01 Operating temperature -40 to +70 DegreeC Bending Radius (mm) R25 Availability Material Plastic Brand OPTEX Model Name/Number NF-DB01 Operating temperature -40 to +70 DegreeC Bending Radius (mm) R25 Availability In Stock

Read more less

Material Plastic Brand OPTEX Model Name/Number NF-DB01 Operating temperature -40 to +70 DegreeC Bending Radius (mm) R25 Availability In Stock

Read more less

Specifications I/O system GRT1 I/O Bus Type of module Digital I/O I/O connection type Push-in Connection method 2-wire, 3-wire Number of digital inputs 0 Digital input type None Number of digital outputs 4 Digital output type PNP Permitted voltage at output 20.4-26.4 V Output current 0.5 A Short-circuit protected outputs Number of IOV (V+) terminals 4 Number of IOG (V-) terminals 4 Degree of protection (IP) IP20 Product Height (unpacked) 84 mm Product Width (unpacked) 15 mm Product Depth (unpacked) 74.4 mm Product Weight (unpacked) 86 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Safety Light Curtains Delivery Restrictions:  This item may require additional fees and documentation. Customs delays may also occur. RoHS:   REACH - SVHC: Product: Safety Light Curtains Operating Supply Voltage: 24 VDC Range: 305 mm Brand: Omron Automation and Safety Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP Ingress Protection: IP65 Material: Aluminum Maximum Operating Temperature: + 55 C Minimum Operating Temperature: - 10 C Output Type: PNP Product Type: Optical Sensors Resolution: 20 mm Series: F3SJ-E 1 Subcategory: Sensors Part # Aliases: F3SJE0305P25 Unit Weight: 1.816 kg

Read more less

Type Description Select All Category Motors, Actuators, Solenoids and Drivers Motors - AC, DC Manufacturer Omron Automation and Safety Series * Packaging Bulk Part Status Active Base Product Number R88M-1M

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Contactors - Solid State Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS: N Load Current Rating: 15 A Load Voltage Rating: 200 VAC to 400 VAC Control Voltage Range: 12 VDC to 24 VDC Input Current: 10 mA Series: G3PB Brand: Omron Automation and Safety Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP Product: Solid State Contactors Product Type: Solid State Contactors 1 Subcategory: Contactors Part # Aliases: G3PB415B2VDDC1224

Read more less

Specifications Servo control method EtherCAT Drive supply voltage 230 V single phase Rated output 0.4 kW Rated speed 3000 r/min Rated torque 1.27 Nm Peak torque 4.5 Nm Encoder type Absolute without battery Encoder resolution 23 Bit Motor with brake Motor with oil seal Flange size square (LC) 60 mm Shaft diameter 14 mm Shaft with key Shaft with tap Product Weight (unpacked) 1400 g

Read more less

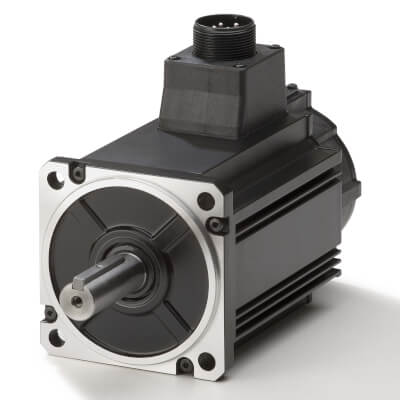

Specifications Servo control method Analog, EtherCAT, MECHATROLINK II, Pulse train Drive supply voltage 230 V single phase Rated output 1 kW Rated speed 2000 r/min Rated torque 4.77 Nm Peak torque 14.3 Nm Encoder type Incremental Encoder resolution 20 Bit Motor with brake Motor with oil seal Flange size square (LC) 130 mm Shaft diameter 22 mm Shaft with key Shaft with tap Product Weight (unpacked) 5200 g

Read more less

Specifications Type Process Input type DC current, DC voltage Input range -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA Size 1/8 DIN (96 x 48 mm) Number of digits 5 Output type Relay Contact description 2 x SPST-NO Supply voltage AC 100-240 V Accuracy +/- 0.1% full scale Sample rate 250 ms Communication port(s) None Features Colour change display Product Width (unpacked) 96 mm Product Height (unpacked) 48 mm Product Depth (unpacked) 80 mm

Read more less

Power supply voltage 100 to 240 VAC 50/60 Hz Allowable power supply voltage range 85 to 110% of the power supply voltage Power consumption 6 VA max. (at maximum load) Input type DC voltage/DC current Output type Judgment output: ContactComparative output: OUT1, OUT2 Current measurement input Measurement range 0-20: 0 to 20 mA4-20: 4 to 20 mA Indication range 0-20: -2.00 to 22.00 mA4-20: 2.00 to 22.00 mA Accuracy ±0.1% FS ±1 digit max. (23±3 ℃) Input impedance Approx. 45 Ω Voltage measurement input Measurement range 0-5: 0 to 5 V1-5: 1 to 5 V5: ±5 V10: ±10 V Indication range 0-5: -0.500 to 5.500 V1-5: 0.500 to 5.500 V5: ±5.500 V10: ±11.000 V Accuracy 0-5: ±0.1% FS ±1 digit max. (23±3 ℃)1-5: ±0.1% FS ±1 digit max. (23±3 ℃)5: ±0.1% FS ±1 digit max. (23±5 ℃)10: ±0.1% FS ±1 digit max. (23±5 ℃) Input impedance 1 MΩ min. Judgment output Contact output 2 output (SPST-NO)Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)Life expectancy: 100,000 operations min. (Electrical)/5,000,000 operations min. (Mechanical) Display Display method Negative LCD (backlit LED) 7-segment digital display Digits 5 digit (-19999 to 99999) Character height 14.2 mm (green/red) A/D conversion method Double integral method Sampling period 250 ms Comparative output response time 750 ms max. Insulation resistance Between the entire external terminal and case: 20 MΩ min. (at 500 VDC)Between inputs, outputs, and power supply: 20 MΩ min. (at 500 VDC) Dielectric strength Between the entire external terminal and case: 2,000 VAC 1 min Noise immunity ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) Vibration resistance Malfunction: 10 to 55 Hz, Single amplitude 0.35 mm, 10 sweeps of 5 min each in X, Y, and Z directions Shock resistance Malfunction: 100 m/s2, 3 times each in 3 axes 6 directions Degree of protection Front: NEMA TYPE 4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) with terminal Cover Memory protection Non-volatile memory (Number of rewrites: 100,000) Ambient temperature Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) Ambient humidity Operating: 25 to 85 % (with no condensation) Accessories Waterproof packing, Terminal Cover, Unit label Weight Approx. 200 g
