Specifications Primary brand Mitsubishi Electric Main function AC servo drive Product series / family name MELSERVO J2S series Sub-range name MR-J2 series Functions AC motion servo drive / amplifierbuilt-in positioning functionsine wave PWM control/current control method Design built-in dynamic brakebuilt-in position functionforced ventilation cooling Supply voltage (AC) 200Vac-230Vac (200V class; 220Vac / 230Vac) Type of network 3-phase input (3P) Rated active power (kW) 2000W / 2kW Protection functions overcurrent shut-offregeneration overvoltage shut-offoverload shut-off (electronic thermal)servo motor overheat protectionencoder fault protectionregeneration fault protectionundervoltage/sudden power outage protectionoverspeed protectionexcessive error protection Communication protocol RS-422RS-485 Digital inputs 1 x digital input (24Vdc; sink/source) (LSP)1 x digital input (24Vdc; sink/source) (LSN)1 x digital input (24Vdc; sink/source) (DOG)1 x digital input (24Vdc; sink/source) (SON)1 x digital input (24Vdc; sink/source) (MD0)1 x digital input (24Vdc; sink/source) (ST1)1 x digital input (24Vdc; sink/source) (ST2)1 x digital input (24Vdc; sink/source) (DI0)1 x digital input (24Vdc; sink/source) (DI1) Digital outputs 1 x digital output (rly. contact type) (ALM)1 x digital output (rly. contact type) (ZP)1 x digital output (rly. contact type) (CPO)1 x digital output (rly. contact type) (MEND)1 x digital output (rly. contact type) (RD) Analog inputs 1 x analog input (0-10Vdc) (TLA)1 x analog input (-10...+10Vdc) (VC) Dimensions H168mm x W90mm x D195mm Net Height (mm) 168 mm Net Width (mm) 90 mm Net Depth (mm) 195 mm Ambient air temperature for operation 0...+55 °C Ambient air temperature for storage -20°C...+65 °C Technical compatibility with HC-SFS seriesHC-LFS series Order code / Manufacturer SKU MR-J2S-200CP

Read more less

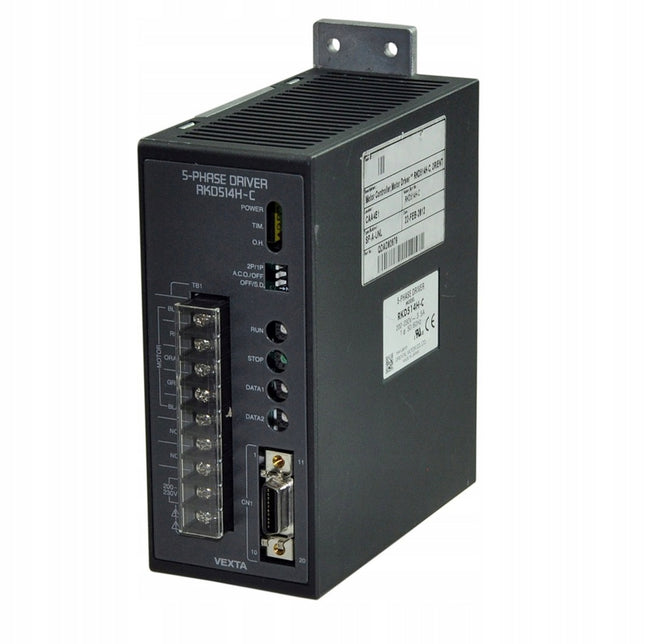

Manufacturer : VEXTA Product No. : RKD514H-A Product Type : 5 Phase Driver Shipping Weight : 3 Kg

Read more less

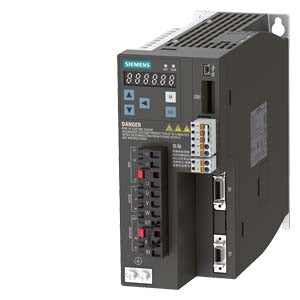

Product Article Number (Market Facing Number) 6SL3210-5FE12-0UF0 Product Description SINAMICS V90, with PROFINET Input voltage: 380-480 V 3 A -15%/+10% 9.8 A 45-66 Hz Output voltage: 0 – Input 7.8 A 0-330 Hz Motor: 2.0/2.5 kW Degree of protection: IP20 Size B, 100x180x220 (WxHxD) Product family SINAMICS V90 Servo drive Product Lifecycle (PLM) PM300:Active Product Price data

Read more less

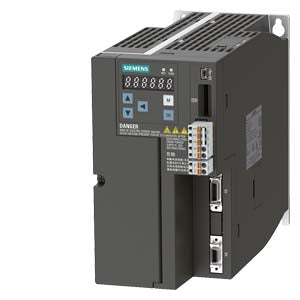

Product Article Number (Market Facing Number) 6SL3210-5FE11-0UF0 Product Description SINAMICS V90, with PROFINET Input voltage: 380-480 V 3 A -15%/+10% 3.8 A 45-66 Hz Output voltage: 0 – Input 3.0 A 0-330 Hz Motor: 0.75/1.0 kW Degree of protection: IP20 Size A, 80x180x200 (WxHxD) Product family SINAMICS V90 Servo drive Product Lifecycle (PLM) PM300:Active Product

Read more less

Part Number MLDET2310P Product Servo Driver Details Ultra compact position control typewithout the safety function Product Name MINAS E Series Servo Driver (Discontinued) Features Position control type, 50 W to 400 W, Input power supply for Driver: Voltage AC 100 V/200 V, 2500 p/r incremental encoder, Frequency response 400 Hz

Read more less

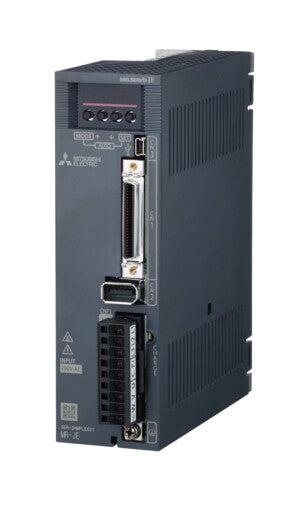

  FA-Servo-Motion: Servo Amplifier Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-JE Type MR-JE Command Interface GENERIC INTERFACE Rated Capacity (kW) 0,4 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Product Dimensions & Weight Depth (mm) 135 Weight (kg) 0,8 Width (mm) 50 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

Overview Single Axis Amplifier for linear and rotary motors SIL 3 for STO, PL-e CAT 3 Speed frequency response: 3.1kHz Advanced Safety functions SS1, SS2, SLS Feedback options Ripple compensation, vibration, suppression, etc. Technical Details Input power supply 200 V Input power phases 3-phase Max. applicable motor capacity 2 kW Number of Axes 1 Interface Analog Voltage/Pulse Train Design Revision Number A

Read more less

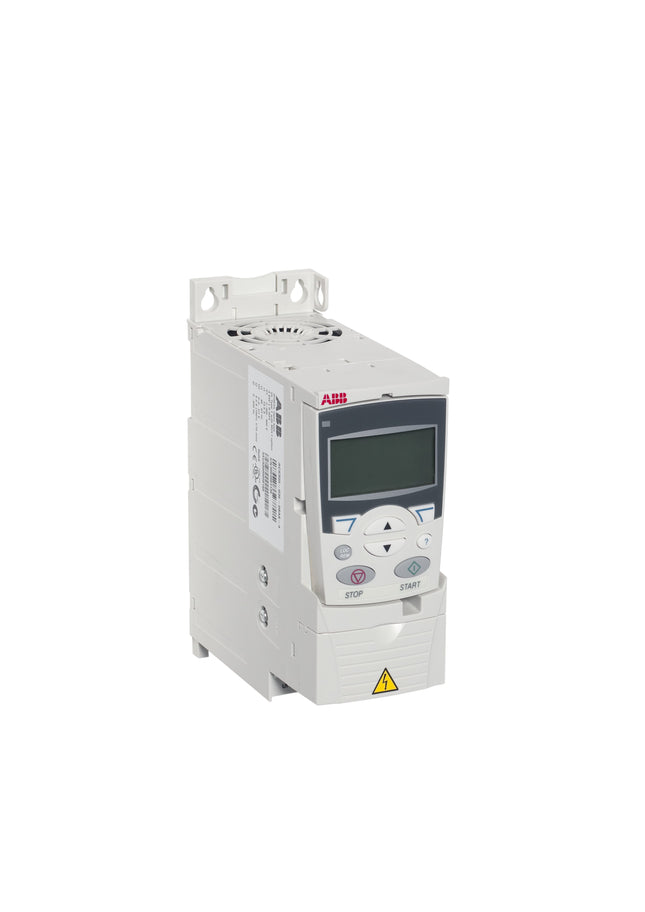

General Information Global Commercial Alias: ACS355-03E-02A4-4 Product ID: 3AUA0000058184 ABB Type Designation: ACS355-03E-02A4-4 EAN: 6438177223597 Catalog Description: LV AC machinery drive module, IEC: Pn 0.75 kW, 2.4 A (ACS355-03E-02A4-4) Long Description: The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors. Ordering Customs Tariff Number: 85044085 HS Code: 850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters Invoice Description: ACS355-03E-02A4-4 Pn 0,75kW, I2n 2,4A IP20. Made To Order: No Minimum Order Quantity: 1 piece Order Multiple: 1 piece Quote Only: No Selling Unit of Measure: piece Dimensions Product Net Weight: 1.7 kg Product Net Depth / Length: 161 mm Product Net Height: 239 mm Product Net Width: 70 mm Package Level 1 Depth / Length: 350 mm Package Level 1 Height: 130 mm Package Level 1 Width: 220 mm Package Level 1 Units: 1 carton Certificates and Declarations Declaration of Conformity - CE: 3AXD10000499279 REACH Date: 20241203 REACH Declaration: 9AKK107992A7060 REACH Information: True - contains substances > 0.1 mass percentage RoHS Date: 20230303 RoHS Information: 3AXD10000499279 RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 Technical Number of Phases: 3-phase Degree of Protection: IP20 Enclosure Type NEMA: Open Type Multiple Battery Information: No battery / cell included Frequency (f): 50/60 Hz Frame Size: R1 Input Voltage (Uin): 380 … 480 V Mounting Type: Module for cabinet building Communication Protocol: MODBUS LON DeviceNet PROFIBUS CAN EtherNet/IP PROFINET IO TCP/IP Other Bus Systems Number of Hardware Interfaces: Industrial Ethernet 0 PROFINET 0 RS-232 1 RS-422 0 RS-485 1 Serial TTY 0 USB 0 Parallel 0 Other 1 Includes: Without control unit Without optical interface With PC connection Analog Inputs: 2 Analog Outputs: 1 Number of Digital In/Outputs: 5/1 Output Current, Normal Use (In): 2.4 A Output Power, Normal Use (Pn): 0.75 kW Output Power, Light-Overload Use (PLD): 0.75 kW Power Consumption (@Pcons): 36 W Apparent Power Output: 1.7 kV·A Efficiency Level: IE2 Standby Loss: 7 W Complete Drive Module Efficiency (IEC61800-9-2): Operating PointFrequency / Current AbsoluteLoss RelativeLoss Efficiency 0 / 25 % 24 W 1.4 % 78.9 % 0 / 50 % 26 W 1.5 % 86.9 % 0 / 100 % 31 W 1.8 % 91.2 % 50 / 25 % 24 W 1.5 % 88.3 % 50 / 50 % 27 W 1.6 % 92.9 % 50 / 100 % 33 W 2.0 % 95.2 % 90 / 50 % 29 W 1.7 % 95.7 % 90 / 100 % 36 W 2.2 % 97.0 % Temperature Rating: Maximum 40 °C External Classifications and Standards ETIM 9: EC001857 - Frequency converter =< 1 kV UNSPSC: 39122001 Environmental SCIP: 89151BC5-DE13-4ADE-AA5F-5835A88F8822 Finland WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Read more less

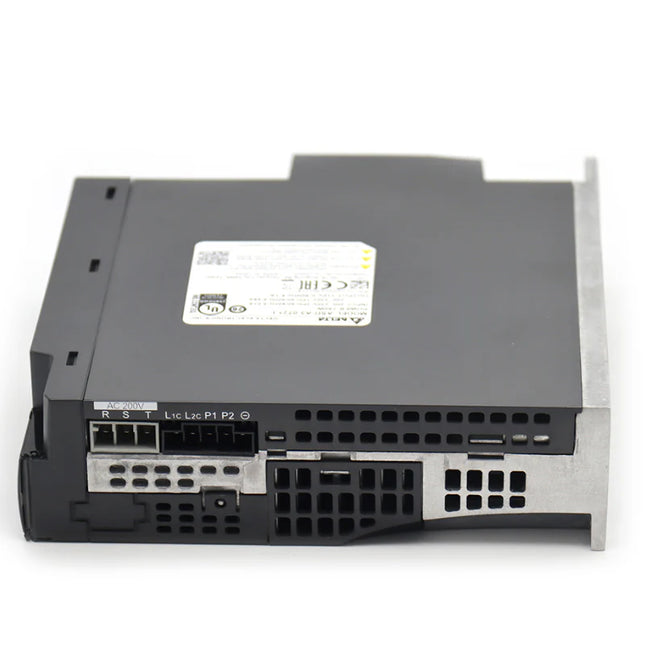

Series#: Delta Servo Drive Product Details Delta ASDA-A2 Servo Drive 400W ASD-A2-0421-F We are First Class Delta Servo Drive dealer and Delta Servo Drive distributor in China. We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on, 100% Original and new,In stock by Delta Electric Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs

Read more less

Overview Single Axis Amplifier for linear and rotary motors SIL 3 for STO, PL-e CAT 3 Speed frequency response: 3.1kHz Advanced Safety functions SS1, SS2, SLS Feedback options Ripple compensation, vibration, suppression, etc. Technical Details Input power supply 200 V Input power phases 3-phase Max. applicable motor capacity 0.4 kW Number of Axes 1 Interface Analog Voltage/Pulse Train Design Revision Number A

Read more less

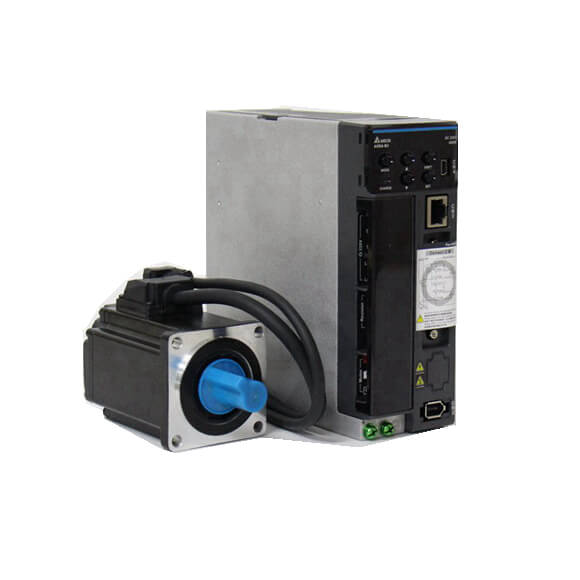

Series#: Delta Servo Motor Product Details Delta ASDA-B3 Servo Drive & Motor Set 400W ASD-B3-0421-L+ECM-B3M-20604RS1 We are First Class Delta Servomotors dealer and Delta Servomotors distributor in China. We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on, 100% Original and new,In stock by Delta Electric Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs

Read more less

The Standard Delta Servo System ASDA-B3 Series features high tolerance, stable operation and high precision motion control functions. It creates a highly efficient, user-friendly operation environment for equipment and optimizes production efficiency and output value.Offering the best motion control solutions, Delta is boosting industry momentum and working with customers to create an innovative future.
