FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-SR Power Supply (V) 200 Rated Capacity (kW) 5 Inertia MEDIUM INERTIA Rated Torque (Nm) 23,9 Maximum Torque (Nm) 71,6 Rated Speed (rpm) 2000 Maximum Speed (rpm) 3000 Inertia (kg*cm2) 109 Brake YES Shaft Type STRAIGHT SHAFT Protection Class IP67 Current Type AC Encoder Type 22-BIT Encoder Resolution (p/rev) 4194304 Product Dimensions & Weight Width (mm) 176 Height (mm) 228,9 Depth (mm) 307 Weight (kg) 26 Conformity CE COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less

Configured Specifications Type Cable Type Electromagnetic Brakes - Cable classification Encoder cable Cable Type Standard cable Cable Length 5 Specifications 3,000 r/min Motor 100 W, 200 W, 400 W, 750 W Applicable models - Peripheral device type - Compatible models - - -

Read more less

Brand NMB Power Connector Type 3-Pin Voltage 24 Volts Wattage 5 Watts Noise Level 47 Decibels

Read more less

ion range BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) Differential distance 10% max. of setting distance Reflectivity characteristic (black-white error) 10% max. of setting distance Light source Red LED (670 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting 5-turn endless adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

FA-MOD PLC: Temperature Module Series MELSEC-Q SERIES Type TEMPERATURE CONTROL Occupied I/O Points on PLC 16 Integrated Analogue Inputs 4 Input Type THERMOCOUPLE Applicable Thermocouple Type L, K, J, E, B, N, PLII, U, T, S, R Int. Current Consumption (A) 0,29 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 112 Weight (kg) 0,2 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT

Read more less

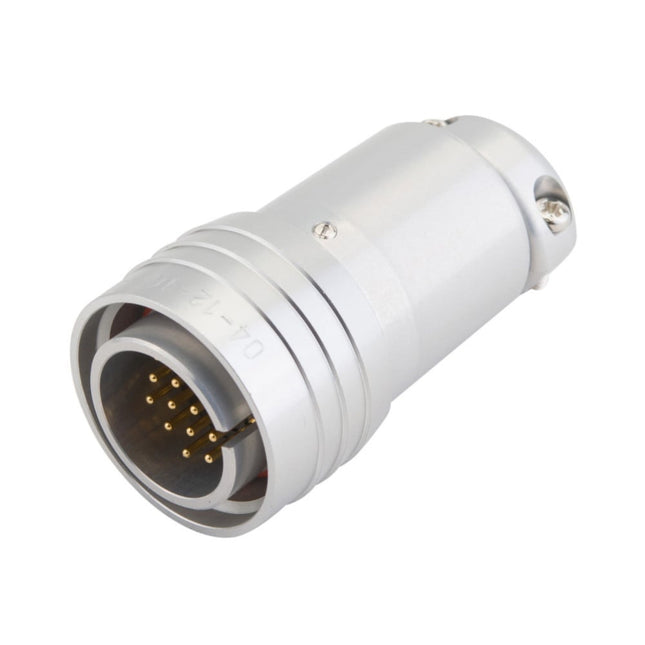

Configured Specifications Number Of Pins 19 Applicable pin/contact Female (socket) Wire connection method Solder Allowable Current 4 Connection direction Straight Allowable Voltage 400 ～ 560 Protection function (environmentally resistant) NA Application Cable to cable Connector Shape Round P/Q/R PRC04 Connector series initials P/Q/R Type Straight Plug Removal method Single-Action Notice: Voltage DC 560V Notice: Voltage AC 400V RoHS 10

Read more less

Brand EJWFASCV Color One Color Unit Count 1.0 Count Number of Items 1 Manufacturer EJWFASCV

Read more less

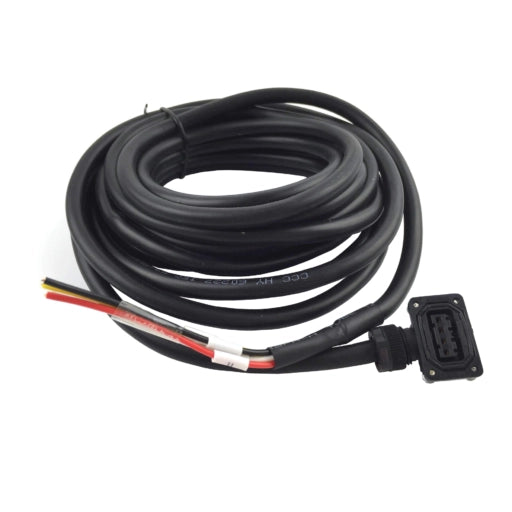

Product Dimensions & Weight Weight (kg) 0,34 Conformity CE COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT FA-Servo-Motion: Cable Type POWER CABLE Cable Length (m) 5 Flexibility STANDARD Protection Class IP65

Read more less

Shape/Structure Enclosed Limit switches ctuator Panel mount roller plunger 11 dia. x 4.7Stainless sintered alloy roller Frequency 50/60 Hz Contact form SPDT Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VACLamp load (NC): 3 A at 125 VAC/2.5 A at 250 VACLamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VACInductive load: 10 A at 125 VAC/10 A at 250 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDCLamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCInductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature Operating: -10 to 80 ℃ (with no icing) Ambient humidity 35 to 95 %

Read more less

Sensing head size M8 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 2 mm ±10% Setting distance 0 to 1.6 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 8 x 8 x 1 mm Response frequency 1500 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

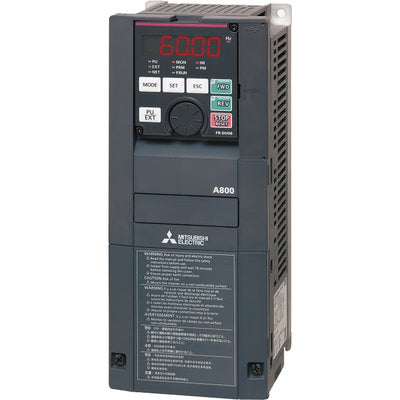

Specifications Primary brand Mitsubishi Electric Main function Variable Speed/Frequency Drive (VSD/VFD) / Inverter Product series / family name FREQROL FR-A800 series Network frequency (output) 0.2-590 Hz Functions Variable Speed/Frequency Drive (VSD/VFD) / InverterSoft-PWM controlHigh carrier frequency PWM controlPM sensorless vector controlMaximum and minimum frequency settingsMulti-speed operationAcceleration/deceleration patternThermal protectionDC injection brakingStarting frequencyJOG operationOutput stop (MRS)Stall preventionRegeneration avoidanceIncreased magnetic excitation decelerationFrequency jumpRotation displayAutomatic restart after instantaneous power failureElectronic bypass sequenceRemote settingAutomatic acceleration/decelerationRetry functionCarrier frequency selectionFast-response current limitForward/reverse rotation preventionOperation mode selectionSlip compensationDroop controlLoad torque high-speed frequency controlSpeed smoothing controlTraverseAuto tuningApplied motor selectionGain tuningRS-485 communicationPID controlPID pre-charge functionEasy dancer controlCooling fan operation selectionStop selection (deceleration stop/coasting)Power-failure deceleration stop functionStop-on-contact controlPLC functionLife diagnosisMaintenance timerCurrent average monitorMultiple ratingSpeed controlTorque controlPosition controlPre-excitationTorque limitTest run24V power supply input for control circuitSafety stop functionAnti-sway controlDC feeding
