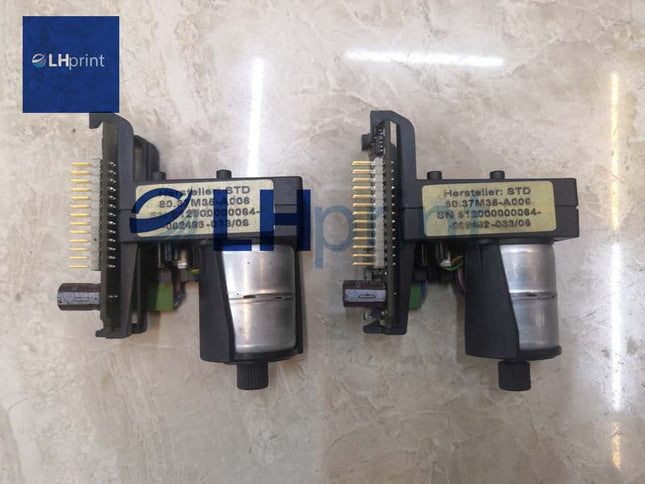

Description This is a used motor 80.37M35-A006. Test has been completed and can be used normally.For more information or if you have the same board need repair, please contact us. Man Roland partnumber:80.37M35-A006 size of packing:height: 3.0 cmlength: 5.5 cmwidth: 5.5 cm matching machinetypes:Man Roland 700 condition:original second hand (90% new) other board : D37Z312074 service: machine testing and make video show its usage before sending out Condition: Used originalWarranty: 6 monthsPayment: T/T, Western Union, Paypal, Credit Card, MonGramPacking: Hard Paper, Plywood BoxDelivery: 4-6 daysShipment: DHL, Fedex, TNT, UPS, EMS

Read more less

Colour Red Shape Round Material Polycarbonate (PC) Finish Type Powder Coated Light Source Type LED About this item ✔️ Litost 2 Tier LED Signal Tower Lamp Light with Buzzer 24 Volt DC (RED/Green) ✔️ Industrial 2 TIER Signal Warning Tower Light With Buzzer Sound Flashing LED Alarm Light DC 24Volt 10Watt (Lighting Color RED/GREEN) ✔️ Supply Volts: DC 24 Volt 50 Hz (9 -inches Length) Capacity Power-10 Watt/ LED-Bulb. Lighting Block Color - RED/GREEN (2 Layers Tower Light) With Buzzer Used in industrial and mechanical equipment or security system, is easy to install. ✔️ (A) IP Rating - IP33 (B) Sound Level-90dB (C) Light Mode - Flashing light or steady light Material: metal, plastic, electronic components ( MODEL NAME : TOWER-A17) ✔️ Working temperature - 30 Degree Celsius~70 Degree Celcius & Working Humidity -10%~90%Package Content: 1 x Tower Signal Light Warranty not applicable for this product

Read more less

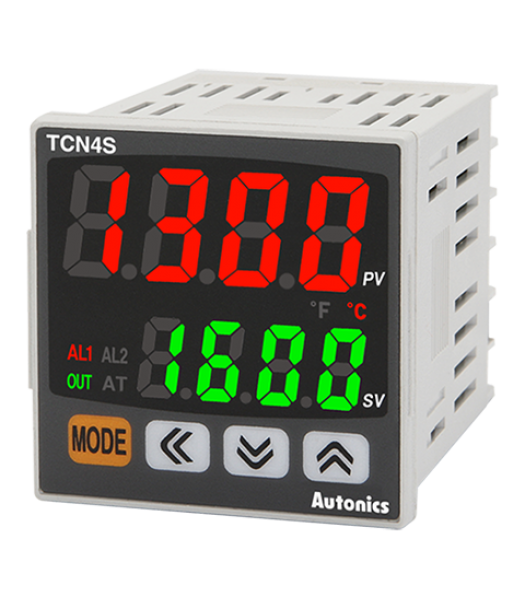

Product Description Brand Autonics Model no TCN4S-24R Size S DIN W48×H48mm Control output R:       Relay contact output + SSRP output (AC Power)   Relay contact output + SSR output (AC/DC Power) Power supply 2     24VAC 50/60Hz, 24-48 VDC   4     100-240VAC 50/60Hz Power consumption AC Power           Max. 5VA(100-240VAC 50/60Hz)   AC/DC Power     Max. 5VA(24VAC 50/60Hz), Max.3W( 24-48 VDC) Sampling period 100ms Display type  24-48 VDC Control type ON/OFF, P, PI, PD, PID Control Hysteresis 1 to 100 (0.1 to 50.0) ℃/℉ Proportional band (P) 0.1 to 999.9 ℃/℉ Mechanical Life OUT: Over 5,000,000 times, AL 1/2: Over 5,000,000 times Electrical Life OUT: Over 200,000 times (250VAC 3A resistive load)   AL 1/2: Over 300,000 times (250VAC 1A resistive load) Dielectric strength AC Power          2,000VAC 50/60Hz 1min.(between input terminal and power terminal)   AC/DC Power   1,000VAC 50/60Hz 1 min.(between input terminal and power terminal) Vibration 0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours Insulation resistance ≥ 100 MΩ (500 VDCmegger) Memory retention ≈ 10 years (non-volatile semiconductor memory type) Ambient temperature -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)

Read more less

Operating mechanism Snap action ctuator Roller lever 17.5 dia. x 6.8Metal lever, Resin rollerR26 Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit M20Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 5 N max. Release Force (RF) Standard value 0.5 N min. Pre-Travel (PT) Standard value 18 to 27 ° Movement Differential (MD) Standard value 14 ° max. Over-Travel (OT) Standard value 40 ° min. Total Travel (TT) Reference value 80 ° Direct Opening Force Standard value 20 N min. Direct Opening Travel Standard value 50 ° min.

Read more less

Type Description Select All Category Switches Accessories Manufacturer Omron Automation and Safety Series D4NS Packaging Box Part Status Active Accessory Type Operation Key For Use With/Related Products D4NS Series

Read more less

FA-MOD PLC: Digital I/O Module Series MELSEC-Q SERIES Type I/O COMBINED MODULE Power Supply (V) 12-24 Current Type DC Occupied I/O Points on PLC 32 Integrated Digital Inputs 32 Integrated Digital Outputs 32 Rated Input Voltage (VDC) 24 Rated Load Voltage (VDC) 12-24 Output Type TRANSISTOR Output Logic SINK Wiring CONNECTOR Int. Current Consumption (A) 0,13 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,137 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT

Read more less

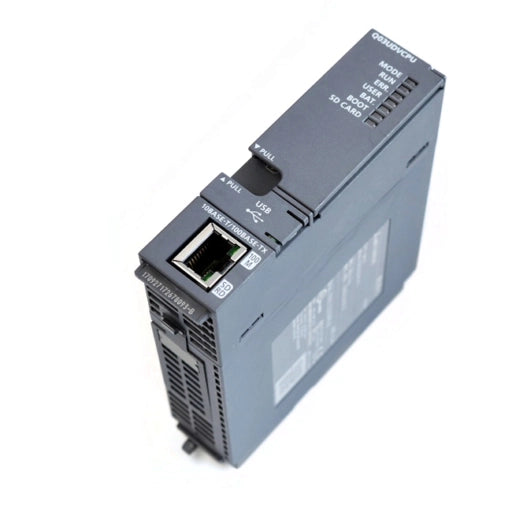

FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 30K Program Memory Unit STEPS Local I/O Points 4096 Local + Remote I/O Points 8192 Cycle Time LD (ns) 1,9 Cycle Time MOV (ns) 3,9 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,58 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 115 Weight (kg) 0,2 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT

Read more less

SIMATIC S7-200 SMART, analog I/O SM AM06, 2AI/1AO, 0..10V,0..5V, 0/4..20mA, +/-5 V, +/-2.5 V, 12 bit resolution or 4...20 mA, +/-10 V, 11 bit resolution Product lifecycle Active Product  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 13.00 x 11.30 x 7.50 cm Net weight 0.206 Kg

Read more less

PPD-P10PKN-1F-2, CKD Pressure Switch Part Number PPD-P10PKN-1F-2 Manufacturer CKD Subcategory Automation Switch

Read more less

Product Attribute Table Technical Attributes Brand Contrinex Item Proximity sensor Sensor Type Inductive Application Standard duty, analog output and small space Shape Rectangular Housing Size 8 x 8 x 59mm body Housing Material Chrome-plated brass Sensing Method Extended sensing Adjustable No Number of Wires 3 Analog Output 0-10 VDC Sensing Distance 4mm Mounting Type Semi-flush IO-Link Compatible No Operating Voltage 15-30 VDC Operating Temperature -25 to 70c Weld Field Immune No Chip Immune No IP Rating IP67 Connection 3-pin M8 quick-disconnect Includes Mounting hardware Additional Information Please purchase cable separately

Read more less

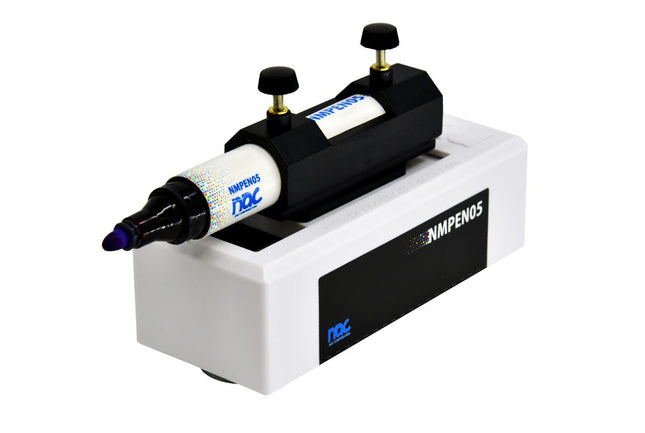

Size, Weight, Power supply Size 【Body】　　 W:51.2 × H:65 × D:124.2 (mm) Weight 【Weight】　　 約380g Power supply AC90V～AC240V(50Hz/60Hz)   Accessories 　　　　　　　　　 　　　　　　　　　　　　　　　　　　 　　　　　　　　　　　　　　　　　　 　　　　　　　　　　　　　　　　　　　　　　　 　　　　　　　 AC adapter NMPEN05-AC Mounting plate L-shaped mounting plate. It can be fixed with screws, tape, etc., and the unit can be installed with a magnet. Adjustment adapter for pens and stamps It can be used when marking with a thin pen or a stamp Connection cable Cable to connect to the tester and the production equipment.By connecting to the output terminal of the harness tester, it can be marked after inspection.

Read more less

Product Specifications Application for Industrial Machinery Frequency (MHz) 50 Hertz (HZ) Rated Voltage 220-440 Volt (V) Color Black Warranty Yes Payment Terms Cash in Advance (CID) Supply Ability 30 Per Month Delivery Time 2-7 Days Main Domestic Market All India
