DELIVERY PERIOD : 1-2 WEEKS  Series MELSEC-Q SERIES   Type OPEN COLLECTOR OUTPUT   Number of Axes 4   Int. Current Consumption (A) 0,36   Product Dimensions & Weight Width (mm) 27,4   Height (mm) 98   Depth (mm) 90   Weight (kg) 0,16

Read more less

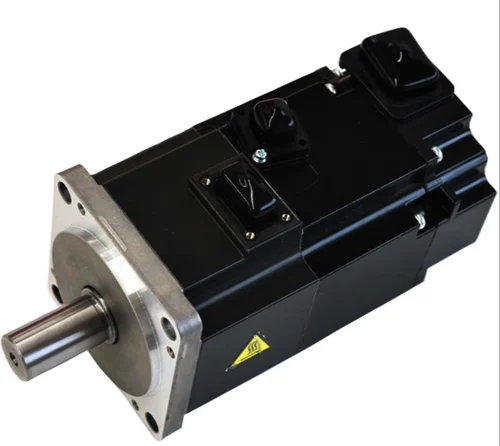

DELIVERY PERIOD : 1-2 WEEKS FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,4 Inertia LOW INERTIA Rated Torque (Nm) 1,3 Maximum Torque (Nm) 4,5 Rated Speed (rpm) 3.000 Inertia (kg*cm2) 0,371 Brake NO Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4.194.304 Maximum Speed (rpm) 6.000 Protection Class IP65 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 98,3 Weight (kg) 1,4 Width (mm) 60 Height (mm) 77,1 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

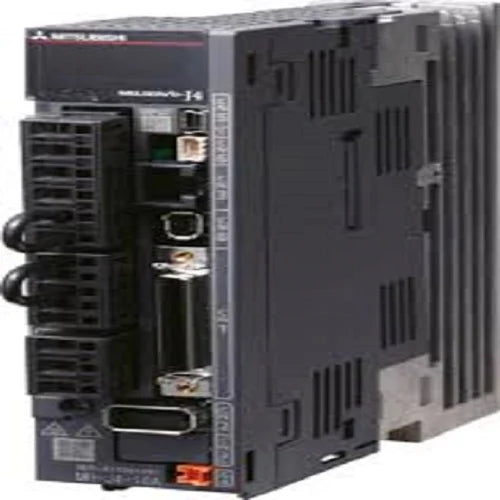

DELIVERY PERIOD : 1-2 WEEKS FA-Servo-Motion: Servo Amplifier Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-J4 Type MR-J4 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Safety Function Type STO (IEC/EN 61800-5-2) Command Interface SSCNETⅢ/H Rated Capacity (kW) 0,75 Product Dimensions & Weight Depth (mm) 185 Weight (kg) 1,4 Width (mm) 60 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

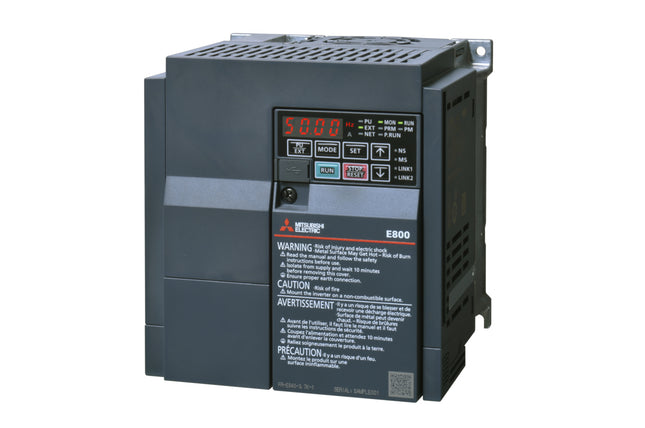

DELIVERY PERIOD : 1-2 WEEKS Series FR-E800 SERIES   Type FR-E800-ETH INVERTER   Minimum Rated Voltage (V) 380   Min. Permissible Voltage (V) 323   Maximum Rated Voltage (V) 480   Max. Permissible Voltage (V) 528   Current Type AC   Phases 3   Rated Output Current LD (A) 6,9   Rated Output Current ND (A) 6   Rated Motor Capacity LD (kW) 3   Rated Motor Capacity ND (kW) 2,2   Control Method V/F CONTROL  REAL SENSORLESS VECTOR CONTROL  PM SENSORLESS VECTOR CONTROL  MAGNETIC FLUX VECTOR CONTROL   Motor Type INDUCTION MOTOR, PM MOTOR   Brake Chopper ED (%) 100   Integrated EMC Filter NO   Safe Torque Off (STO) YES   Regenerative (4Q) NO   Integrated DC Choke NO   Display BUILT-IN   Display Type 4 DIGITS LED   PLC Function YES   Program Memory 2K   Program Memory Unit STEPS   Integrated Digital Inputs 2   Digital Outputs (Transistor) 0   Digital Outputs (Relay) 1   Integrated Analogue Inputs 2   Integrated Analogue Outputs 0   IO Type of Terminal Block SPRING CLAMP   Expandable YES   RS-485 NO   USB 1 (MINI B)   Ethernet Port 2   Built-In Network MODBUS/TCP  ETHERNET/IP  CC-LINK IE TSN  CC-LINK IE FIELD BASIC  BACNET/IP   Leakage Current (mA) 1,2   Power Loss LD (W) 89   Power Loss ND (W) 76   Standby Power Consumption (W) -   Protection Class IP20   Frequency Range (Hz) 0,2–590

Read more less

DELIVERY PERIOD : 1-2 WEEKS FA-COM PLC: Serial Com Module Series MELSEC IQ-F SERIES Type FX5 Interface RS-232 Product Dimensions & Weight Depth (mm) 11,6 (18,2) Weight (kg) 0,02 Width (mm) 38 Height (mm) 51,4 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

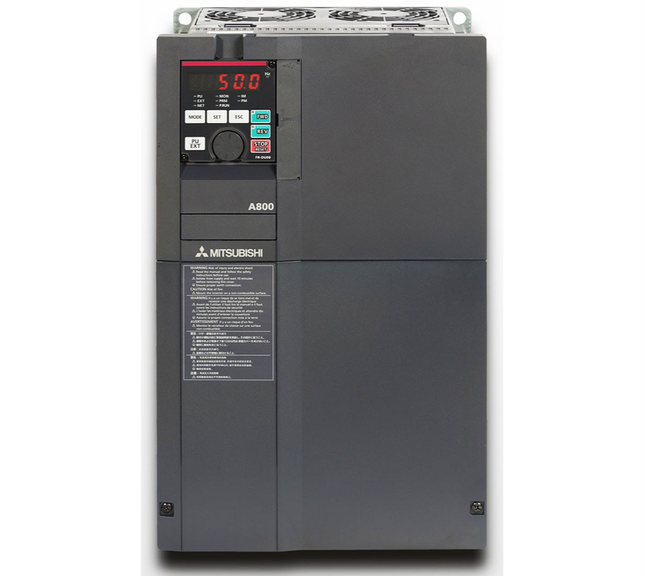

DELIVERY PERIOD : 1-2 WEEKS FA-Inverter: Inverter Series FR-A SERIES Type FR-A800-E INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 500 Max. Permissible Voltage (V) 550 Current Type AC Phases 3 Rated Output Current SLD (A) 62 Rated Output Current LD (A) 57 Rated Output Current ND (A) 44 Rated Output Current HD (A) 38 Rated Motor Capacity SLD (kW) 30 Rated Motor Capacity LD (kW) 30 Rated Motor Capacity ND (kW) 22 Rated Motor Capacity HD (kW) 18,5 Frequency Range (Hz) 0,2–590 Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter YES Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display FR-DU08 Display Type 5 DIGITS LED (12 SEGMENT) PLC Function YES Program Memory 6K Program Memory Unit STEPS Integrated Digital Inputs 12 Digital Outputs (Transistor) 5 Digital Outputs (Relay) 2 Integrated Analogue Inputs 3 Integrated Analogue Outputs 2 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 OPTIONAL USB 1+1 MINI Ethernet Port 1 Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS Leakage Current (mA) 35(DELTA) / 2(STAR) Power Loss SLD (W) 740 Power Loss LD (W) 675 Power Loss ND (W) 520 Power Loss HD (W) 450 Standby Power Consumption (W) 20 Protection Class IP20 Product Dimensions & Weight Depth (mm) 190 Weight (kg) 15 Width (mm) 250 Height (mm) 400 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

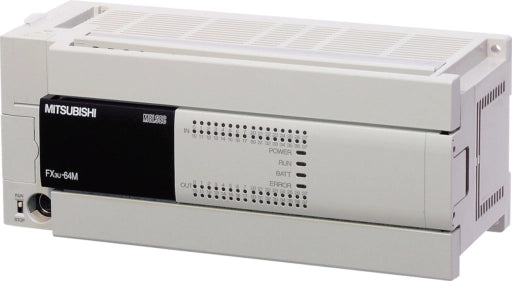

DELIVERY PERIOD : 1-2 WEEKS Mitsubishi FX3U-128MT/ESS Technical Specification PLC Discrete Input Voltage 100-240Vac Discrete Output Type Transistor Discrete Output Voltage 24Vdc I/O 64I/64O Memory Capacity - Product Or Component Type Base Unit Range Of Product FX3U

Read more less

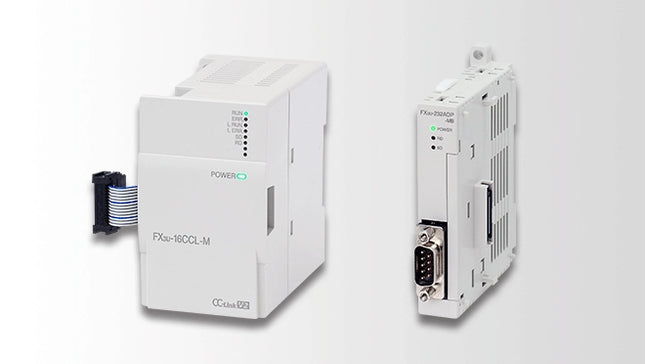

DELIVERY PERIOD : 1-2 WEEKS Merit CC-Link system master block • This is a special function block for using the FX5U/FX5UC CPU module or FX3G/FX3U/FX3GC/FX3UC PLC as a CC-Link master station.• Up to 8 remote I/O stations and up to 8 remote device stations or intelligent device stations can be connected to the master station. (Up to 4 stations when using FX3G/FX3GC PLCs)• By using the FX3U-16CCL-M type CC-Link master block and FX3U-64CCL type CC-Link interface block, a CC-Link V2 system can be configured using only the FX PLC.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module;4096 EA;1.9 ns/log. Com.;40k steps;Ethernet;USB;SD FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 40K Program Memory Unit STEPS Local I/O Points 4.096 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 1,9 Cycle Time MOV (ns) 3,9 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,58 Product Dimensions & Weight Depth (mm) 115 Weight (kg) 0,2 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module;4096 EA;1.9 ns/log. Com.;30k steps;Ethernet;USB;SD FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 30K Program Memory Unit STEPS Local I/O Points 4.096 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 1,9 Cycle Time MOV (ns) 3,9 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,58 Product Dimensions & Weight Depth (mm) 115 Weight (kg) 0,2 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module; 4096 I/O; 20 ns/com.; 30k steps; Ethernet int. FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 30K Program Memory Unit STEPS Local I/O Points 4.096 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 20 Cycle Time MOV (ns) 40 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,33 Product Dimensions & Weight Depth (mm) 89,3 Weight (kg) 0,2 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module; 1024 I/O; 60 ns/com.; 15k steps FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 15K Program Memory Unit STEPS Local I/O Points 1.024 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 60 Cycle Time MOV (ns) 120 USB 1 RS-232 1 Buffer Battery YES Int. Current Consumption (A) 0,33 Product Dimensions & Weight Depth (mm) 89,3 Weight (kg) 0,15 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less
