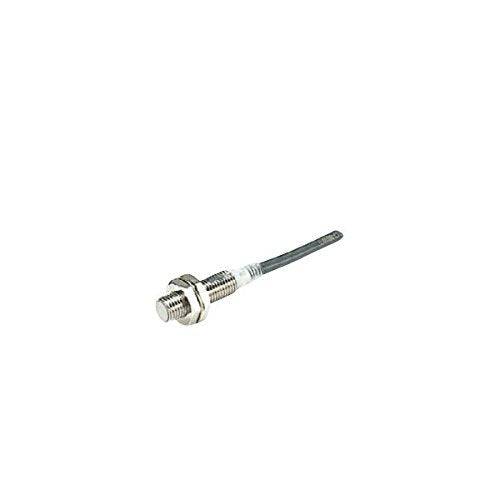

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Technology: Inductive Measuring Range - Max: 7 mm Output Type: NPN-NC Mounting Style: Panel Mount Connection Method: Pre-Cable Cable Length: 2 m Coding: D Coded Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Series: E2E Brand: Omron Automation and Safety IP Rating: IP67 Maximum Frequency: 500 Hz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EX7D2NQ E2EX7D2N Unit Weight: 192.780 g

Read more less

Colour gray Brand Omron Material Plastic Display Type LCD Manufacturer omron About this item Size: 48 x 48 mm Front panel: IP50/Rear case: IP20, Terminals: IP00 Type:- Temperature Controller Input

Read more less

Technical Details Model Number ‎E5CC-QX2ASM-800 Assembly Required ‎No Batteries Required ‎No Batteries Included ‎No tech_spec_battery_description_toys ‎No batteries required Remote Control Included? ‎No Colour ‎multi color Product Dimensions ‎29.08 x 6.88 x 29.08 cm; 0.28 g Item model number ‎E5CC-QX2ASM-800 Manufacturer recommended age ‎3 years and up Manufacturer ‎OMRON Item Weight ‎0.28 g

Read more less

Product Attribute Attribute Value Manufacturer Part Number R88M-1M75030T-S2 Brand Omron Automation Nominal Voltage 230 V ProductVideoURL https://www.youtube.com/embed/KT2Rp9DkYi8?rel=0&controls=0 Torque 2.39 N/m Speed 3000 RPM Alternate Mfr Part Number R88M1M75030TS2 Type Servo Motor Capacity 750 lb Series S1 SERIES

Read more less

Brand Name Omron Model Omron E3S-CD61 Photoelectric sensor Usage Application Industrial Model No E3S-CD61 Type Photoelectric sensor Availability In Stock

Read more less

Operating mechanism Snap action ctuator Plastic rodResin rod Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit G1/2Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 1.5 N max. Pre-Travel (PT) Standard value 15 ° max.

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches RoHS:   Illuminated: Non-Illuminated Brand: Omron Automation and Safety Product Type: Limit Switches Series: WL 1 Subcategory: Switches Part # Aliases: WLCA22NN Unit Weight: 275 g

Read more less

Categorise Incremental Shaft model Diameter 40 mm dia. Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. Current consumption 80 mA max. Resolution 200 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, B and Z Control output Output type NPN open collector Load power supply voltage 30 V max.DC Sink current 35 mA max. Residual voltage 0.4 V max. (at sink current 35 mA) Starting positional point Equipped Max. response frequency 100 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ) Starting torque 0.98 mN.m max. Moment of inertia 3 x 10-7 kg.m2 max. Shaft loading Radial: 30 NThrust: 20 N Max. permissible rotation 6000 r/min Protective circuit Output short-cut protectionPower supply reverse polarity protection Ambient temperature Operating: -10 to 70 ℃ (with no icing)Storage: -25 to 85 ℃ (with no icing) Ambient humidity Operating: 35 to 85 % (with no condensation)Storage: 35 to 85 % (with no condensation) Insulation resistance Between charged parts and the case: 20 MΩ or higher (500 VDC megger) Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions Shock resistance Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP50 Connection method Pre-wired models (Cable length: 2 m) Material Case: ABSMain Unit: AluminumShaft: SUS420J2 Accessories Instruction manual, Couplings, Hex-head spanner

Read more less

Categorise Incremental Shaft model Diameter 40 mm dia. Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. Current consumption 80 mA max. Resolution 200 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, B and Z Control output Output type NPN open collector Load power supply voltage 30 V max.DC Sink current 35 mA max. Residual voltage 0.4 V max. (at sink current 35 mA) Starting positional point Equipped Max. response frequency 100 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ) Starting torque 0.98 mN.m max. Moment of inertia 3 x 10-7 kg.m2 max. Shaft loading Radial: 30 NThrust: 20 N Max. permissible rotation 6000 r/min Protective circuit Output short-cut protectionPower supply reverse polarity protection Ambient temperature Operating: -10 to 70 ℃ (with no icing)Storage: -25 to 85 ℃ (with no icing) Ambient humidity Operating: 35 to 85 % (with no condensation)Storage: 35 to 85 % (with no condensation) Insulation resistance Between charged parts and the case: 20 MΩ or higher (500 VDC megger) Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions Shock resistance Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP50 Connection method Pre-wired models (Cable length: 2 m) Material Case: ABSMain Unit: AluminumShaft: SUS420J2 Accessories Instruction manual, Couplings, Hex-head spanner

Read more less

Sensing head size M18 Type Cylinder type (with screw), Shielded Power source AC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 4 mm Operation mode Sensing head size M18 Type Cylinder type (with screw), Shielded Power source AC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 4 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 18 x 18 x 1 mm Response frequency 25 Hz (Average value) Power supply voltage 24 to 240 VAC Operating voltage range 20 to 264 VAC Leakage current 1.7 mA max. Control output (Switching capacity) 5 to 300 mA Indicator Operation indicator (red) Operation mode NO Ambient temperature (Operating) -40 to 85 ℃ Ambient temperature (Storage) -40 to 85 ℃ Ambient humidity (Operating) 35 to 95 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Weight Package: Approx. 150 g Material Case: BrassSensing surface: Polybutylene terephthalate (PBT)Clamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual

Read more less

Coil ratings 24 VDC 25.6 mA Operating indicator LED Coil surge killer Diode Contact form SPDT Contact method Single Contact material Ag alloy Contact rated load 250 VAC 10 A (Resistive load)250 VAC 7.5 A (Inductive load (cosφ = 0.4))30 VDC 10 A (Resistive load)30 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal
