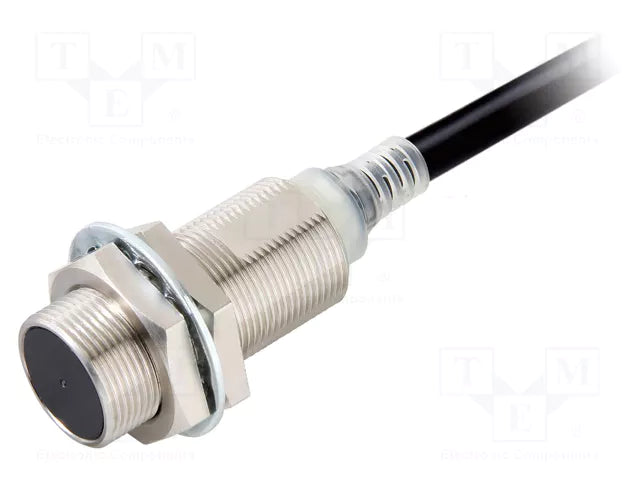

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Technology: Inductive Measuring Range - Max: 4 mm Output Type: PNP Mounting Style: Panel Mount Connection Method: Connector Connector Type: M12 Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2B Brand: Omron Automation and Safety Housing Material: Brass IP Rating: IP67 Maximum Frequency: 1 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2BM12KS04M1B2 Unit Weight: 20 g

Read more less

Product Specifications Product Attribute Attribute Value Alternate Mfr Part Number E3ZT81K2M Brand Omron Automation Connection Type 2m Cable IP Rating IP67 Light Source Infrared LED Manufacturer Part Number E3Z-T81K 2M Measurement Range 15 m Output PNP Sensing Mode Through Beam Series E3Z Series Special Features Oil Resistant Supply Voltage 12-24 VDC Type Through Beam Sensors

Read more less

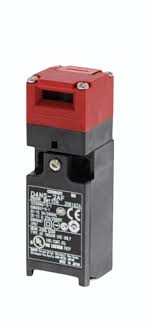

Specifications Brand Omron Accessory Type Actuator For Use With D4NS Safety Switch Material Plastic Country of Origin Japan Product details Omron D4NS Safety Door Switch, Plastic The D4NS is a labour saving and environmentally friendly safety door switch with separate actuator and make-before-break contacts (MBB). This interlock switch is ideal for use in applications with sliding, hinged and removable guards that need to be closed for operational safety. Standardised gold-clad contacts for high contact reliabilityApplicable to both standard loads and micro loadsFree of lead, cadmium, and hexavalent chrome, reducing the burden on the environmentConforms to the Machinery Directive and Low Voltage Directive

Read more less

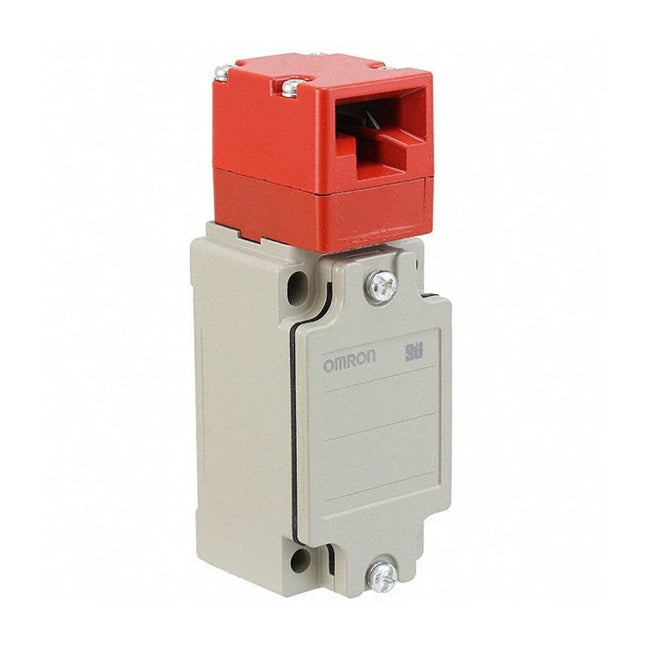

Model Name/Number D4BS-25FS Mounting Type Front-side mounting Warranty 1 YEAR Termination Screw Terminal Availability In Stock Safety Door Switch, 1-Conduit Size G1/2, 1NC/1NO (Slow-action), Front side Mounting. We are authorized channel partner, dealers, distributors, suppliers for OMRON, PANASONIC, FUJI ELECTRIC, PHOENIX CONTACT, FESTO, CANON, SUPVAN, EPSON ROBOTS and Super Stockiest, Wholesalers for MITSUBISHI ELECTRIC, PROFACE, BANNER, SCHNEIDER ELECTRIC, SIEMENS, MEANWELL, AUTONICS, DELTA, SICK Etc.

Read more less

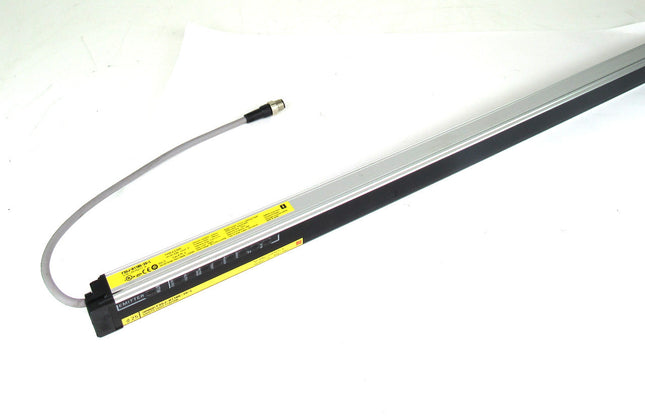

Product Description Omron F3SJ-1185-25-L Safety Light Curtain 46.65" Emitter Detection Capability: 25mm Protective Height: 1185mm Operating Range: 0.2-7m 24VDC Rated Current: 72mA OSSD Rating: 200mA Response Time: 15ms Degree of Protection: IP65

Read more less

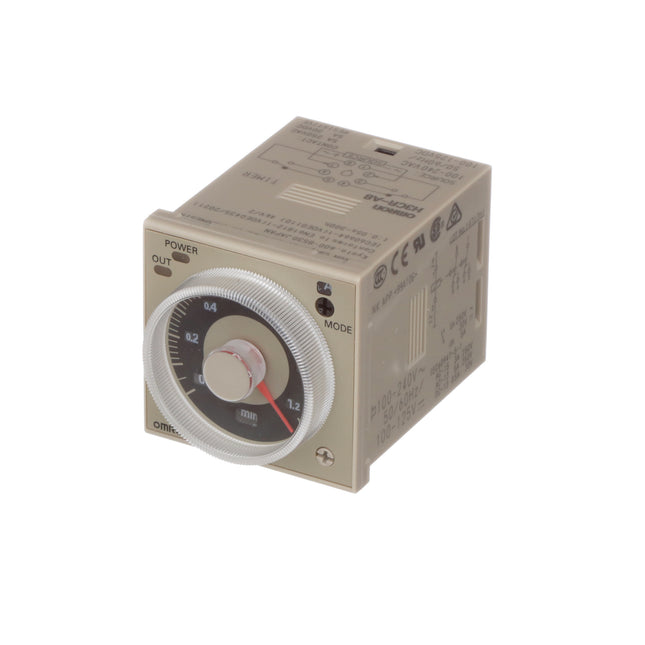

ated power supply voltage 100 to 240 VAC 50/60 Hz100 to 125 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) Allowable voltage variable range 85% to 110% of rated voltage Power consumption Relay ON: Approx. 2 VA (at 240 VAC 60 Hz)/Relay OFF: Approx. 1.3 VA (at 240 VAC 60 Hz)Relay ON: Approx. 1.6 W (at 240 VAC 60 Hz)/Relay OFF: Approx. 1.1 W (at 240 VAC 60 Hz) Reset voltage 10% max. of rated supply voltage Number of time ranges 18 Operation mode ON delay, Flicker OFF start, Flicker ON start, Interval, One shot output Control output (Type) Time-limit: DPDT Control output (Contact output) Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC/0.15 A at 125 VDCInductive load (Reference value): 2 A at 250 VAC (cosφ=0.4)/3 A at 30 VDC (L/R=7 ms)Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) Operating resetting Time-limit operation/Self-reset Ambient temperature range Operating: -10 to 55 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing) Ambient humidity range Operating: 35 to 85 % Accuracy of operating time ±0.2% FS max.±0.2% ±10 ms in a range of 1.2 s and 3 s Setting error ±5% FS ±50 ms max. Reset time 0.1 s max. Influence of voltage ±0.2% FS max.±0.2% ±10 ms in a range of 1.2 s and 3 s Influence of temperature ±1% FS max. (±1% ±10 ms in a range of 1.2 s and 3 s) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 minBetween control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2,000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min Impulse withstand voltage Between power terminals: 5 kVBetween current carrying terminals and exposed non-current carrying metal parts: 5 kV Noise immunity ±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) Static immunity Mulfunction: 8 kV, Destruction: 15 kV Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min Shock resistance Destruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions Life expectancy (relay output) Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h)Mechanical: 20 million operations min. (under no load at 1,800 operations/h) Degree of protection Panel surface: IP40Terminals: IP00 Connecting method 8-pin round socket Case color Munsell 5Y7/1 Weight Approx. 90 g Accessories Instruction manual, Compliance information sheet Applicable socket P2CF-08/ P2CF-08-E/ PF085A/ P3G-08/ PL08/ PL08-Q/ PLE08-0

Read more less

Rated power supply voltage 24 VDC If power supply incorporates a single-phase full-wave rectifier. Allowable voltage variable range 85 to 110% of the power supply voltage Power consumption Relay ON: Approx. 1.1 W (at 24 VDC)/Relay OFF: Approx. 0.1 W (at 24 VDC) Reset voltage 10% max. of rated supply voltage Number of time ranges 4 Operation mode ON delay, Interval, Flicker OFF start, Flicker ON start Control output (Type) Time-limit: DPDT Control output (Contact output) Resistive load: 250 VAC 5 A (cosφ=1)Minimum applicable load: 1 mA at 5 VDC (failure level: P) Ambient temperature range Operating: -10 to 50 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing) Ambient humidity range Operating: 35 to 85 % Accuracy of operating time ±1% FS max. (±1% ±10 ms in a range of 1 s) Setting error ±10% FS ±50 ms max. Reset time 0.1 s max. (including halfway reset) Influence of voltage ±2% FS max. Influence of temperature ±2% FS max. Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded)Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2,000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min Impulse withstand voltage Between power terminals: 1 kVBetween current carrying terminals and exposed non-current carrying metal parts: 1.5 kV Noise immunity ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) Static immunity Mulfunction: 4 kV, Destruction: 8 kV Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hourMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min Shock resistance Destruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions Life expectancy (relay output) Electrical: 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h, Room temperature)Mechanical: 10 million operations min. (under no load at 1,800 operations/h) Degree of protection IP40 Connecting method 8-pin round socket Case color Beige Weight Approx. 50 g Applicable socket PYFZ-08/ PYFZ-08-E/ PYF08M/ PY08/ PY08-02

Read more less

Configured Specifications Type General purpose counter Display method LCD Display Digits 7 digits Count input (CH = N) 1 Mounting Method Panel Panel cut dimensions [Other] Other Power Supply Voltage Dedicated to DC Output NA Prescale NA Representative Standard CE / UL / CSA Dimension vertical 24 Dimension width 48 Dimension depth 55.3 Classification Time Counter Product Type No backlight / No reset key MAX input frequency (MAX counting speed) (Hz) - Power supply voltage details 3V lithium battery Computing Method Addition Reset function External Reset Protective Structure IP66 Color Light Gray (5Y7/1) Display content (code) 0.0h～999999.9h/0.0h～3999d23.9h Input method (logic) Voltage Input（AC/DC24～240V） Display method Digital Panel cut dimensions 45×22.2mm - - Product Description New at MISUMI? Get upto ₹10,000 Discount* on Your First OrderSmall economic counter that is easier to see and easier to use.[Features]·Compact economy counter with improved visibility and ease of use· Realizes large display with 8.6 mm character height. The counter can count up to 8 digits·Series of backlit types with an emphasis on visibility·With a key protect switch to prevent erroneous operation of the reset key·In addition to the conventional light gray case color, a black type has been added to the series· Front part compatible with NEMA4. The main body can be reused by replacing the battery·Adopted finger protection structure compliant with VDE0106 Prat100・ Obtained safety standards UL and CSA·EN61010-1 Contamination Degree 2 / Overvoltage Category III compliant, EMC standard (EN61326-1) compliant

Read more less

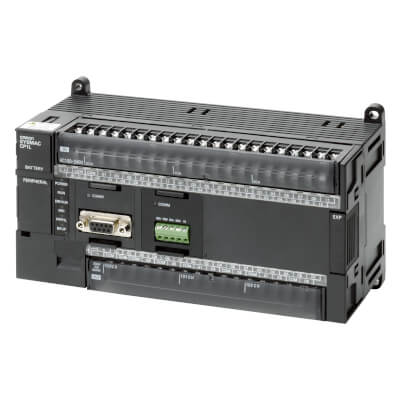

Specifications Supply voltage type DC Number of digital inputs 36 Input type PNP/NPN Number of digital outputs 24 Output type PNP Program capacity 10 K steps Data memory capacity 32 K words Logic execution time 0.55 µs Communication port(s) USB Number of Ethernet ports 0 Number of USB ports 1 Number of RS-232 ports 0 Number of RS-485 ports 0 Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485 Number of encoder input channels 4 Max. encoder input frequency 100 kHz Max. number of PTP axes 2 Max. pulse output frequency 100 kHz Function Block programming Battery-free memory backup Real-time clock Analogue option boards Max. number of analogue I/O channels 25 Max. number of local I/O points 180 Max. number of expansion units 3 Built-in auxiliary 24 VDC output 0 mA Operating temperature range 0-55 °C Product Height (unpacked) 90 mm Product Width (unpacked) 195 mm Product Depth (unpacked) 85 mm Product Weight (unpacked) 680 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: NFC/RFID Tags & Transponders Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS:   Mounting Style: Screw Package/Case: Non-standard Brand: Omron Automation and Safety Product Type: NFC/RFID Tags & Transponders 1 Subcategory: Wireless & RF Integrated Circuits Type: Industrial RFID Part # Aliases: V600D23P66N Unit Weight: Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: NFC/RFID Tags & Transponders Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS:   Mounting Style: Screw Package/Case: Non-standard Brand: Omron Automation and Safety Product Type: NFC/RFID Tags & Transponders 1 Subcategory: Wireless & RF Integrated Circuits Type: Industrial RFID Part # Aliases: V600D23P66N Unit Weight: 13.213 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Tactile Switches RoHS:   Illuminated: Non-Illuminated Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 4.3 mm Actuator: Round Switch Function: OFF - (ON) Operating Force: 1.3 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Contact Form: SPST Termination Style: Solder Pin Color: White Length: 12 mm Width: 12 mm Height: 3.5 mm Series: B3F Life: 3000000 Cycle Brand: Omron Electronics Contact Plating: Silver Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Tactile Switches 500 Subcategory: Switches Part # Aliases: B3F4000 B3F-4000-BY-OMZ B3F4000BYOMZ Unit Weight: 850 mg

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:   REACH - SVHC: Brand: Omron Automation and Safety Product Type: Photoelectric Sensors Series: E3S 1 Subcategory: Sensors Part # Aliases: E3SLS10XB4 Unit Weight: 283.788 g
